Hydraulics & Pneumatics Pneumatic Valves

Ross W7077C6331 Double Solenoid Control Valve With SUB-Base

Name: ROSS W7077C6331 DOUBLE SOLENOID CONTROL VALVE WITH SUB-BASE
SKU: 1082316
Availability: LimitedAvailability

ross-W7077C6331-double-solenoid-control-valve-with-sub-base-(new)

ross-W7077C6331-double-solenoid-control-valve-with-sub-base-(new)-1

ross-W7077C6331-double-solenoid-control-valve-with-sub-base-(new)-2

ross-W7077C6331-double-solenoid-control-valve-with-sub-base-(new)-3

신제품

재고 있음1 단위즉시 배송 가능

Double Solenoid Control Valve

The Ross W7077C6331 W70 Series valve is a 5/3-way, double solenoid valve with G3/4 port size, 24 V DC actuation, and cast aluminum body, designed for pneumatic air systems.

제조업체

ROSS

SKU

1082316

카테고리

Pneumatic Valves

상태

신제품

24v 5/3 Control dc Directional Double G3/4 Industrial Pneumatic Pneumatics Port Ross Series solenoid Sub-Base Valve W70 W7077C6331 Way

방대한 재고

글로벌 배송

전문 지원

품질 보장

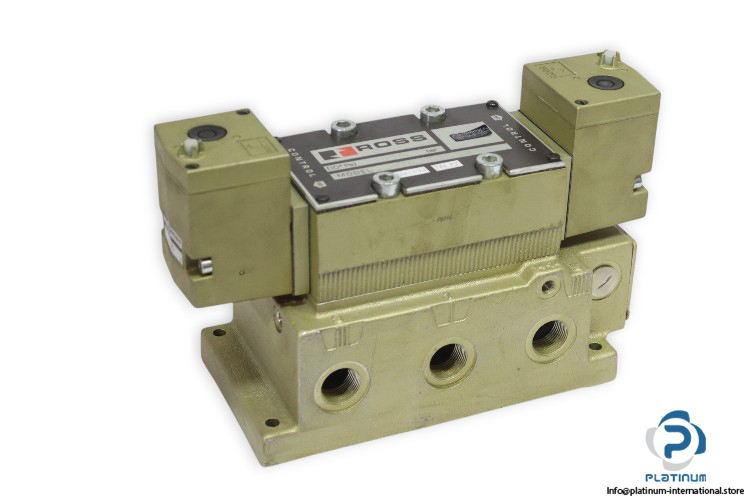

Ross W7077C6331 Double Solenoid Control Valve

The Ross W7077C6331 from the W70 Series is a high-performance double solenoid control valve with sub-base design. It is engineered for reliable operation in pneumatic applications, providing precise directional control for industrial air systems. With durable cast aluminum construction, stainless steel internals, and Buna-N seals, it ensures long-lasting service in demanding environments.

Manufacturer: Ross

Type: Double Solenoid Control Valve with Sub-Base

Model: W7077C6331

Series: W70

Flow Media	Filtered air
Type of Actuation	Electrically
Function	5/3-way, Double Solenoid
Default Position	Normally Closed
Operating Pressure	1 to 10 bar
Voltage	24 V DC
Power	14 VA
Port Size	G3/4
Ambient Temperature	4 to 50°C
Media Temperature	4 to 80°C
Valve Body Material	Cast Aluminum
Poppet/Spool Material	Stainless Steel
Seal Material	Buna-N
Dimensions	99 x 306 x 101 mm
