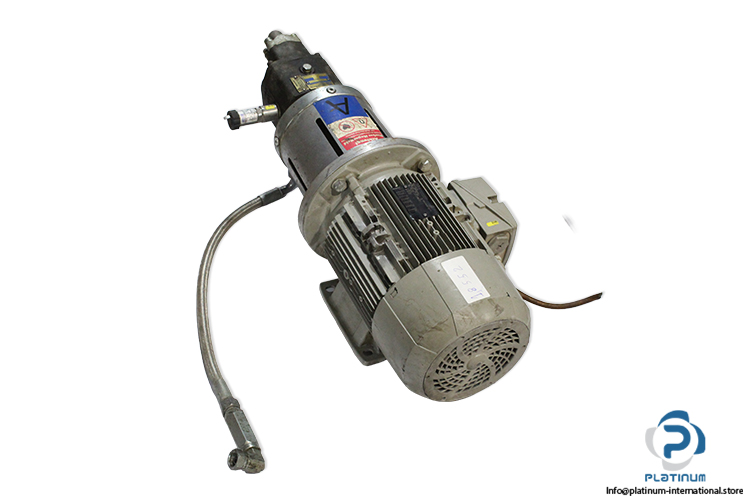

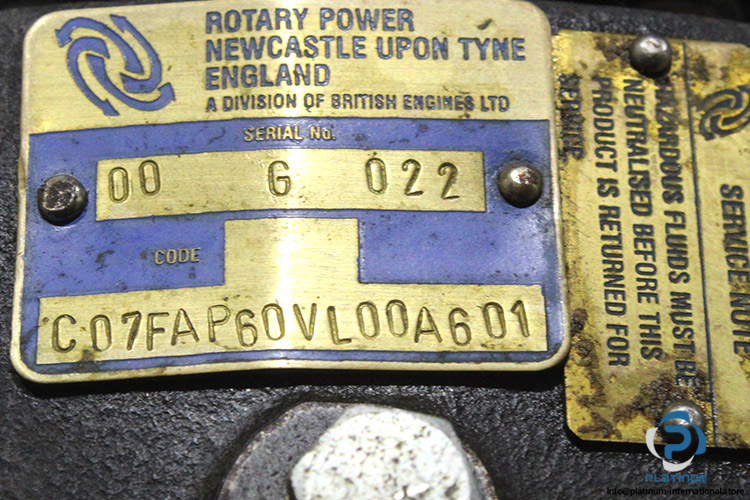

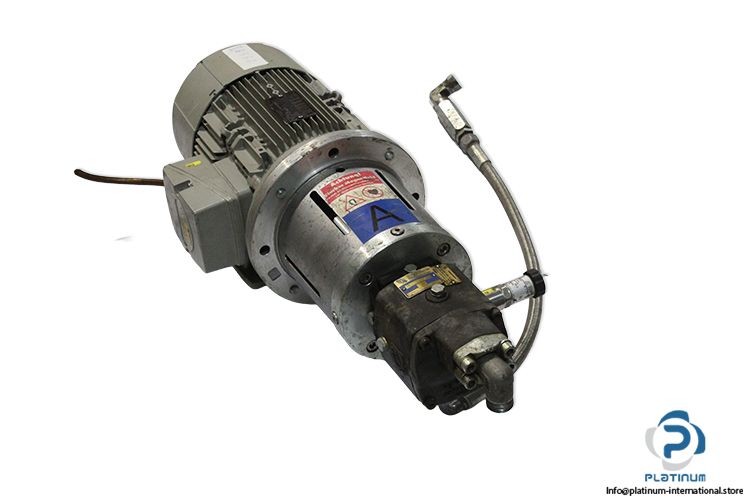

Rotary Power C07FAP60VL00A601 Metering Pump
Manufacturer: Rotary Power
Type: Metering Pump
Model: C07FAP60VL00A601
SERIAL No. 00 G 022
RANGE: C
Geometric Displacement: 11.5 cc/rev
MAX SPEED: 1800 rev/min
Max. Outlet Pressure TDI: 210 bar
Max. Outlet Pressure MDI, Polyol: 250 bar
Min. Outlet Pressure Above Inlet: 2 bar
Max Inlet Pressure: 20 bar
Min. Speed: 200 rpm
Max. Temperature: 80 °C
Optimum Temperature: 10 / 50 °C

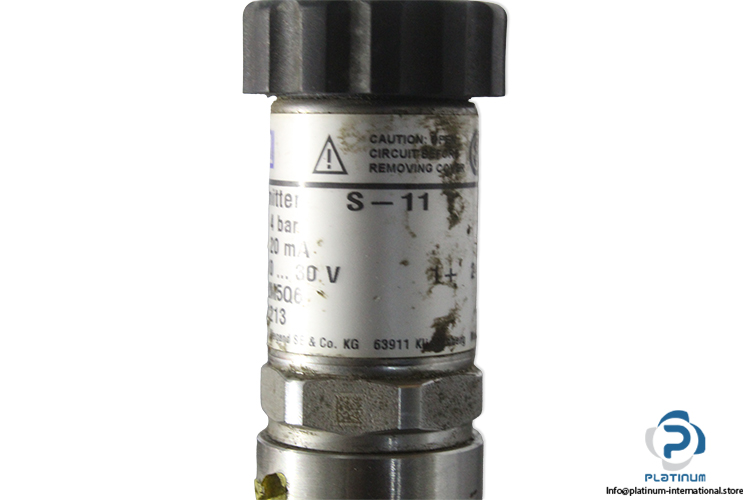

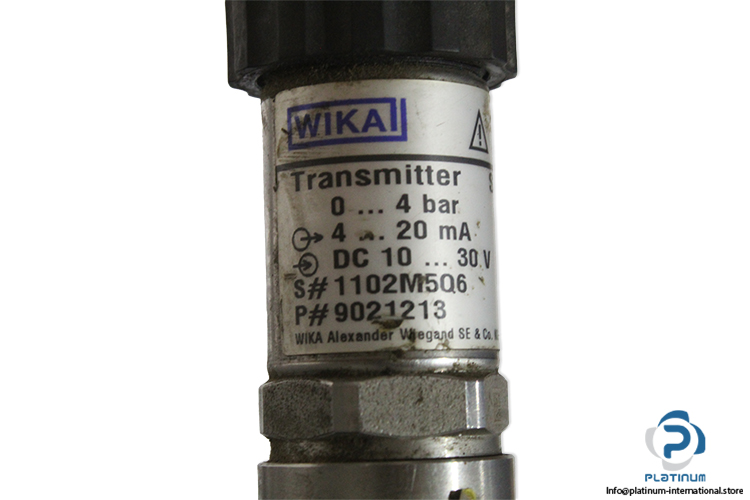

Attached with : WIKA S-11 PRESSURE TRANSMITTER
Manufacturer: Wika
Type: Pressure Transmitter
Model: S-11
Art No.: 9021213
Serial No.: 1102M5Q6
Bearing
DE 6306-2ZC3
NE 6306-2ZC3
EC/EN 60034 standard
At 50 Hz
At 60 Hz
Technical Information:
| Measuring Range | 0 to 4 bar |
| Output Signal | 4 to 20 mA |
| Supply Voltage | 10 to 30 V DC |
| Protection Class | IP65 |

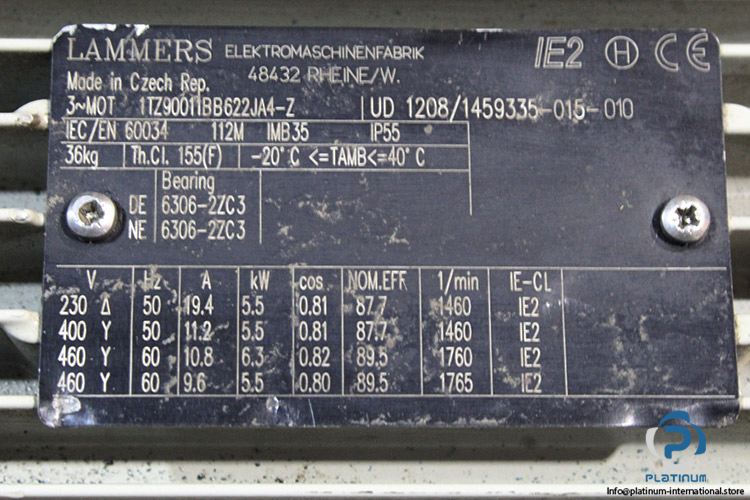

| Stainless steel Attached with | Lammers 1TZ90011BB622JA4-Z three-phase induction motor |
| Part No. | ud 1208/1459335-015-010 |
| CODE | 112M IMB35 |
| Voltage ¢ Star | 400 V AC |
| ¢ Delta | 230 V AC |
| Current ¢ Star | 11.2 A |
| ¢ Delta | 19.4 A |
| Power | 5.5 kW |
| Speed | 1460 1/min |
| Power factor | 0.81 |
| Voltage ¢ Star | 460 V AC |
| Current | 10.8 / 9.6 A |
| Power | 6.3 / 5.5 kW |
| Speed | 1760 / 1765 r/min |
| Power factor | 0.82 / 0.80 |
| Temperature | -20 / 40 °C |
| Thermal Class | F |
| Protection Class | IP55 |
| Condition | used |
