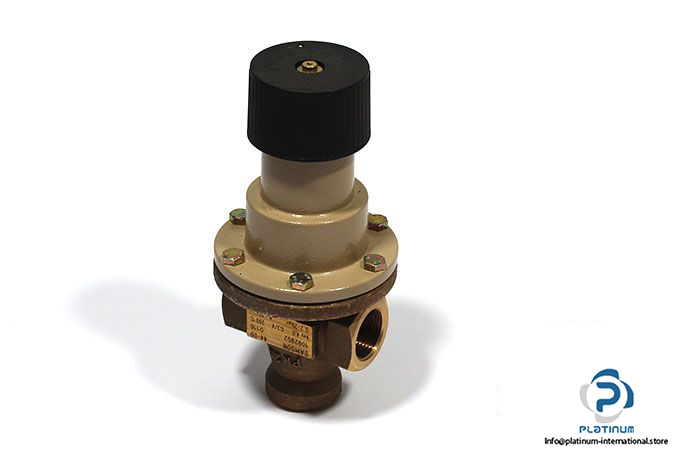

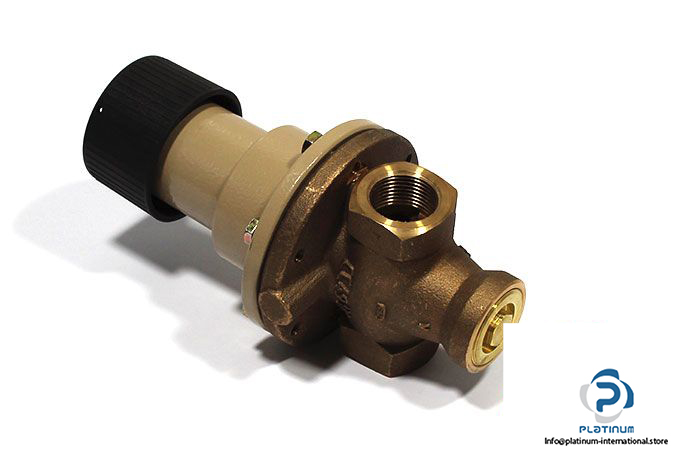

Samson 44-0B Steam Pressure Reducing Valve
Samson 44-0B Steam Pressure Reducing Valve
The **Samson 44-0B Steam Pressure Reducing Valve** is designed for precise steam pressure regulation in industrial applications. This valve closes when downstream pressure rises, ensuring stable pressure control. It features a stainless steel body, making it durable and resistant to harsh environments.

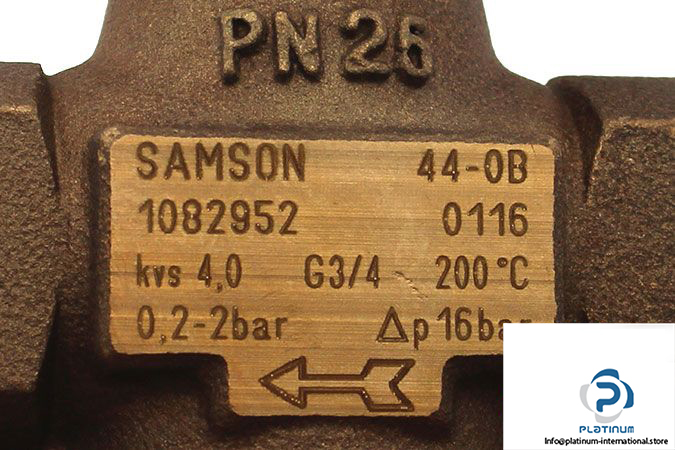

Manufacturer: Samson
Type: Steam Pressure Reducing Valve
Model: 44-0B
Part No.: 1082952

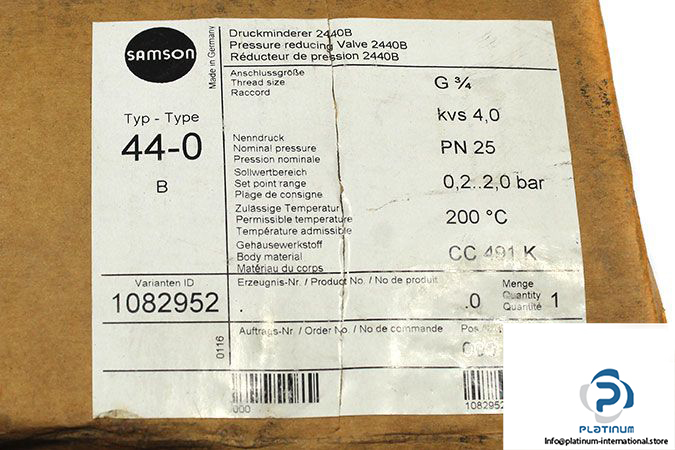

Technical Data:
- Application: Valve closes when the downstream pressure rises
- Usage: Pressure control
- Max. Pressure: 16 bar
- Set Point Range: 0.2 / 2 bar
- Pressure Rating: PN 25
- Medium: Steam
- KVS: 4
- Thread Size: G¾
- Max. Permissible Differential Pressure: 16 bar
- Max. Permissible Ambient Temperature: 60 °C
- Medium Temperature: -20 / 200 °C
- Connection Body Material: Stainless Steel
