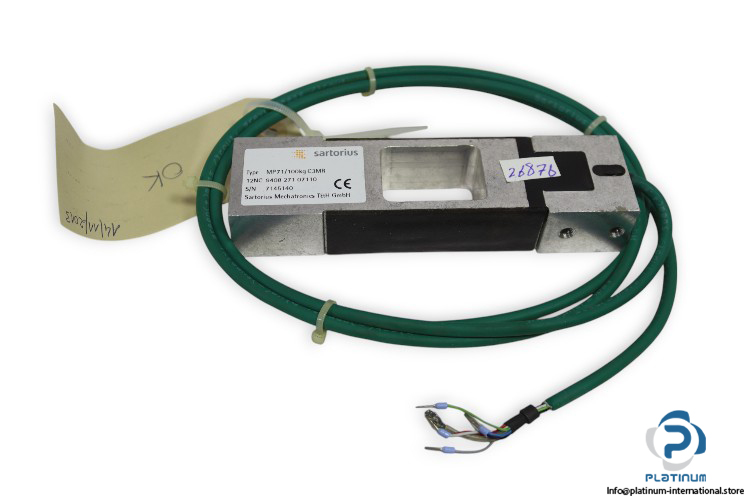

SARTORIUS MP71/100KG C3MR SINGLE POINT LOAD CELL
The Sartorius MP71/100KG C3MR is a high-precision single point load cell designed for demanding industrial weighing applications. Built with robust aluminium construction and IP67 protection, it offers superior performance and reliability in harsh environments.
Manufacturer: SARTORIUS
Type: Single Point Load Cell

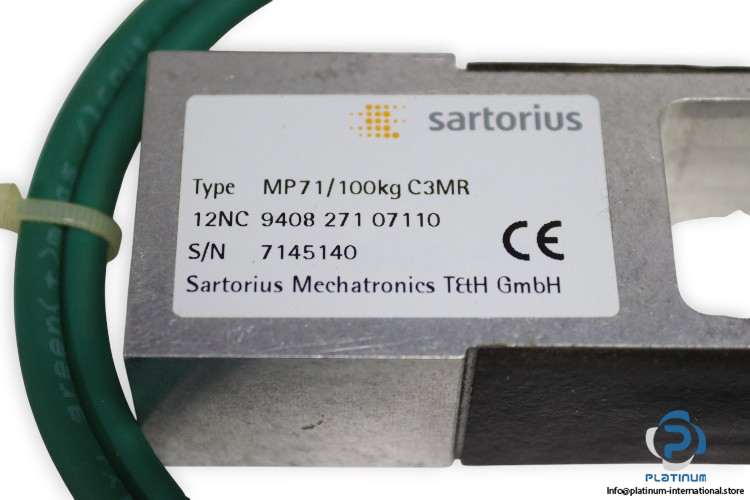

Model: MP71/100KG C3MR
Part No.: 12NC 9408 271 07110
COMAS Part No.: 0565.213.071
Serial No.: 7145140
Nominal Deflection:
0.56 mm (Emax = 5 kg)
0.46 mm (Emax = 10 kg)
0.39 mm (Emax = 20 kg)
0.38 mm (Emax = 30 kg)
0.37 mm (Emax = 50 kg)
0.39 mm (Emax = 100 kg)
0.48 mm (Emax = 200 kg)
| Accuracy Class (Combined Error) | 0.020 % Cn |
| Maximum Capacity (Emax) | 100 kg |
| Maximum Usable Load (Eu) | 150 % Emax |
| Destructive Load (Ed) | 300 % Emax |
| Safe Side Load (Elq) | 100 % Emax |
| Input Impedance (RLC) | 413 ± 20 ohm |
| Output Impedance (RO) | 350 ± 25 ohm |
| Insulation Impedance (RIS) | 5 Gohm (at 100V DC) |
| Recommended Supply Voltage | 5 / 15 V |
| Nominal Ambient Temperature Range | -10 / +40 °C |
| Cable Length | 1.5 m (other lengths optional) |
| Cable Type | 6 conductor TPE cable (AWG 26), shield grounded (optional: shield floating) |
| Sensor Material | Aluminium |
| Protection Class | IP67 (IEC 529) |
