Schmalz Saob 60X30 Suction CUP
중고
재고 있음1 단위즉시 배송 가능
Suction Cup
The SCHMALZ SAOB 60X30 suction cup, made of NBR rubber, offers high suction and lateral force with G1/4-IG connection, ensuring reliable gripping for industrial vacuum handling applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

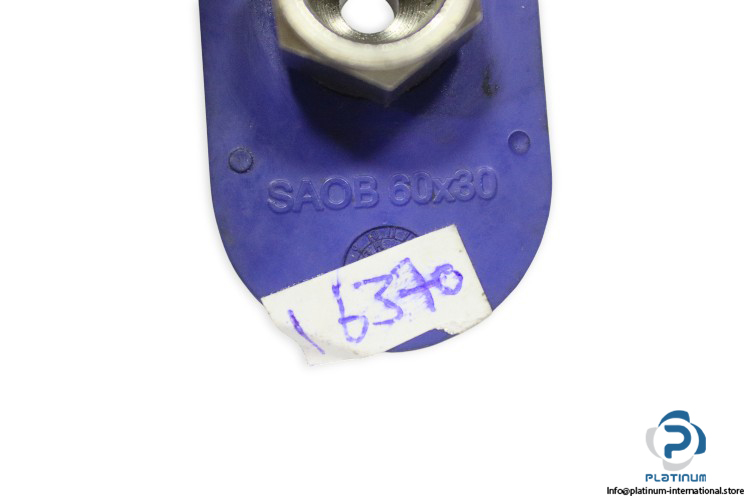

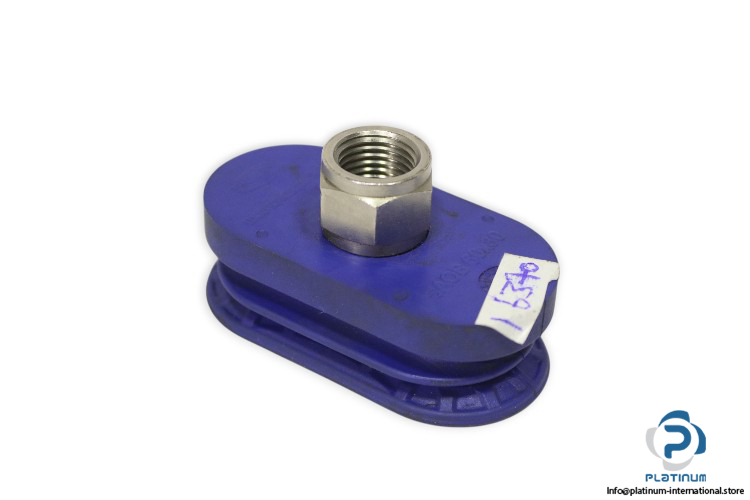

SCHMALZ SAOB 60X30 Suction Cup
The SCHMALZ SAOB 60X30 Suction Cup is engineered for precise and reliable handling of flat or slightly curved workpieces. Made from high-quality nitrile rubber (NBR), it offers strong holding force, excellent oil resistance, and long service life for industrial vacuum systems.
Manufacturer: SCHMALZ
Type: Suction Cup
Model: SAOB 60X30
Family: SAOB
| Suction Cup Material | Nitrile Rubber (NBR) |
| Dimensions (LxB) | 60 x 30 mm |
| Suction Force (-600 mbar) | 38 N |
| Pull-off Force | 69.5 N |
| Lateral Force | 72.5 N |
| Lateral Force (Oily Surface) | 41.7 N |
| Connection | G1/4-IG |
| Number of Folds | 1.5 |
| Workpiece Radius Min. (Convex) | 18 mm |
| Hose Inner Diameter (Recommended) | 4 mm |
| Dimension (LxW) | 60 x 30 mm |
| Suction Cup Material Thread | M10-M |
| Material Hardness [Shore A] | 60 Shore A |
