Schmersal SHGV/L01/201 Trapped KEY System
중고
재고 있음2 단위즉시 배송 가능
Trapped Key System
A mechanical safety interlocking solution designed to prevent unauthorized access and ensure safe machine operation in compliance with international industrial safety standards.
신제품
재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장

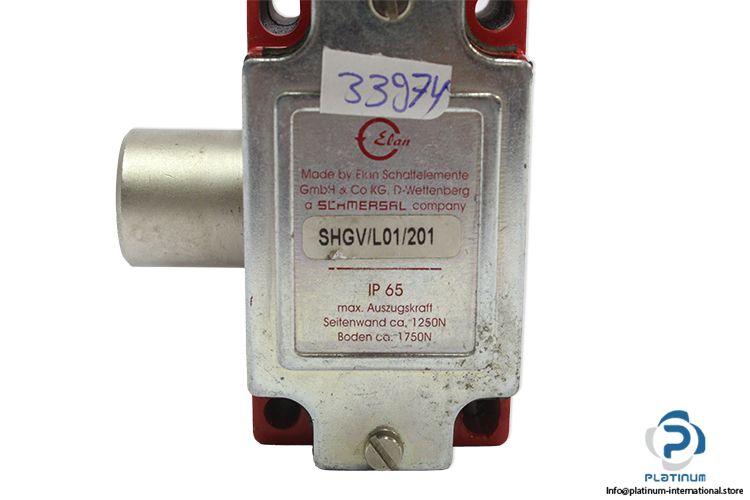

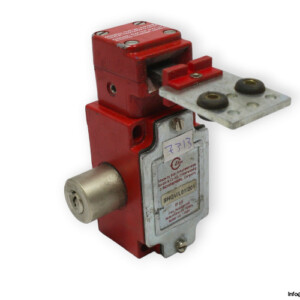

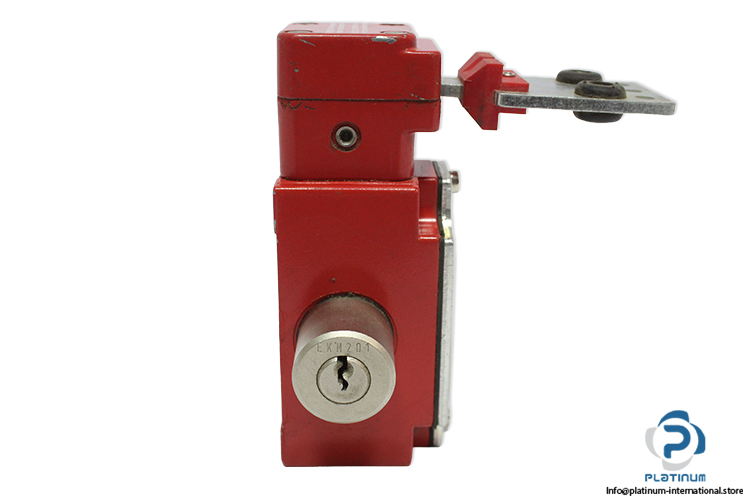

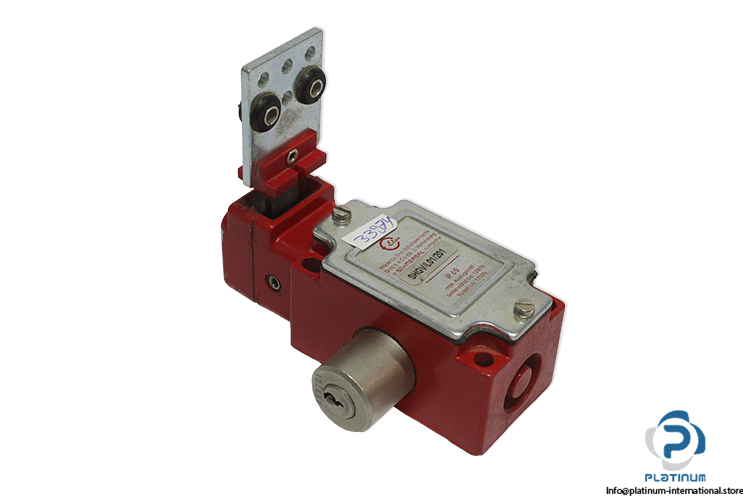

Schmersal ELAN SHGV/L01/201 Trapped Key System
A robust trapped key safety system designed to ensure controlled access and secure machine operation in industrial safety applications. This system is ideal for safeguarding hazardous areas and enforcing safe sequences in accordance with international machine safety standards. Manufacturer: Schmersal ELAN
Type: Trapped Key System
Model: SHGV/L01/201
Series: SHGV
Number Of Keys: 1
| Standards | IEC 60947-5-1, ISO 13849-1, ISO 14119 |
| Enclosure / Cover | Aluminium / Chromated Steel |
| Actuator And Locking Bolt | Galvanised Steel / Zinc Die-Cast |
| Coding Level According To ISO 14119 | Low |
| Protection Class | IP65 |
| Ambient Temperature | ˆ’25 °C / +70 °C |
| Actuating Speed | 0.2 m/s |
| Max Force, Side Wall | 1,250 N |
| Max Force, Base | 1,750 N |
| Latching Force | 5 N |
| Degree Of Protection | IP65 |
