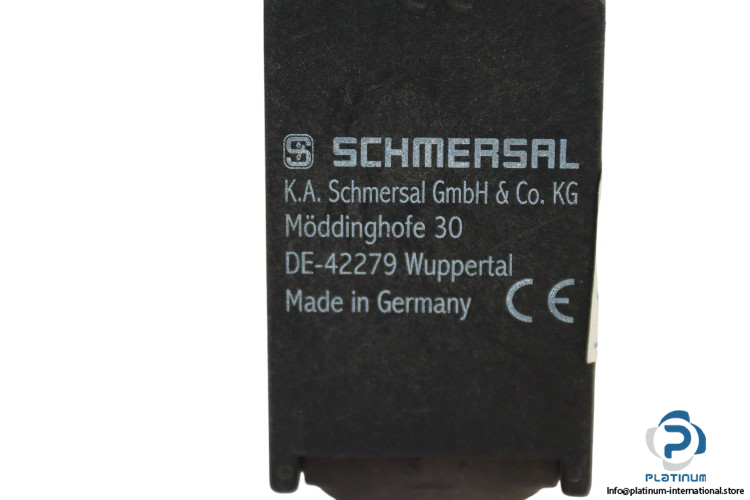

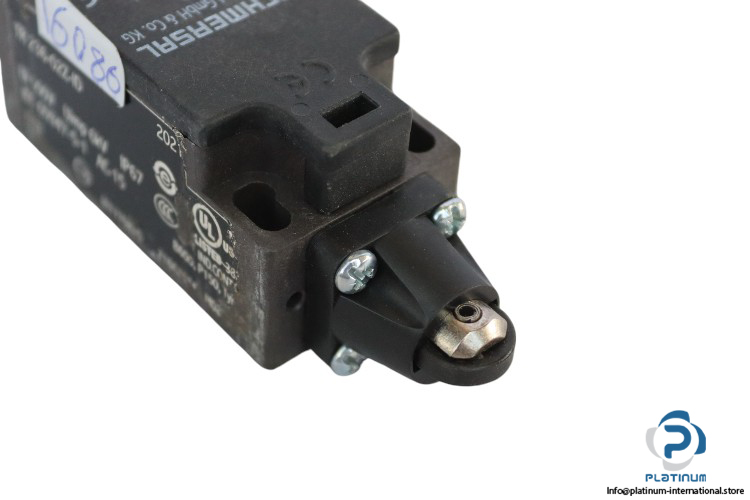

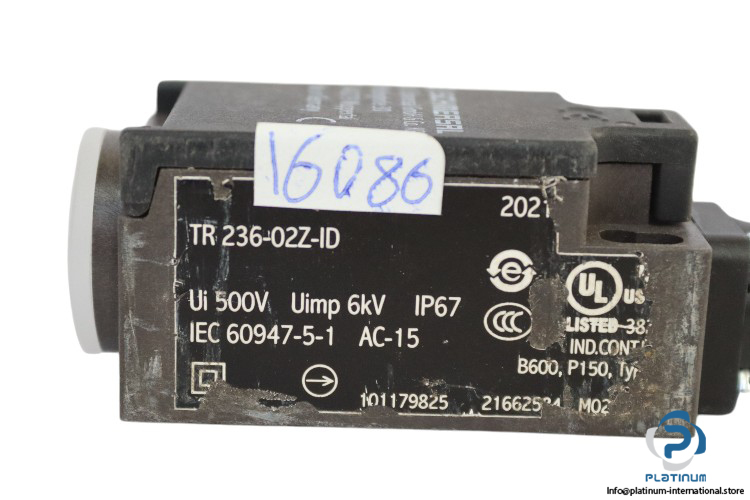

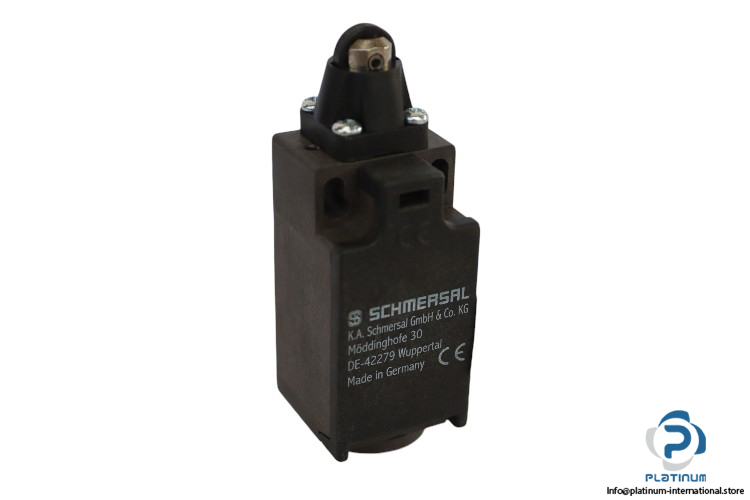

Schmersal TR 236-02Z-ID Position Limit Switch
중고
재고 있음1 단위즉시 배송 가능
POSITION LIMIT SWITCH
Durable Schmersal limit switch with roller lever, 220 V AC rated voltage, IP67 protection, and reliable performance for industrial automation systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장
SCHMERSAL T4V10H 335-11 ZU POSITION LIMIT SWITCH
The Schmersal T4V10H33511 ZU is a high-performance position limit switch designed for precision control and safety in industrial automation. Built with a durable metal housing, it ensures reliability in harsh environments and demanding applications.
Manufacturer: Schmersal
Type: Position Limit Switch
Model: T4V10H 335-11 ZU
Part No.: 101179825
| Rated Operational Voltage | 220 V AC |
| Thermal Current | 4 A |
| Rated Operational Current | 10 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage | 500 V AC |
| Safety Contacts No. | 1 |
| Auxiliary Contacts No. | 1 |
| Switching Element | (NC, NO) |
| Actuating Element | Roller Lever |
| Material | Metal |
| Protection Class | IP67 |
| Temperature | -30 / 80 °C |
| Dimensions | 40.5 x 76 x 38 mm |
