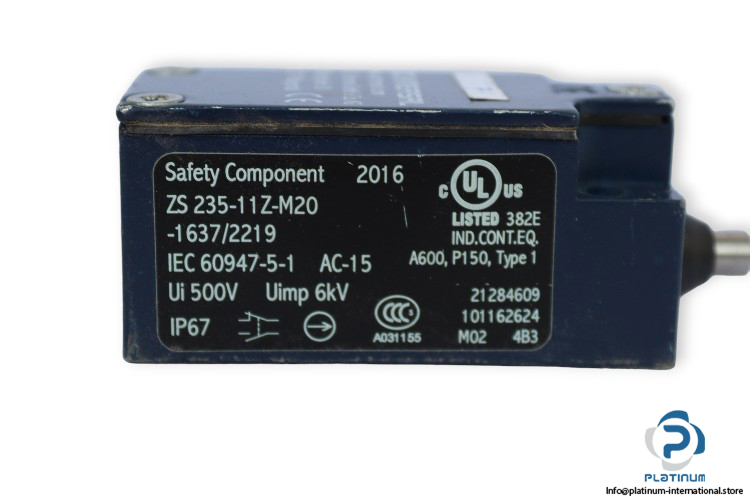

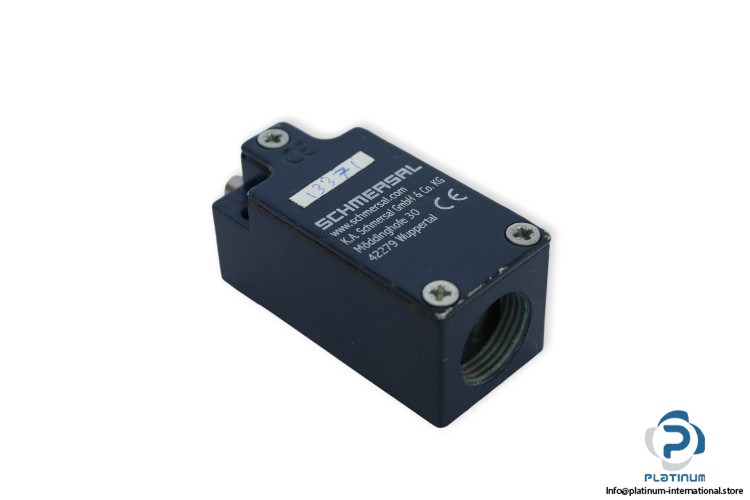

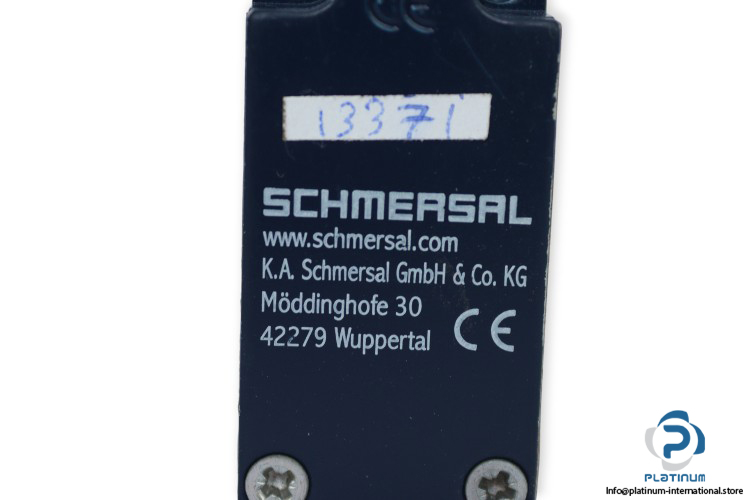

Schmersal ZS 235-11Z-M20 Position Switch
Manufacturer: SCHMERSAL
Type: Position Switch
Model: ZS23511ZM20
Art No.: 101164340
Rated Insulation Voltage: 380 V AC
Rated Current: 6 A
Frequency: 50 … 60 Hz
Rated Impulse Voltage (Uimp): 6 kV
Contact: 2-Pole, 1 Normally Open (NO) + 1 Normally Closed (NC)
Cable Entry: 1 x M20 x 1.5
Connection: Screw Connection Terminals
Material: Metal, Zinc Die-Cast
Protection Class: IP67
Temperature: -30 … 80 °C
Actuator Length, Roller Diameter: 37 x 14 mm
Dimensions: 75.5 x 30 x 30 mm
