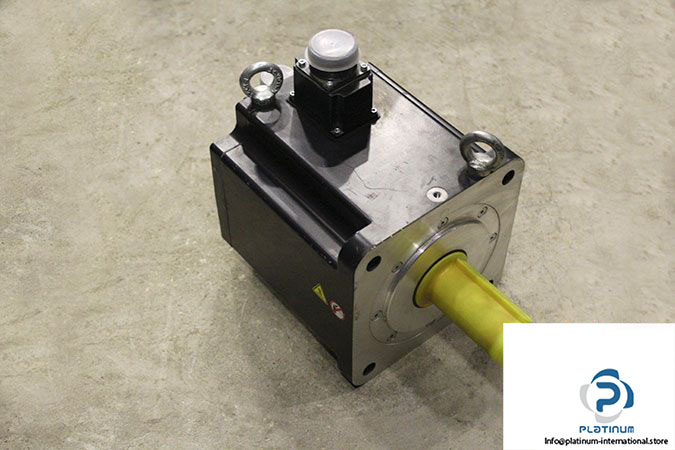

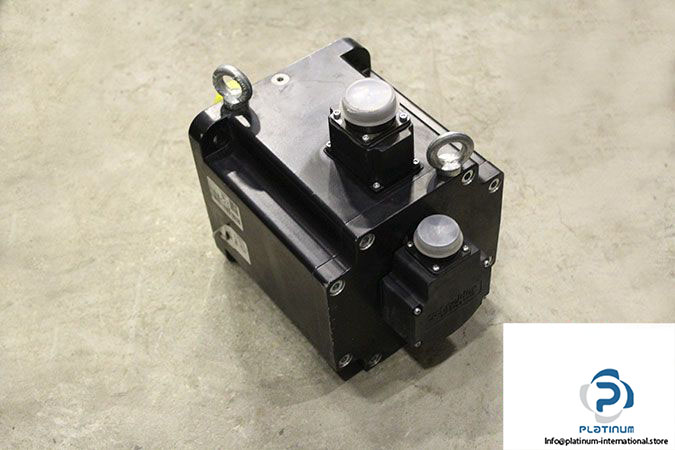

Schneider BCH2MR4513CA6C Servo Motor
신제품
재고 있음1 단위즉시 배송 가능
1 299,99$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Schneider Electric, Elau
Type: Servo Motors
Model: BCH2MR4513CA6C
Rated Torque [Nm]: 28.65
Stall Current [A]: 19.68
Rated Current [A]: 22.8
Max Current [A]: 57.6
Rated Voltage [V]: 230
Rated Power [W]: 4500
Rated Speed [rpm]: 1500
Max Speed [rpm]: 3000
Shaft End: Keyed
Flange Size [mm]: 180
Shaft Diameter [mm]: 35
Shaft Length [mm]: 79
Key Width [mm]: 10
Ambient Temperature [°C]: -20…40
Protection Class [IP]: 65
Weight [kg]: 23.8
