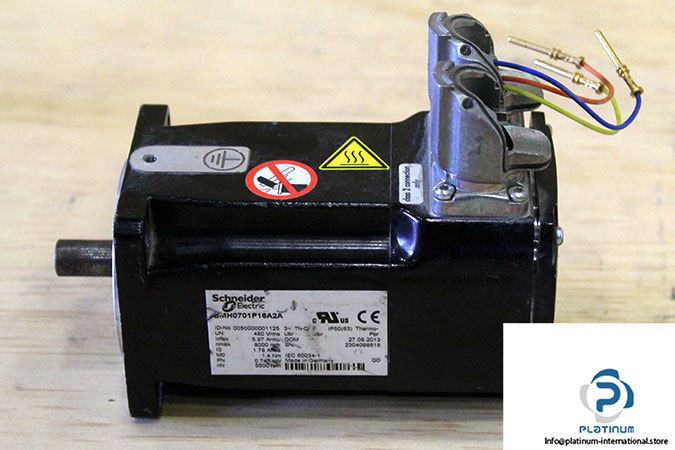

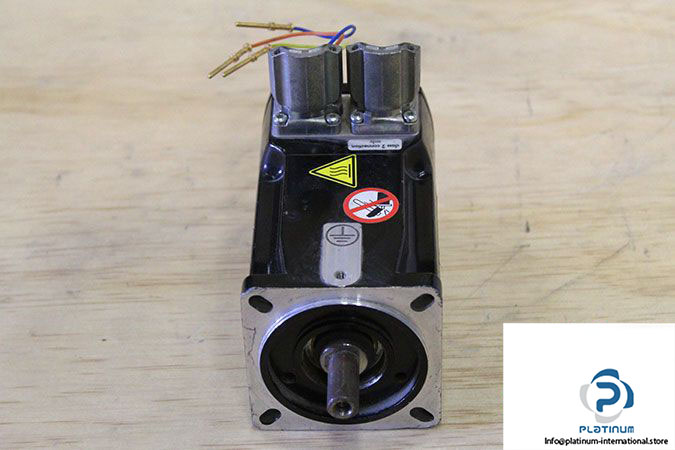

Schneider Electric BMH0701P16A2A Servo Motor
중고
재고 있음1 단위즉시 배송 가능
244,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장

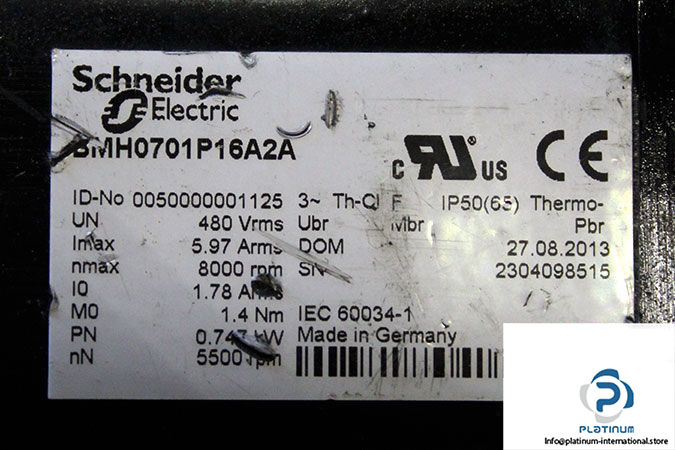

Manufacturer: ELAU – SCHNEIDER ELECTRIC
Type: SERVO MOTOR
Model: BMH0701P16A2A
ID No: 0050000001125
Rated Voltage : 480 Vrms
Max. Current: 5.97 Arms
Stall Current: 1.78 Arms
Normal Speed: 5500 Revolution Per Minute (rpm)
Max. Speed: 8000 Revolution Per Minute (rpm)
Nominal Torque: 1.4 Nm
Holding Brake: Without
Nominal Power: 0.747 kW
Flange Size: 70 mm
Motor Length: 122 mm
Shaft Diameter: 11 mm
Shaft Length: 23 mm
Insulation Class: F
Protection Class: IP50(65)
Weight: 1.58 kg
