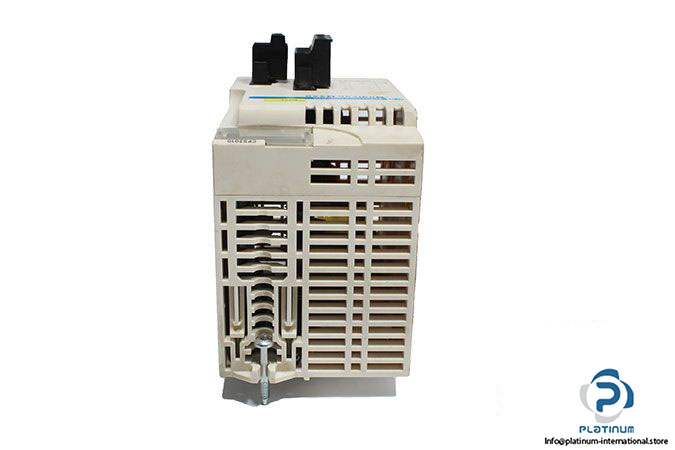

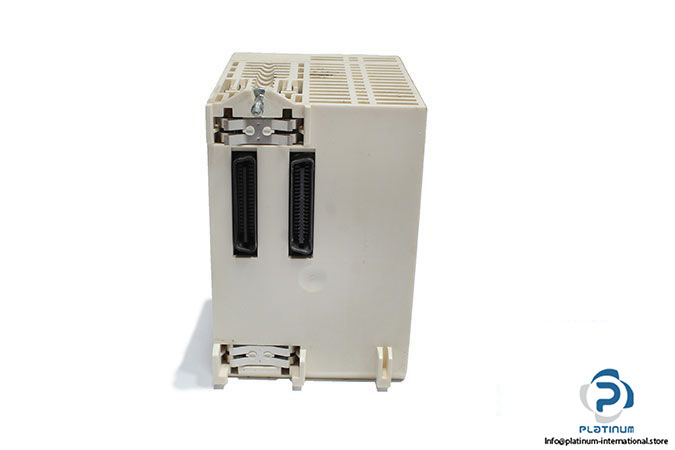

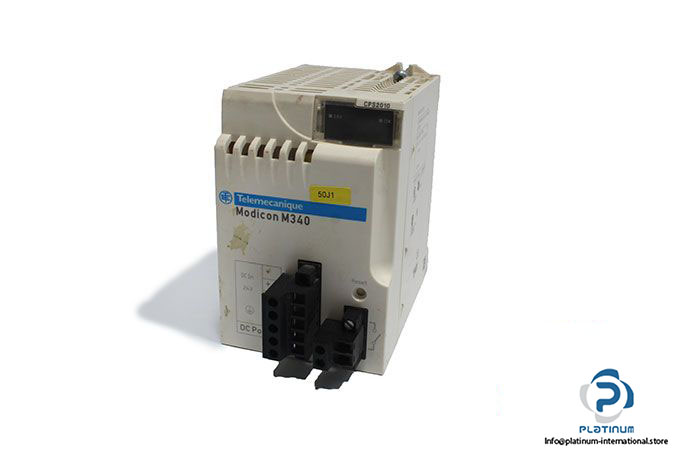

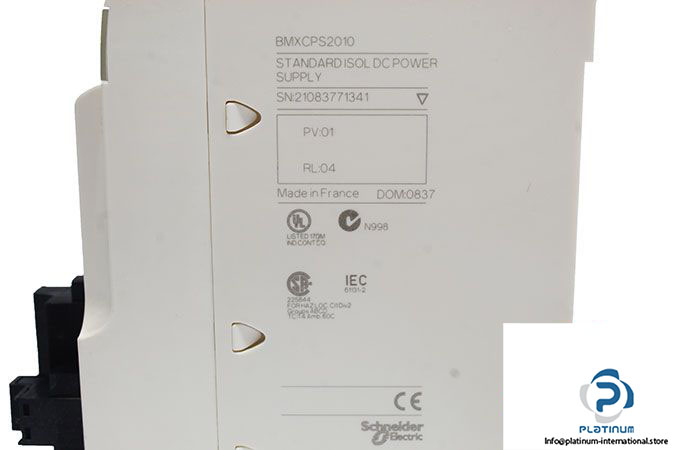

Schneider BMXCPS2010 Power Supply Module

Manufacturer: Schneider Telemecanique

Type: Power Supply Module

Model: BMXCPS2010

Primary Voltage: 24 V isolated

Secondary Power: 16.8 W 24 VDC I/O module power supply and processor, 8.3 W 3.3 VDC I/O module logic power supply

Primary Voltage Limit: 18 … 31.2 V

Input Current: 1 A 24 V

Inrush Current: 30 A 24 V

Maximum Power Dissipation: 8.5 W

Electrical connection:

• 1 connector 2 pin(s)alarm relay
• 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor

Degree of Protection: IP20

Ambient Air Temperature for Operation: 0 … 60 °C

Weight: 0.3 Kg
