Schneider Electric LRD22 Differential Thermal Overload Relay
재고 있음2 단위즉시 배송 가능
24,44$
열 과부하 릴레이 Schneider Electric LRD22 차동 열 과부하 릴레이, 690 V AC 정격, 16~24 A 조정 범위, IP20 보호 등급, 신뢰할 수 있는 모터 보호를 위한 나사 클램프 단자 포함.
방대한 재고
글로벌 배송
전문 지원
품질 보장

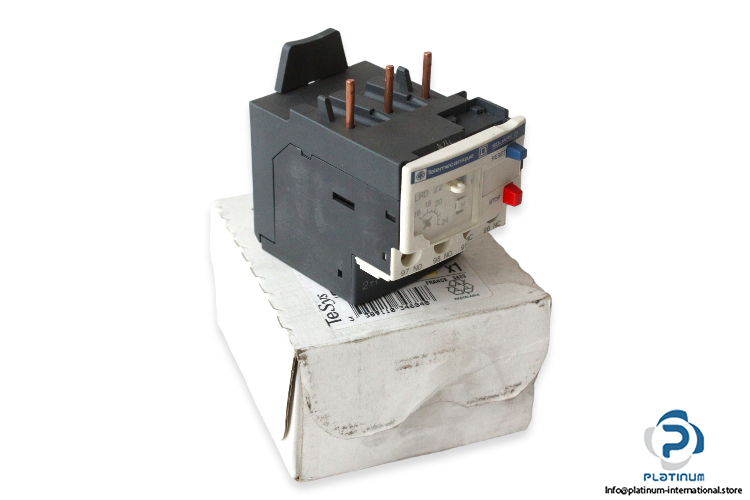

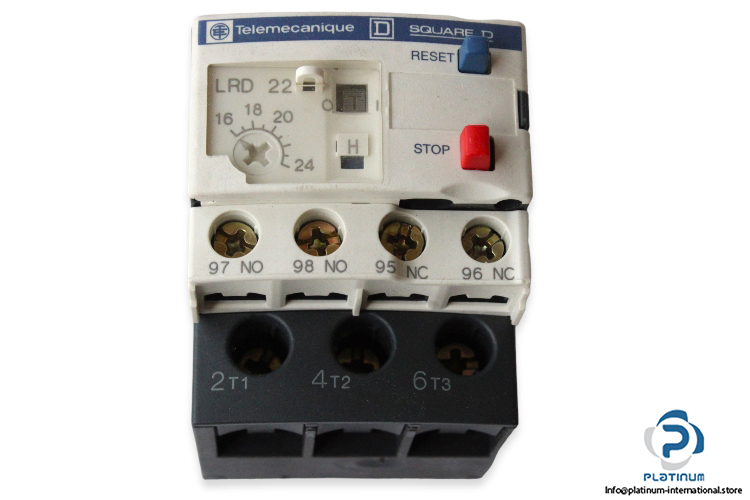

SCHNEIDER ELECTRIC LRD22 DIFFERENTIAL THERMAL OVERLOAD RELAY
The Schneider Electric LRD22 is a high-quality differential thermal overload relay designed for reliable motor protection. With adjustable thermal protection, durable screw clamp terminals, and compact dimensions, it ensures safe and efficient operation in industrial environments.
Manufacturer: Schneider Electric
Type: Differential Thermal Overload Relay
Model: LRD22
Part No.: 034684
| Rated Operational Voltage | 690 V AC |
| Thermal Protection Adjustment Range | 16 / 24 A |
| Auxiliary Contact Composition | 1 Normally Open, 1 Normally Closed |
| Connections “ Terminals | Screw clamp terminals |
| Tightening Torque | Control circuit: 1.7 N.m (screw clamp), Power circuit: 2.5 N.m (screw clamp) |
| Relay Application | Motor protection |
| Operating Temperature | -20 / 60 °C |
| Degree of Protection | IP20 |
| Dimensions | 66 x 45 x 70 mm |
