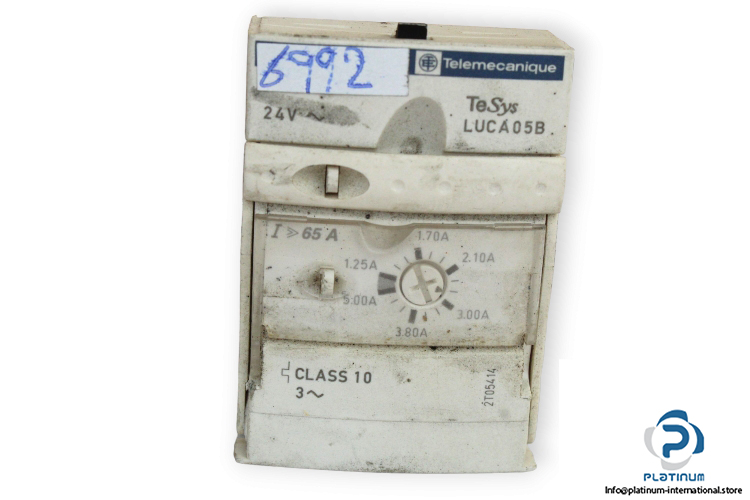

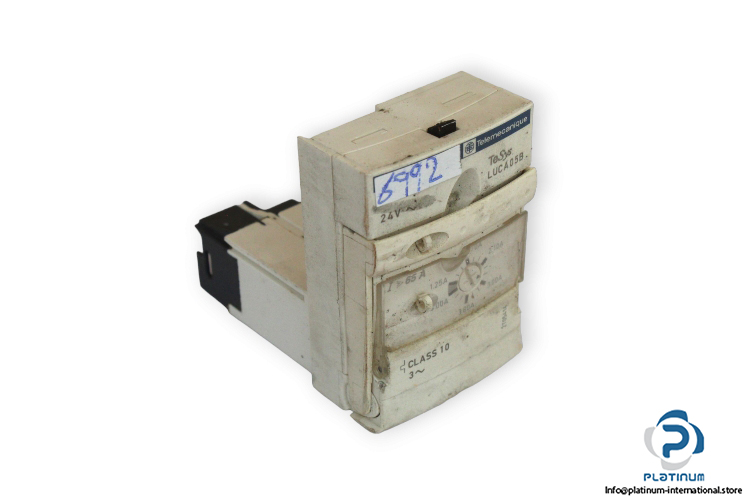

Schneider Electric LUCA05B Control Unit
중고
재고 있음4 단위즉시 배송 가능
제어 장치
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Schneider Electric
Type: Control Unit
Model: LUCA05B
Device application: Motor control, Motor protection
Rated operational voltage Ue: 690 V AC
Rated insulation voltage Ui: 600 V AC
Network frequency: 40 … 60 Hz
load type: 3-phase motor
Motor power: 3 Kw
Rated motor current: 1.25 … 5 A
Rated impulse withstand voltage Uimp: 6 kV
Thermal overload class: Class 10
control circuit voltage: 24 V AC
Degree of protection: IP20
ambient air temperature for operation: -25 … 70 °C
Dimensions ( W X H X D): 45 X 66 X 60 mm
