Schneider Electric SH31003P11A2000 Servo Motor

재고 있음1 단위즉시 배송 가능

799,99$

Servo Motor

High-performance ELAU servo motor rated at 480 Vrms, delivering precise motion control with high torque, high speed capability, and robust industrial design.

제조업체
SCHNEIDER ELECTRIC
SKU
968787
카테고리
Servo Motors
상태
중고
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

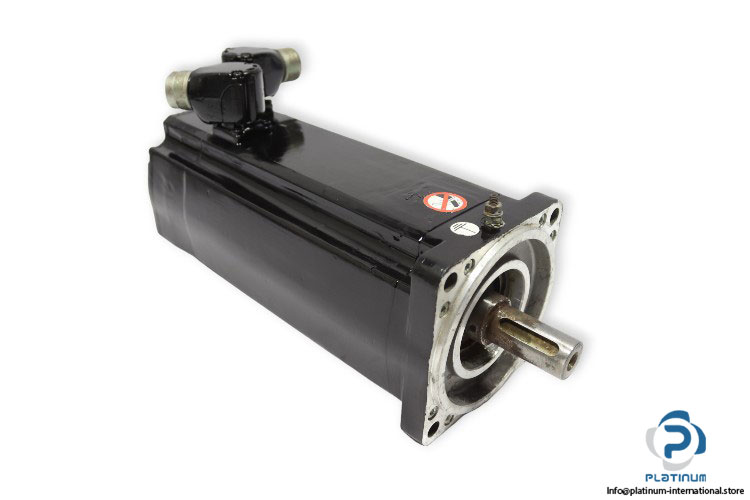

ELAU “ Schneider Electric SH31003P11A2000 Servo Motor

The ELAU SH31003P11A2000 servo motor is a high-performance motion control solution designed for precise speed, torque, and positioning control in advanced industrial automation systems. Engineered for demanding applications, it delivers reliable operation, high power density, and consistent performance across a wide speed range.

Manufacturer: ELAU “ Schneider Electric

Type: Servo Motor

Model: SH31003P11A2000

Alternative Model: SH100/40080/0/1/00/00/00/00/00

Rated Voltage480 Vrms
Maximum Current28.3 Arms
Stall Current6.6 Arms
Normal Speed4000 rpm
Maximum Speed6000 rpm
Nominal Torque8 Nm
Nominal Power2.93 kW
Flange Size100 mm
Motor Length240.5 mm
Shaft Diameter19 mm
Shaft Length40 mm
Thermal ClassF
Protection ClassIP50 (IP65)

You May Also Need

Schneider Electric LXM52DD72C41000 Single Drive
신제품

SCHNEIDER

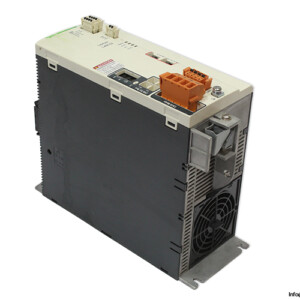

Schneider Electric LXM52DD72C41000 Single Drive
