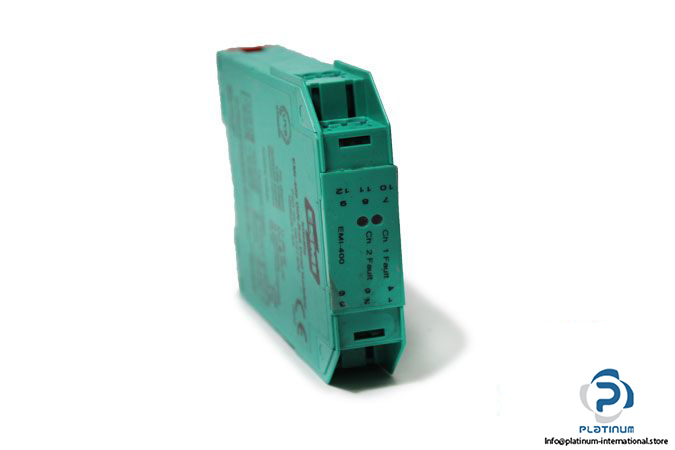

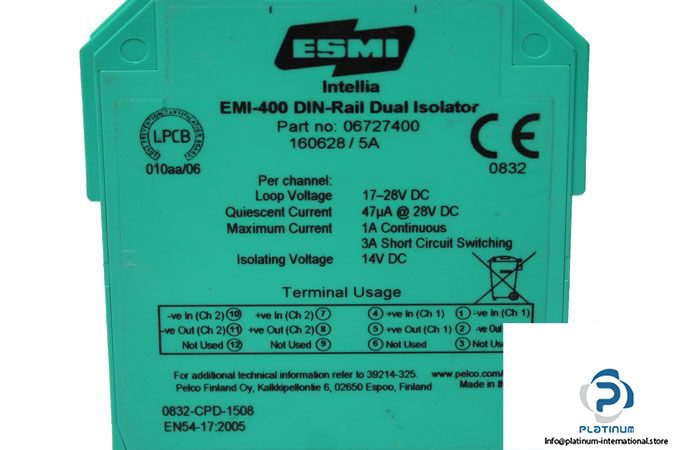

Schneider EMI-400 DIN-Rail Dual Isolator

Manufacturer: SCHNEIDER

Type: DIN-RAIL DUAL ISOLATOR

Model: EMI-400

Part No.: 06727400

Range of Product: Esmi addressable components for ALC range

Rated Operational Voltage: Max. 28 VDC / 14 V DC isolating

Current Consumption: 23 µA at 18 V DC / 47 µA at 28 V DC/ 4 mA at 18 V DC isolated state

Colour: Green

Local Signaling: LED yellow for isolation

Cable Cross Section: 0 … 2.5 mm²

Mounting Location: Indoor use only

Dimensions: 110 X 107 X 20 mm

Degree of Protection IP20:

Relative Humidity: 0 … 95 %

Ambient air temperature: -20 … 60 °C

Weight: 0.09 Kg
