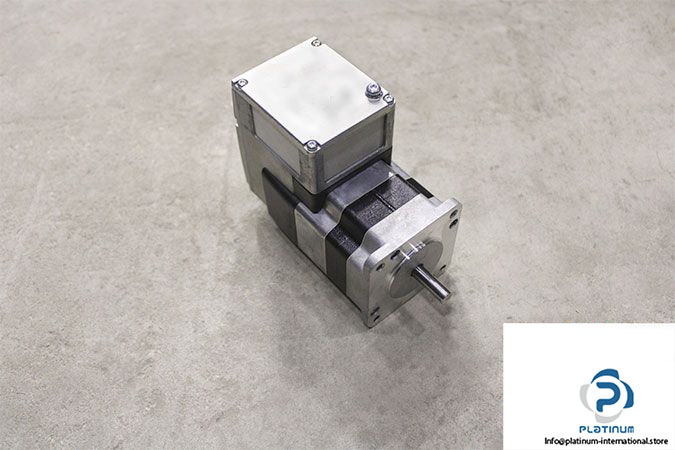

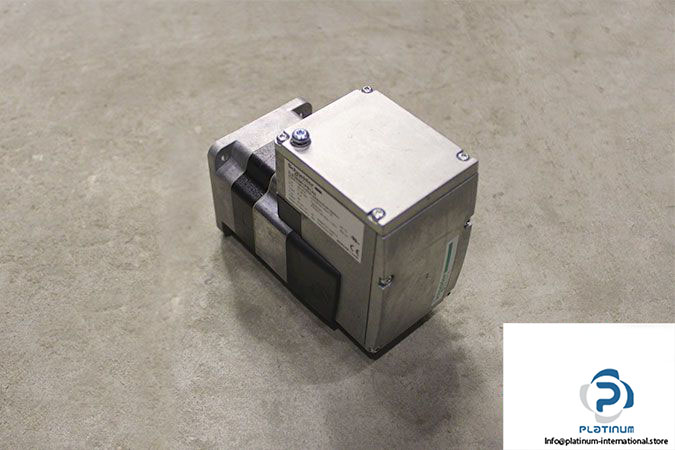

Schneider ILE2E661PB1A0 Brushless DC Motor
신제품
재고 있음8 단위즉시 배송 가능
477,77$
방대한 재고
글로벌 배송
전문 지원
품질 보장

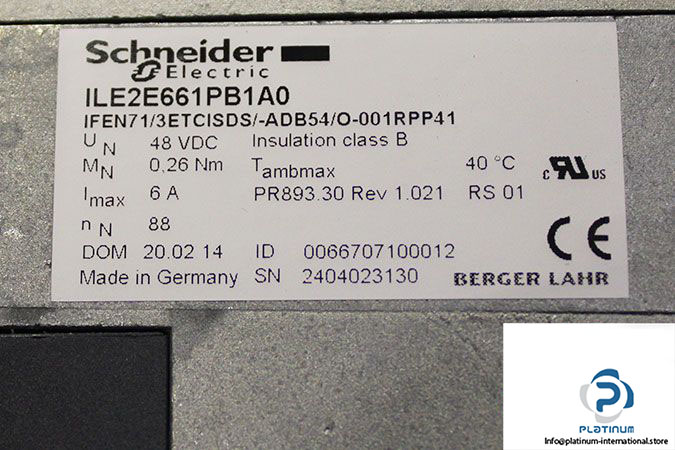

Manufacturer: Schneider Electric, Elau
Type: Brushless DC Motors
Model: ILE2E661PB1A0
ID No.: 0066707100012
Reduction Ratio: 1:1
Supply Voltage [V]: 48
Max Current [A]: 6
Nominal Speed [rpm]: 88
Nominal Torque [Nm]: 0.26
Peak Stall Torque [Nm]: 0.43
Continuous Stall Torque [Nm]: 0.28
Number of Poles: 6
Flange Size [mm]: 66
Shaft Diameter [mm]: 8
Shaft Length [mm]: 25
Mounting Holes Diameter [mm]: 4.4
Ambient Air Temperature [°C]: 40
Thermal Class: B
Weight [kg]: 1.36
