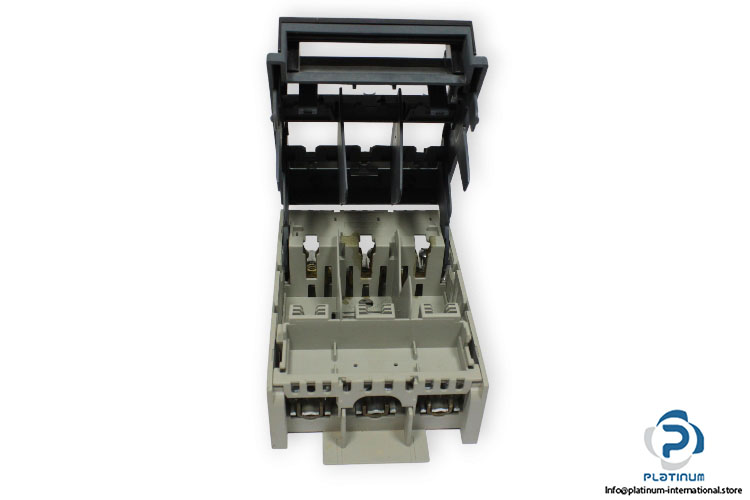

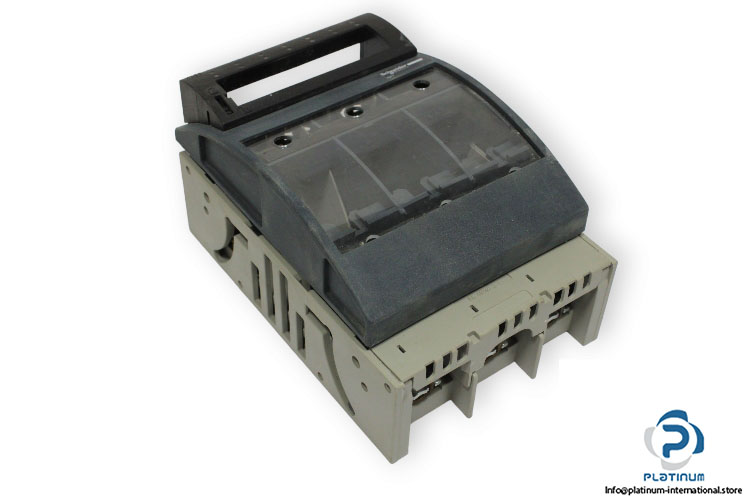

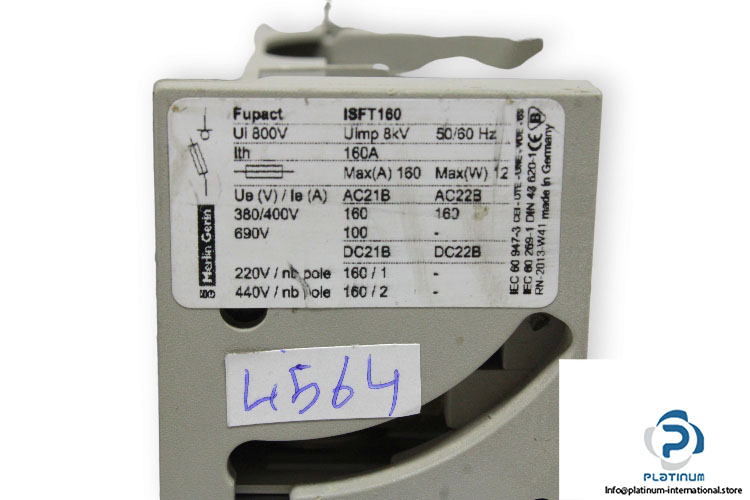

Schneider ISFT160 Fuse Switch Disconnector

Manufacturer: SCHNEIDER
Type: Fuse Switch Disconnector
Model: ISFT160

Poles description: 3P
Number of fuse carriers: 3
[Ith] conventional free air thermal current: 160 A
Maximum power dissipation per pole: 15 W
[Ue] rated operational voltage:
690 V AC 50/60 Hz
440 V DC
800 V AC 50/60 Hz AC-20
800 V DC DC-20
[Ui] rated insulation voltage:
1000 V AC 50/60 Hz
1000 V DC
[Uimp] rated impulse withstand voltage: 8 Kv
Control type: Fuse carriers handle
Mounting location: Side by side
Contact operation: Single-break
Width: 106 mm
Height: 206 mm
Depth: 80 mm
