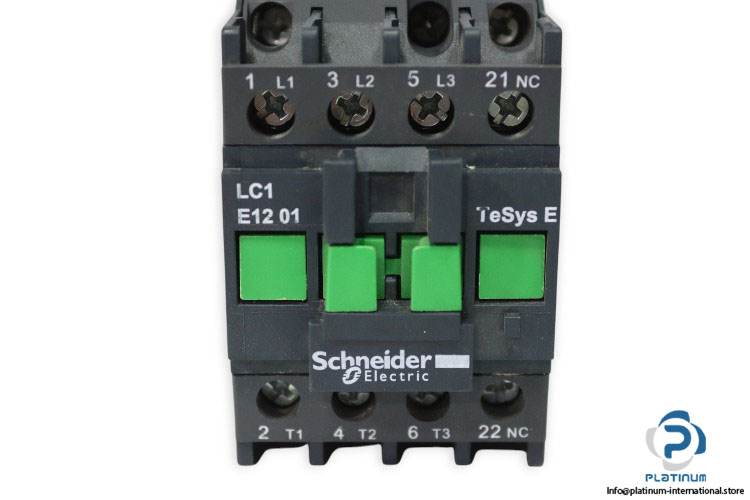

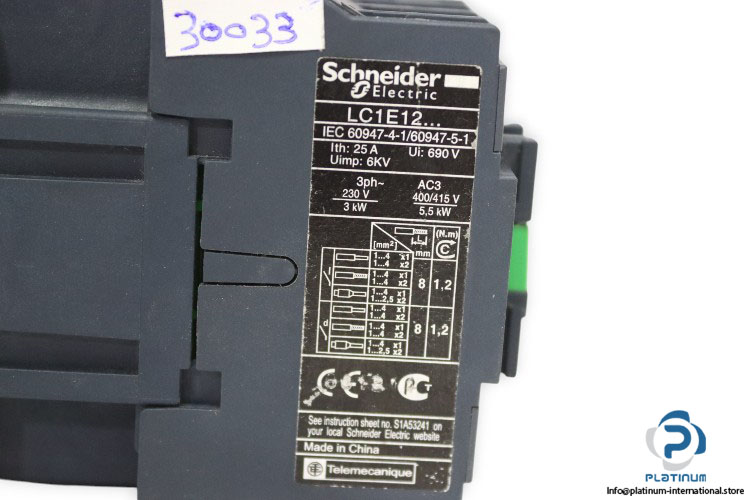

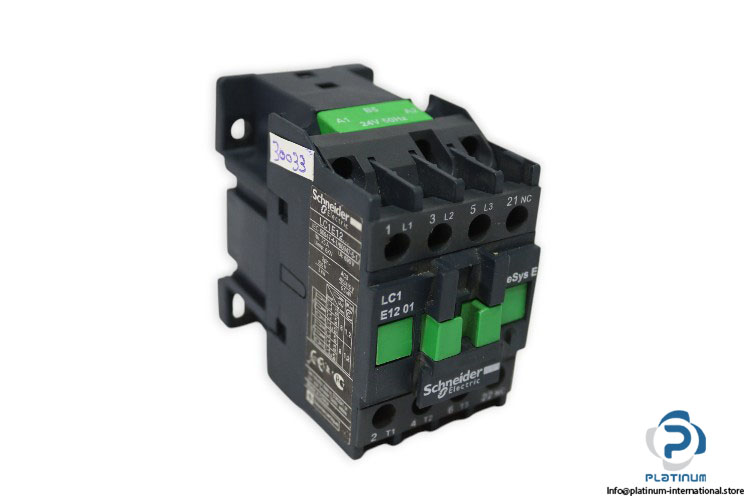

Schneider LC1E1201 Contactor
신제품
재고 있음1 단위즉시 배송 가능
CONTACTOR
Schneider Easy TeSys LC1 E12 01 three‘pole contactor with 24 V AC control, 690 V AC operational voltage, and 25 A thermal rating. Includes 3 NO main poles and 1 NC auxiliary for reliable motor and power circuit switching.011NC24v25A3NO3P60947-4-1690VACAuxiliaryCircuitcoilContactContactorControlCurrentE12EasyIECIndustrialLC1LC1EMainmotorPolesPowerSchneiderTeSysThermal
방대한 재고
글로벌 배송
전문 지원
품질 보장
SCHNEIDER LC1 E12 01 CONTACTOR
A compact AC contactor from the Easy TeSys range, the LC1 E12 01 delivers dependable switching for three‘phase motors and power circuits, with 24 V AC control and robust 25 A thermal rating.
Manufacturer: SCHNEIDER
Type: Contactor
Model: LC1 E12 01
Motor Power (kW):
3 kW at 220/230 V AC, 50/60 Hz
5.5 kW at 380/400 V AC, 50/60 Hz
5.5 kW at 415/440 V AC, 50/60 Hz
| Range | Easy TeSys |
| Device Short Name | LC1E |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | Power circuit 690 V AC, 50/60 Hz |
| [Uc] Control Circuit Voltage | 24 V AC, 50 Hz |
| Pole Contact Composition | 3 NO |
| [Ith] Conventional Free Air Thermal Current | 25 A (at 55 °C), power circuit |
| [Ui] Rated Insulation Voltage | 690 V (IEC 60947-4-1) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Tightening Torque | Power circuit 1.2 N·m; Control circuit 1.2 N·m |
| Auxiliary Contact Composition | 1 NC |
