Schneider LRD32 Thermal Overload Relay
신제품
재고 있음1 단위즉시 배송 가능
Thermal Overload Relay
Reliable Schneider LRD32 / LRD32-B overload relay with 23“32 A setting range, 690 V AC rated operational voltage, IP20 protection, and compact design.
방대한 재고
글로벌 배송
전문 지원
품질 보장

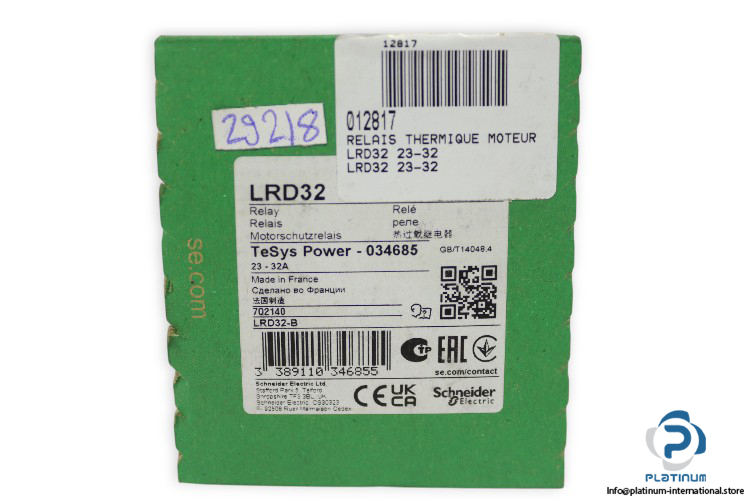

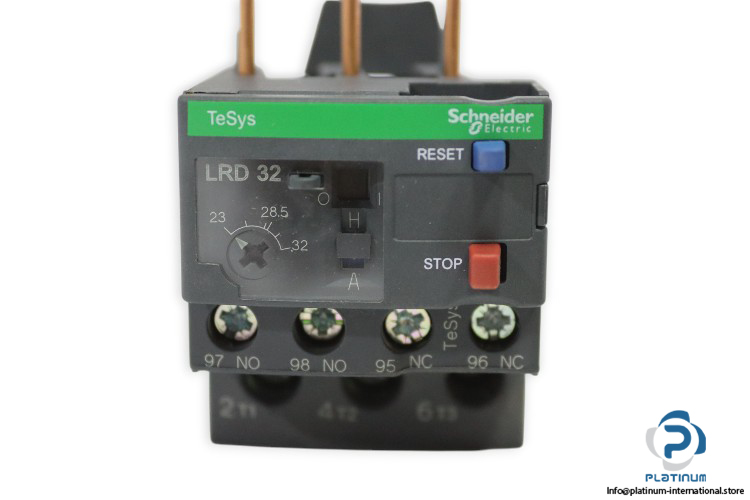

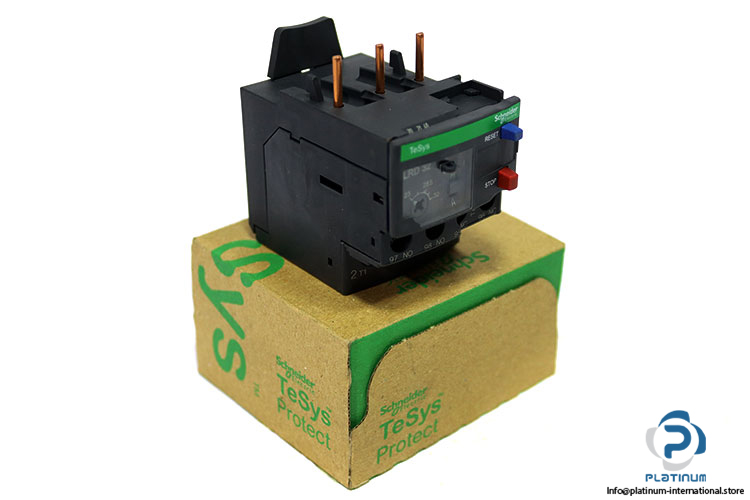

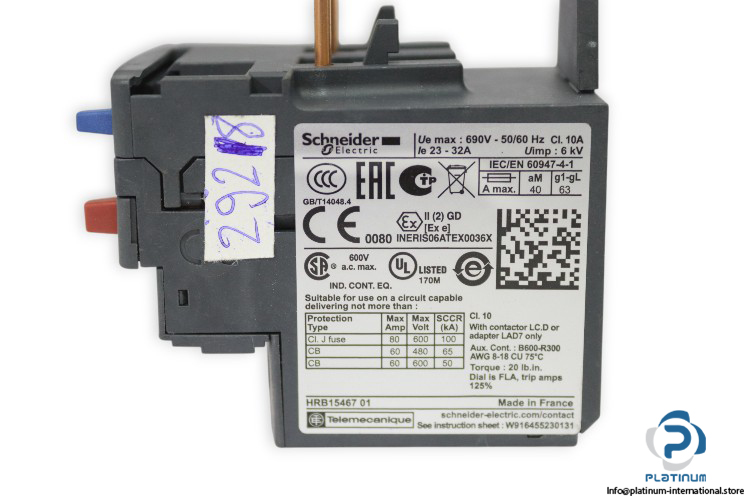

Schneider LRD32 / LRD32-B Thermal Overload Relay
The Schneider LRD32 / LRD32-B is a robust and reliable thermal overload relay from the TeSys Deca range, engineered for the protection of electrical motors. It offers precise overload protection, durability, and easy integration into industrial systems.
Manufacturer: Schneider
Type: Thermal Overload Relay
Model: LRD32 / LRD32-B
Part No.: 034685 / 702140
| Range | TeSys Deca |
| Short Name | LRD |
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current | 10 A |
| Rated Insulation Voltage | 1000 V AC |
| Frequency | 50 / 60 Hz |
| Sitting Range | 23 / 32 A |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Number of Poles | 3-Pole |
| Auxiliary Contact | 1 NO + 1 NC |
| Protection Class | IP20 |
| Ambient Temperature | -20 / 60 °C |
| Dimensions | 81 x 70 x 115 mm |
