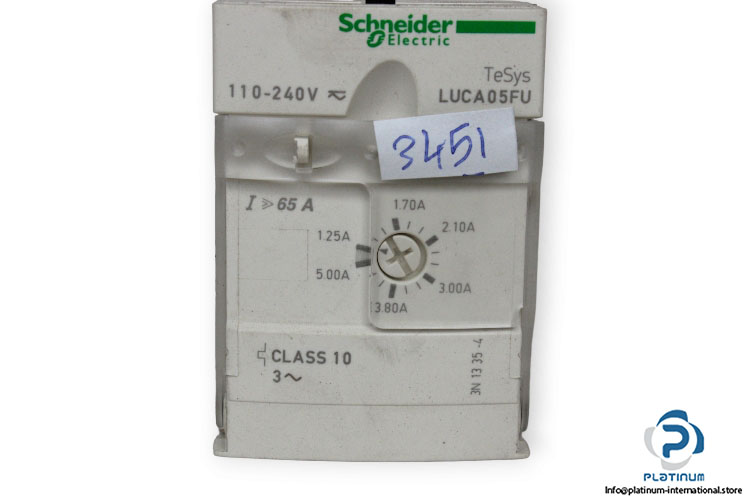

Schneider LUCA05FU Standard Control Unit
Manufacturer: Schneider
Type: Standard Control Unit
Model: LUCA05FU
Rated operational voltage max: 690 V AC
Control circuit voltage: 110 … 240 V AC/DC
Control circuit current: > 65 A
Network frequency: 40 … 60 Hz
Motor power: 1.5 kW at 400 … 440 V AC
Rated motor current adjustment Range: 1.25 … 5 A
Load type: 3-phase motor-cooling: self-cooled
fixing mode: Plug-in
Thermal overload class: Class 10
Degree of protection: IP20
Operation temperature: -25 … 70 °C
Dimensions: 45 x 66 x 60 mm
