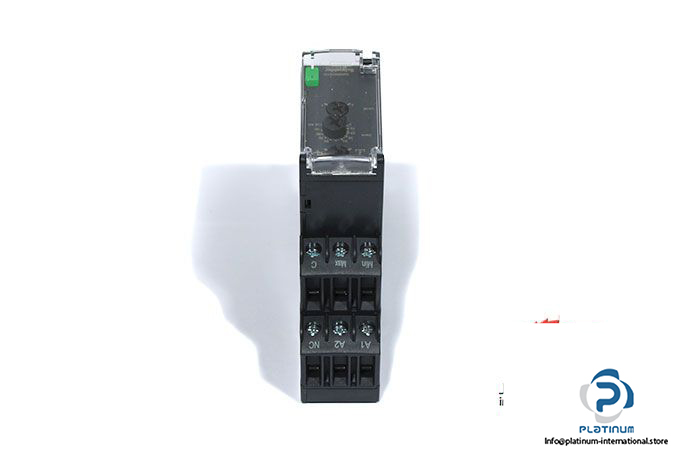

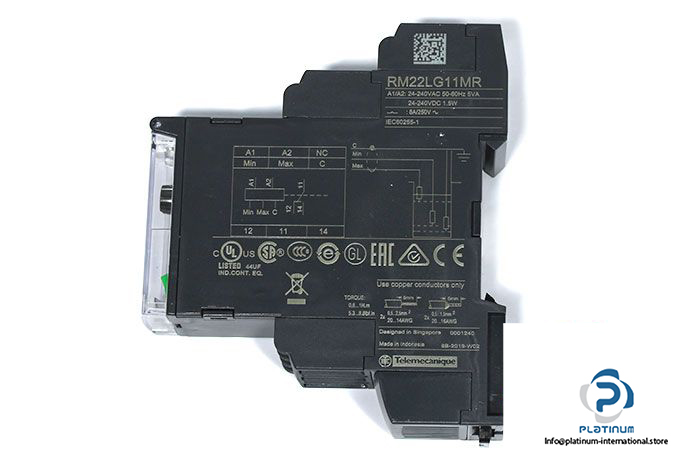

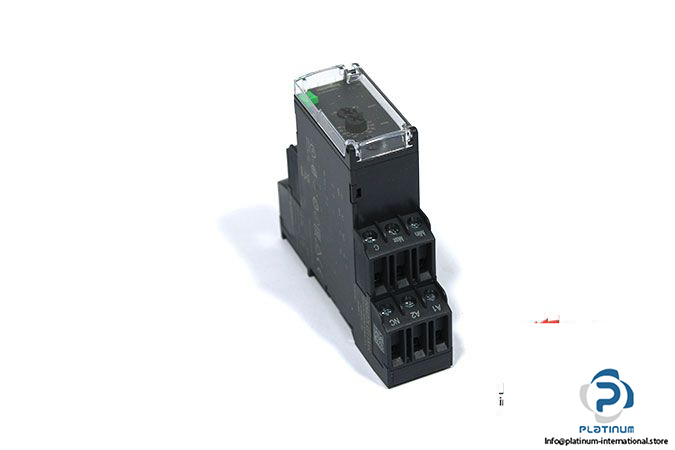

Schneider RM22LG11MR Modular Liquid Level Control Relay

Manufacturer: SCHNEIDER

Type: Harmony, Modular Liquid Level Control Relay

Model: RM22LG11MR

Range of Product: Harmony Control Relays

Rated Nominal Voltage: 24 … 240 V AC / DC

Switching Capacity: 2000 VA

Nominal Output Current: 8 A AC

Minimum Switching Current: 10 mA at 5 V DC

Contacts Type and Composition: 2 C/O

Sensitivity Scale: 5 … 100 k Ω St (Standard Sensitivity)

Sensitivity Adjustment: 5 … 100 %

Housing Material: Self-Extinguishing Plastic

Dimensions: 22.5 x 79.5 x 90 mm

Degree of Protection: IP20 (Terminals), IP40 (Housing), IP50 (Front Panel)

Weight: 0.11 kg
