Schneider XAC-B08 Empty Pendant Control Station

SCHNEIDER XAC-B08 Empty Pendant Control Station

The SCHNEIDER XAC-B08 is an empty pendant control station from the Harmony XAC range, designed for industrial power and control circuit applications. This double-insulated enclosure is manufactured from glass reinforced polyester and engineered for demanding environments requiring high protection levels.

Manufacturer: SCHNEIDER
Type: Empty Pendant Control Station

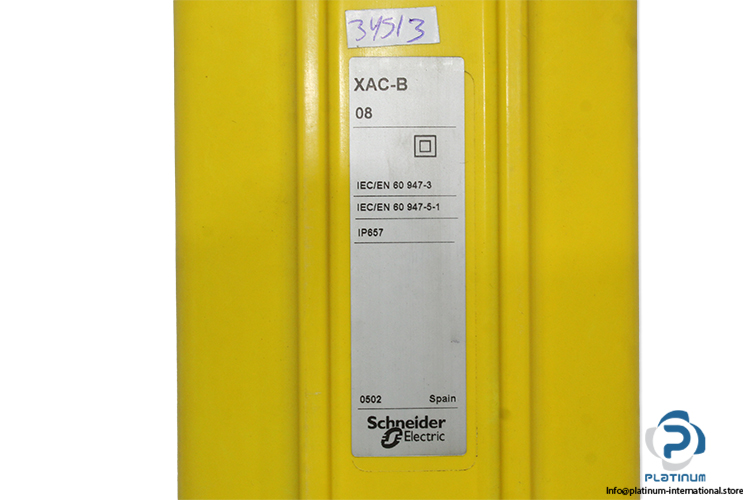

Model: XAC-B08

Product Information

Range of Product: Harmony XAC
Product or Component Type: Pendant Control Station
Device Short Name: XACB
Control Station Type: Double Insulated
Enclosure Material: Glass Reinforced Polyester
Electrical Circuit Type: Power Circuit / Control Circuit
Enclosure Type: Empty Enclosure

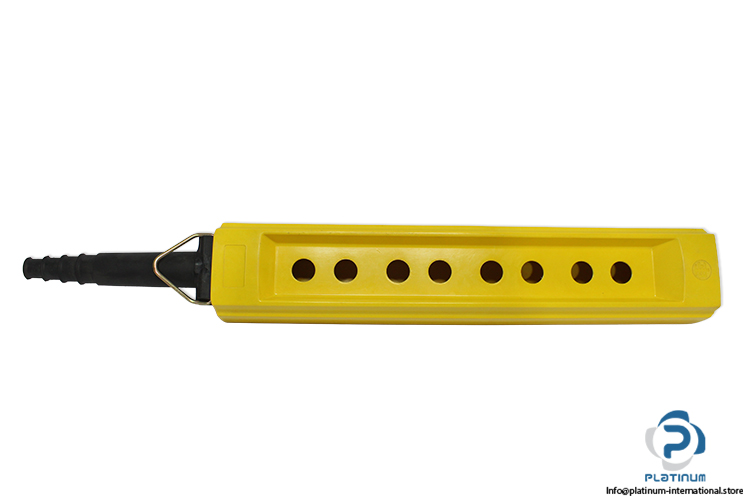

Number of Cut-Out: 8 Cut-Outs

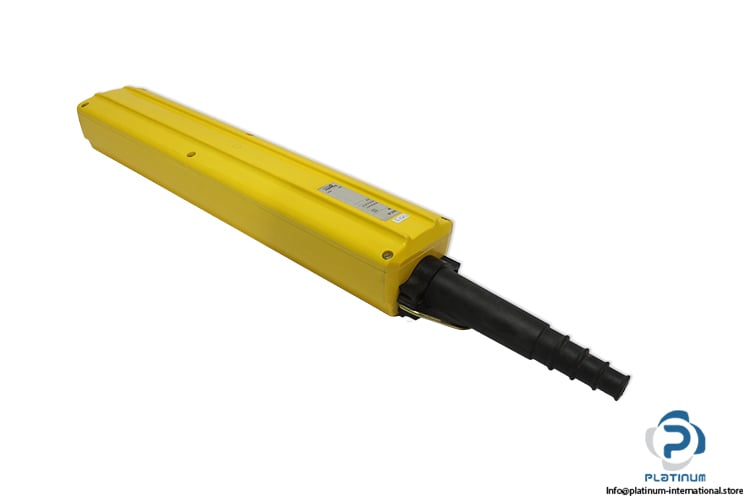

Cable Entry: Rubber Sleeve with Stepped Entry 40 mm
Guard Rail: Without
Vertical Operator Cut-Out Centre: 40 mm

Standards & Certifications

Standards:
CSA C22.2 No 14
IEC/EN 60947-5-1
IEC/EN 60947-3

Product Certifications: CSA Type 4
Protective Treatment: TH

Environmental & Protection Ratings

Ambient Air Temperature for Operation: -25 / 70 °C
Ambient Air Temperature for Storage: -40 / 70 °C
Vibration Resistance: 15 gn (f= 10 / 500 Hz) conforming to IEC 60068-2-6
Shock Resistance: 100 gn conforming to IEC 60068-2-27
Overvoltage Category: Class II conforming to IEC 61140
IP Degree of Protection: IP65 conforming to IEC 60529
IK Degree of Protection: IK08 conforming to IEC 62262
