Schneider ZBV B4 Light Block FOR Head
24 V AC/DC에서 작동하며 18 mA 전류 소비와 IP20 보호 기능을 갖춘 Schneider ZBV B4 헤드용 라이트 블록은 -40에서 70°C의 주변 온도 범위 내 산업 환경에서 내구성을 위해 설계되었습니다.

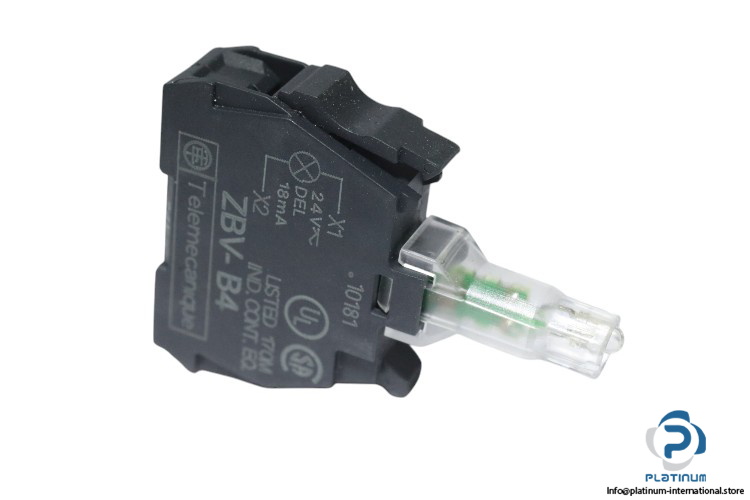

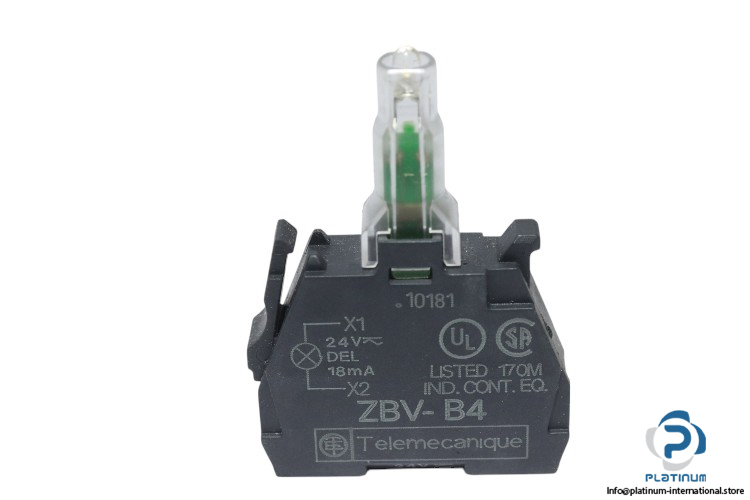

Schneider Light Block for Head ZBV B4
The Schneider Light Block for Head ZBV B4 is designed for industrial use, providing reliable performance with a rated supply voltage of 24 V AC/DC. The unit features a supply voltage range of 19.2 to 30 V DC / 21.6 to 26.4 V AC, with a current consumption of 18 mA. This light block is built to withstand harsh environmental conditions, with a protection degree of IP20 and an ambient temperature range of -40 to 70°C. The tightening torque for installation is between 0.8 to 1.2 N.m, making it suitable for various mounting applications.
Manufacturer: Schneider
Type: Light Block for Head
Model: ZBV B4
Part no: 008963
Ideal for a wide range of industrial applications requiring durability and reliable operation across a broad temperature range.
| Rated Supply Voltage [Us] | 24 V AC/DC at 50/60 Hz |
| Tightening Torque | 0.8 / 1.2 N.m |
| Supply Voltage Limits | 19.2 / 30 V DC / 21.6 / 26.4 V AC |
| Current Consumption | 18 mA |
| Degree of Protection | IP20 |
| Ambient Temperature | -40 to 70 °C |
