Schonbuch Ipli 1214 Inductive Proximity Sensor
중고
재고 있음2 단위즉시 배송 가능
Inductive Proximity Sensor
The Schonbuch IPLI1214 is a high-performance inductive proximity sensor with a 4 mm switching distance, M12 connector, and IP67 protection. Designed for non-flush mounting, it provides reliable detection in a wide range of industrial applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

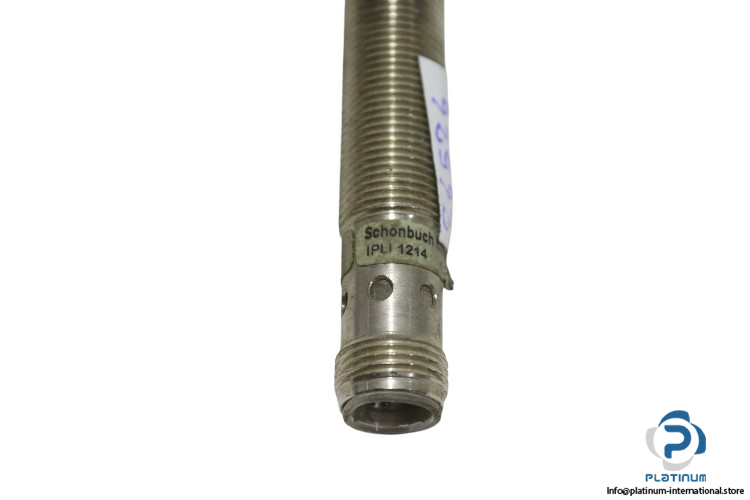

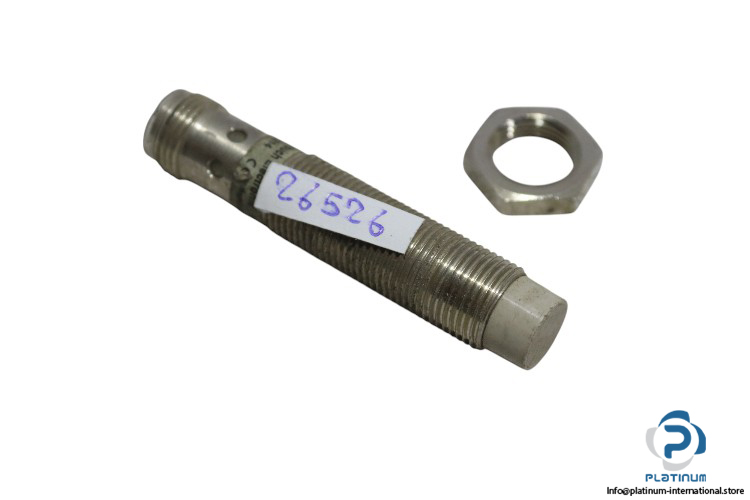

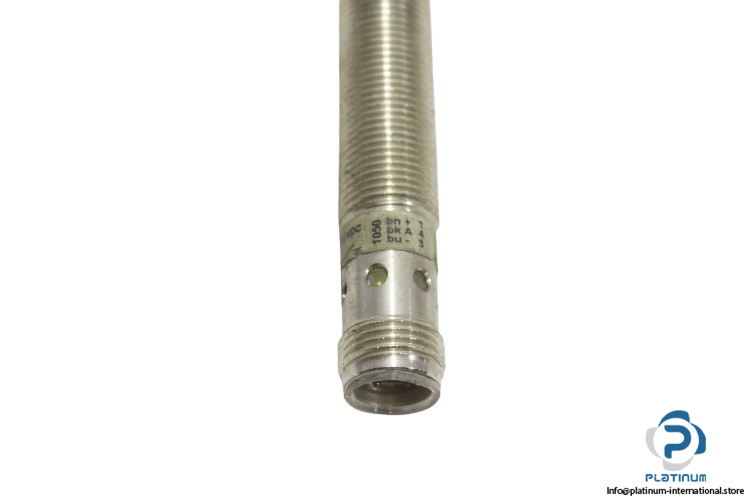

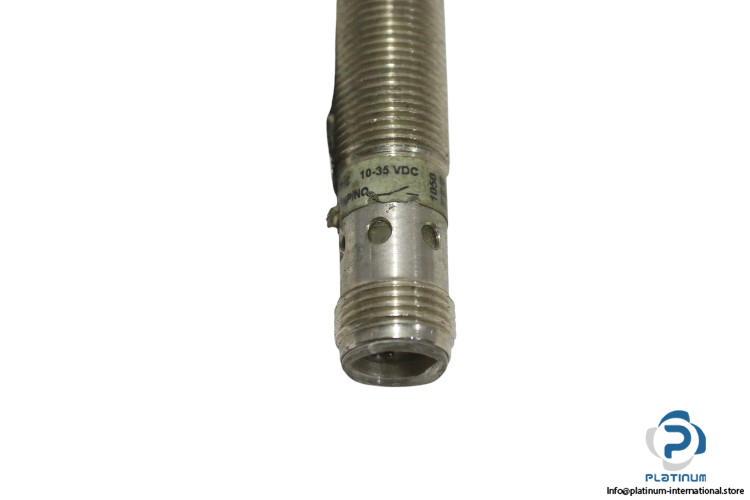

Schonbuch IPLI1214 “ Inductive Proximity Sensor
The Schonbuch IPLI1214 inductive proximity sensor is designed for precise detection of metallic objects, offering reliable performance in demanding industrial environments. With its non-flush design and robust M12 connector, it ensures smooth operation across a wide temperature range.
Manufacturer: Schonbuch
Type: Inductive Proximity Sensor
Model: IPLI1214
| Switching Distance | 4 mm |
| Nominal Voltage | 24 VDC |
| No-load Current | 10 mA |
| Voltage Range | 10 to 35 V DC |
| Ampacity | 300 mA |
| Outlet | PNP, NO |
| Connection Type | Plug M12 |
| Design | M12 |
| Diameter | M12x1 |
| Installation Type | Non-flush |
| Length | 54 mm |
| Switching Frequency | 1000 Hz |
| Switching Hysteresis | 15% |
| Protection Class | IP67 |
| Voltage Drop | 2 V |
| Temperature Drift | 10 °C |
| Environment Temperature | -25 to 70 °C |
| Material | Nickel Plated Brass |
