Schunk MMS 22-A-10V-M12 Magnetic Switch Sensor
신제품
재고 있음2 단위즉시 배송 가능

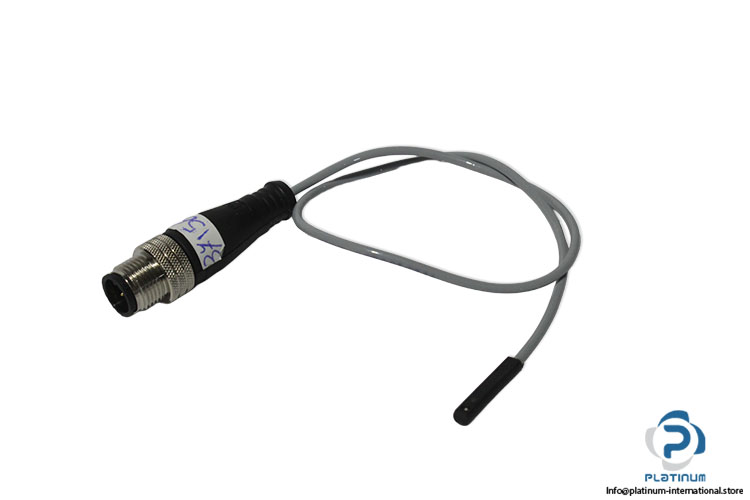

Analog Position Sensor / Magnetic Switch Sensor The Schunk MMS 22-A-10V-M12 is a compact analog position sensor designed for precise magnetic position detection and monitoring in industrial automation systems. Featuring a 24 V nominal voltage, analog output up to 10 V, and an M12 4-pin connector, it provides reliable operation and fast response for motion control applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Part No. | 315828 |
| Series | mms-22-a |
| Output Voltage | max. 10V |
| Nominal voltage | 24 V |
| Nominal current | 15.0 mA |

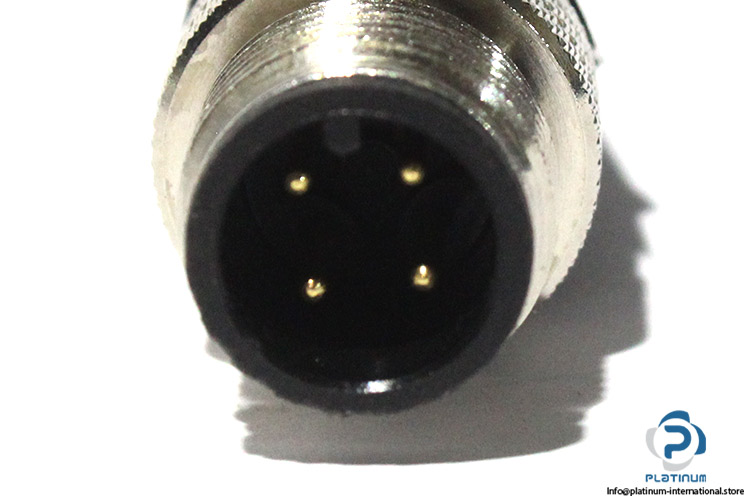

| Type of connection | Cable end with Connector, M12, 4pins |
| Programming Function | C-Slot |
| Cable Length | 0.31m |
| Measuring principle | magnetic |
| Number of switching points | Analog |
| Ambient Temperature | 5.0 to 55.0°C |
| Response time | 50.0 ms |
| Load Resistance | min. 10.0 |
| Housing material | GV-5H (PA), black |
| Cable diameter | 2.35 mm |
| Cable sheath material | PUR |
| Protection class | 3 |
| Certification | CE |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097884 |
| Weight | 0,02 |
