SEW AS7W/AV7W AMG 73 W29 S2048 Absolute Encoder Without Terminal Strip
SEW AS7W/AV7W ABSOLUTE ENCODER
The SEW AS7W/AV7W is a high-precision absolute encoder engineered for advanced industrial automation systems. With explosion-proof design and robust protection class IP66, it ensures accurate data acquisition even in demanding environments.

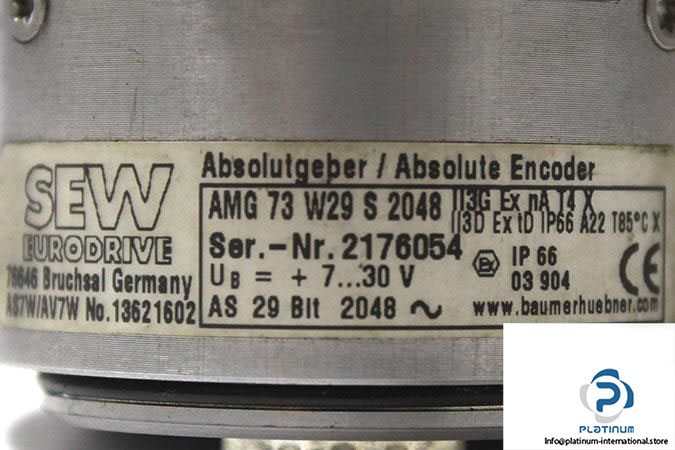

Manufacturer: SEW
Type: Absolute Encoder (Without Plug)
Model: AS7W/AV7W
Order Code: AMG73W29S2048
Part No.: 13621602
Serial No.: 2176054
Shaft Design: Spread Shaft
| Voltage Supply | 7 “ 30 V DC |
| Multi-Turn Resolution | 65536 Revolutions (16 bit) |
| Periods Per Revolution | 2048 |
| Max. Current Consumption | 150 mA |
| Scanning Code | Binary Code |
| Data Transfer | RS485 |
| Electrical Interface | RS485 (Multi-Turn) + sin/cos |
| Max Speed | 6000 1/min |
| Max. Pulse Frequency | 200 kHz |
| Protection Class | IP 66 |
| Explosion Proof | Yes (EX) |
| Operating Temperature | -30 / 60 °C |
