SEW ES1S Incremental Encoder

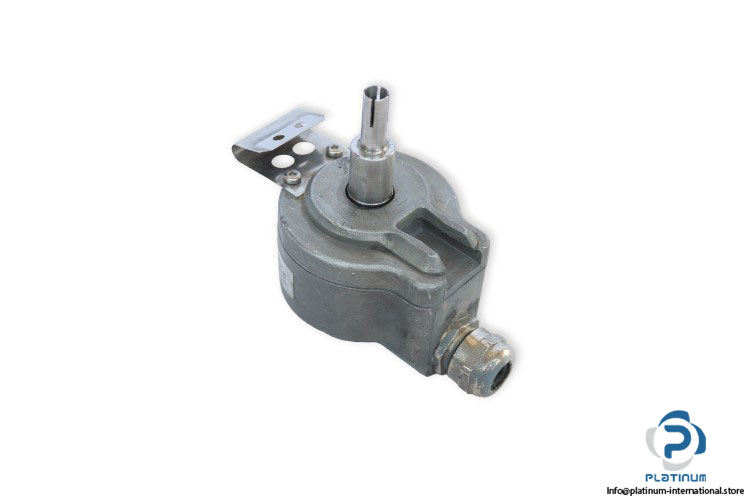

SEW “ EURODRIVE ES1S INCREMENTAL ENCODER
The SEW “ Eurodrive ES1S is a high-resolution incremental encoder engineered for precision feedback and reliable performance in industrial environments. With its 1024 PPR resolution and rugged IP66 protection, it™s ideal for demanding motion control applications.
Manufacturer: SEW “ Eurodrive
Type: Incremental Encoder

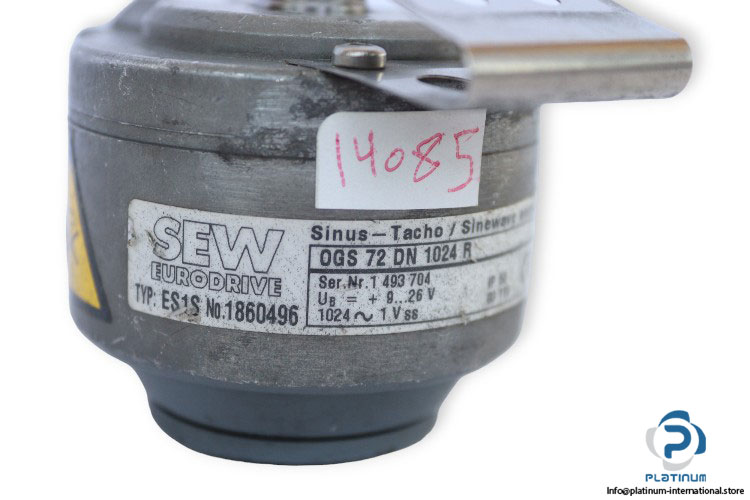

Model: ES1S

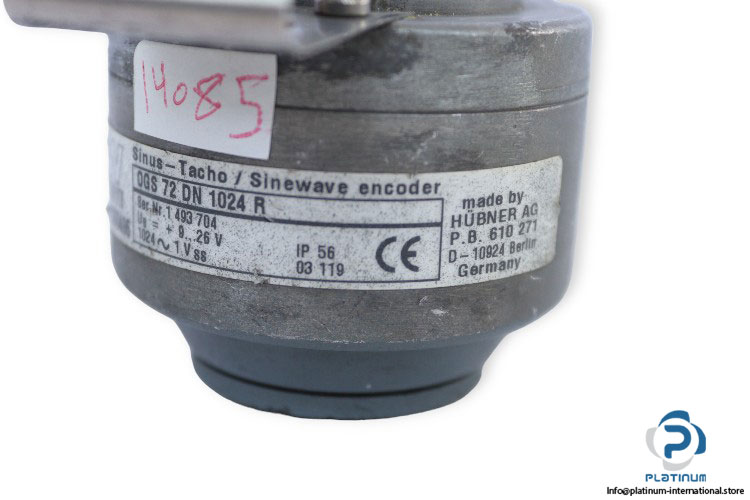

Order Code: OGS 72 DN 1024 R
Part No.: 1860496
Serial No.: 1 493 704
Installed to: DT71-DV225, CT71-200CV
| Shaft Design | Spread shaft |
| Voltage Supply | 9 / 26 VDC |
| Resolution | 1024 Pulse per revolution (PPR) |
| Max. Current Consumption | 160 mA |
| Signal Output | sin/cos 1Vss |
| Max Speed | 10000 rpm |
| Max. Pulse Frequency | 120 kHz |
| Output Connection | Terminal box |
| Protection Class | IP 66 |
| Ambient Temperature | -30 / 60 °C |
