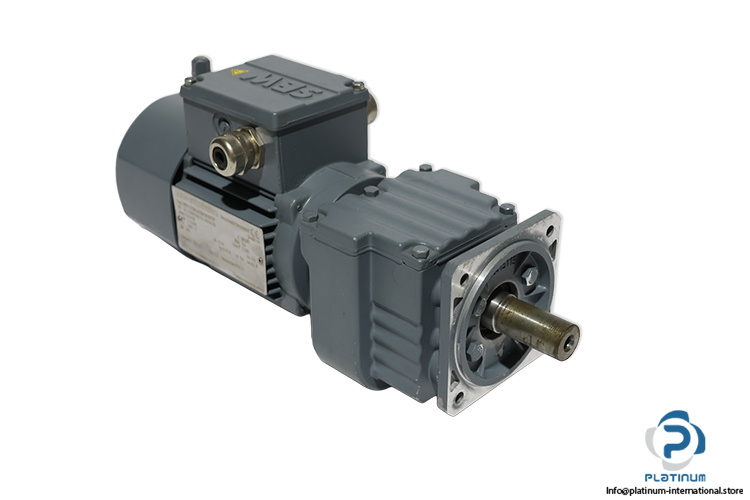

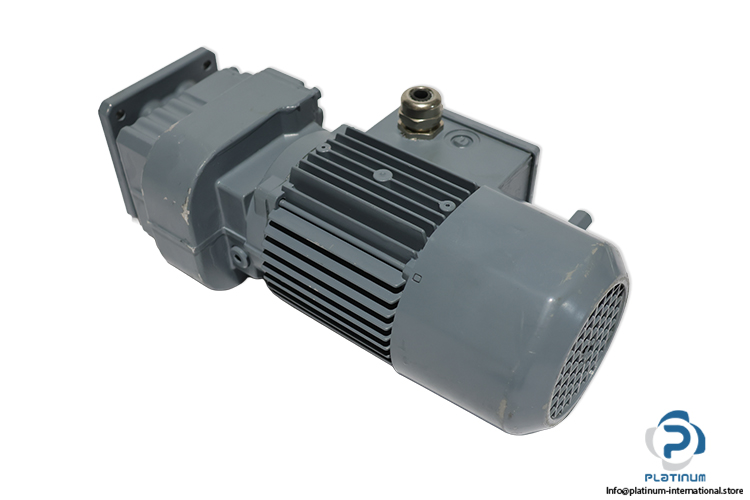

SEW RF07 DT56L4/BMG/HR/TF Gear Motor
재고 있음2 단위즉시 배송 가능
Gear Motor SEW gear motor with 0.12 kW rated power, 26.97 ratio, 24 Nm torque, integrated brake and IP54 protection for industrial drive applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

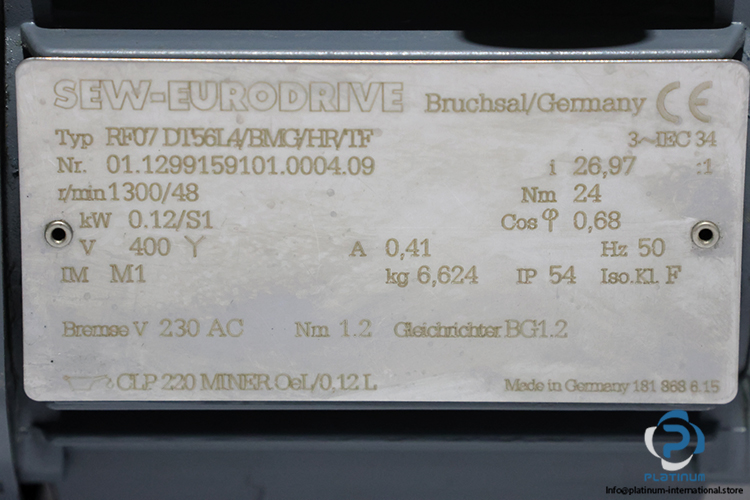

| Part Nr. | 01.1299159101.0004.09 |
| Ratio | 26,97 |
| Rated Torque[Nm] | 24 |
| Rated Power [kW] | 0.12/S1 |
| Rated Voltage [V] | 400 |
| Rated Current [A] | 0,41 |
| Rated Speed [rpm] | 1300/48 |
| Power Factor | 0,68 |
| Rated Frequency [Hz] | 50 |
| Certificate | TUV |
| Duty | S1 |
| Insulation class | F |
| Protection Class | IP 54 |
| Mounting | IM M1 |
| Lubrication | Mineral Oil CLP220/0.12 L |
| Brake Torque[Nm] | 1.2 |
| Brake Voltage [V] | 230 |
| rectifier model | BG1.2 |
| Connection | Terminal box |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101303 |
| Weight | 6,3 |
