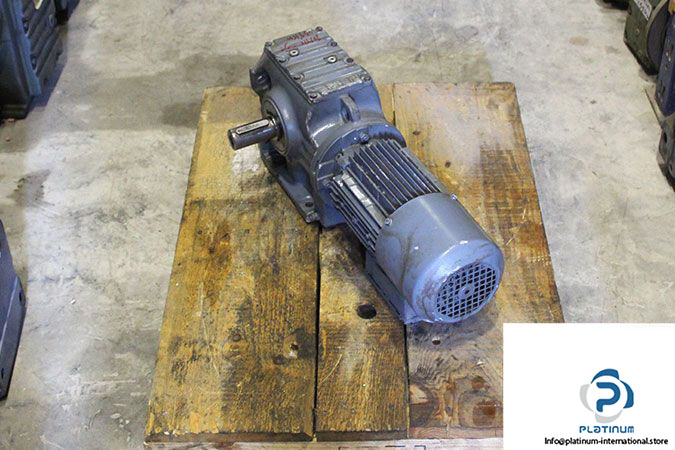

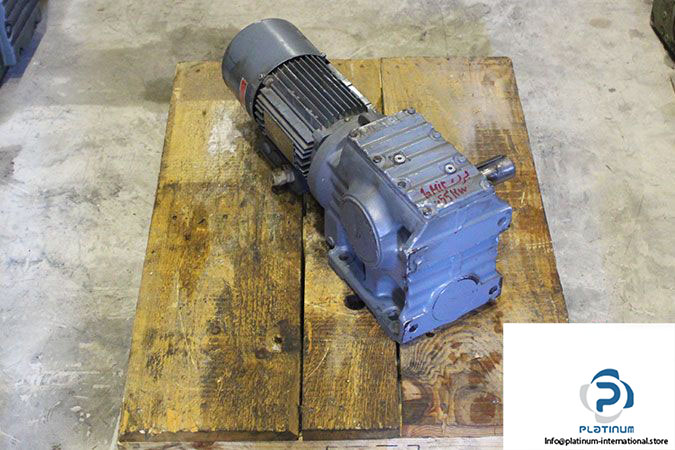

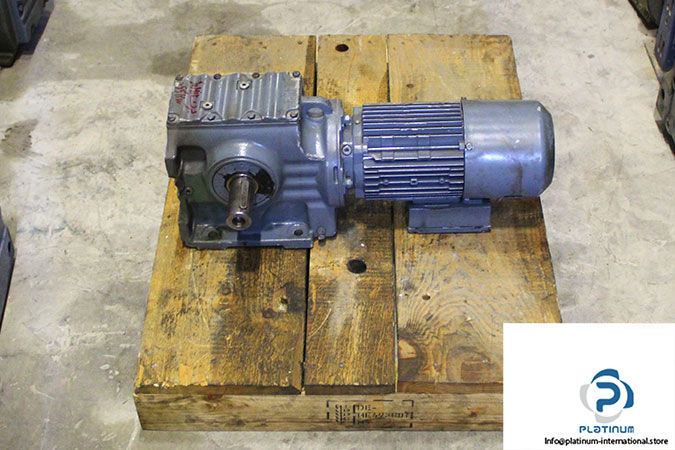

SEW S67 DT80K4/BMG/HR Helical-Worm Gearmotor
Manufacturer: Sew-Eurodrive
Type: Helical Worm Gearmotor
Model: S67 DT80K4/BMG/HR
Sew S67 Gear
Gear Type (S): Helical-Worm Gear Unit, Foot-Mounted
Gear Box Size: 67
Ratio: 134.4
Output Speed at 50 Hz: 10 r/min
Output Speed at 60 Hz: 12 r/min
Shaft Diameter: 35 mm
Lubrication: CLP 680
Oil Quantity: 2.2 L
Sew DT80K4 AC Motor
Series Motor (DT): Attached Motor for Variable Speed Gear Unit
Motor Size: 71
No. of Pole: 4
At 50 Hz
Nominal Voltage (Delta): 220…240 V
Nominal Voltage (Star): 380…415 V
Rated Current (Delta): 3.05 A
Rated Current (Star): 1.75 A
Rated Power: 0.55 kW
Output Speed: 1360 r/min
At 60 Hz
Nominal Voltage (Delta): 240…266 V
Nominal Voltage (Star): 415…460 V
Rated Current (Delta): 2.75 A
Rated Current (Star): 1.59 A
Rated Power: 0.55 kW
Output Speed: 1660 r/min
Power Factor: 0.72
Operating Mode: S1
Insulation Class: F
Mounting Position: M3A
Degree of Protection: IP5
Sew BMG1/HR Motor Options
Max. Braking Torque: 10 Nm
Braking Power: 36 W
Rated Voltage: 380…460 V
Rectifier: BG1.5
Low-Noise Brake with Automatic Manual Brake
Disengagement
Gross Weight: 37.5 kg
