Sick DFS60B-T8AK04096 Incremental Encoder
재고 있음1 단위즉시 배송 가능
200,00$
인크리멘탈 엔코더 Sick STEGMANN DFS60BT8AK04096 고해상도 엔코더, TTL/RS422 인터페이스, 15mm 샤프트 및 IP65 보호 등급. 12,000 RPM에서 최대 600 kHz 출력 제공, 정밀 자동화 제어에 적합.
15AutomationDFS60BT8AK04096EncoderHigh-SpeedhollowIncrementalIndustrialIP65mmRS422SensorshaftSickStegmannTTL
방대한 재고
글로벌 배송
전문 지원
품질 보장

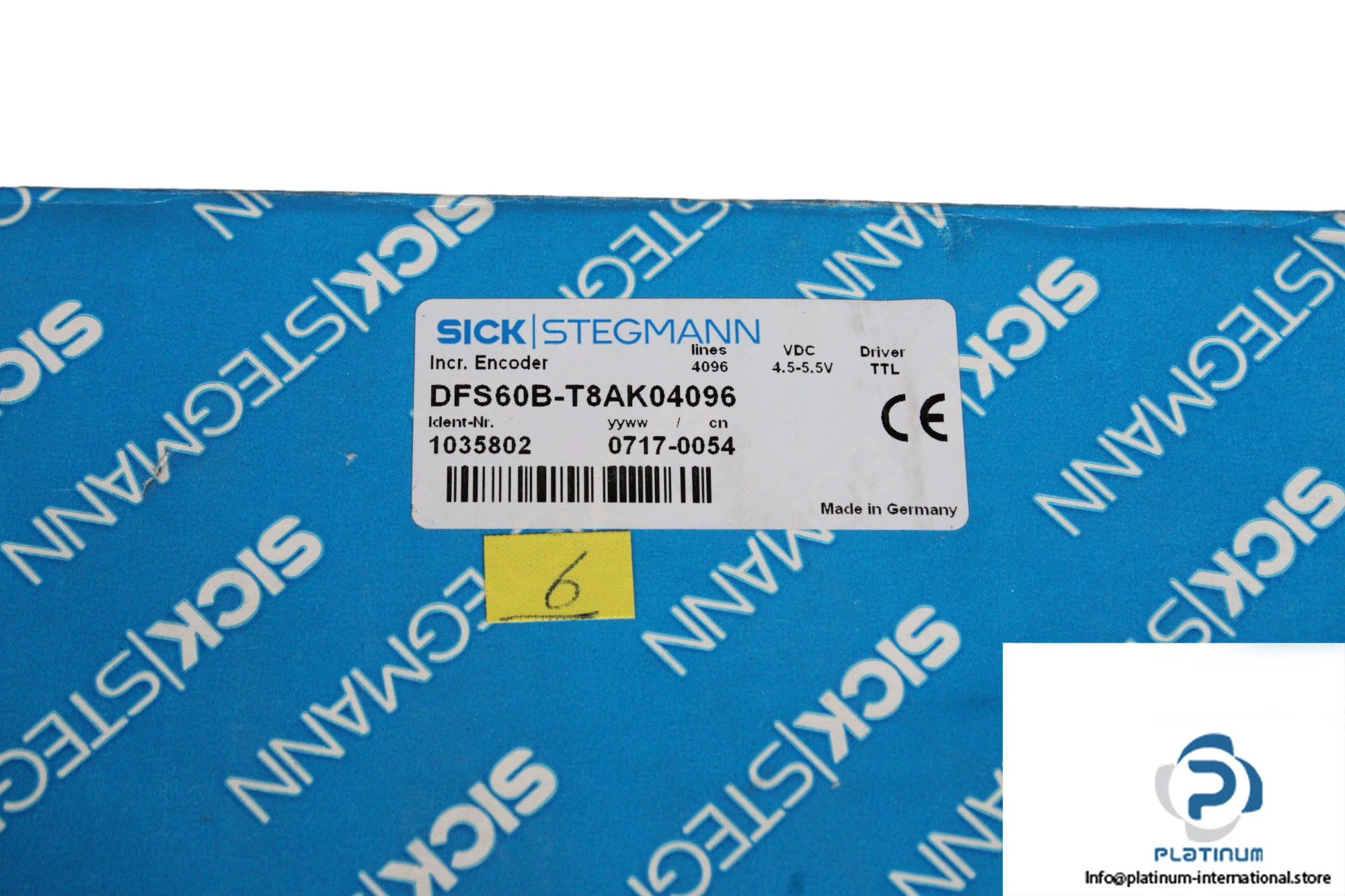

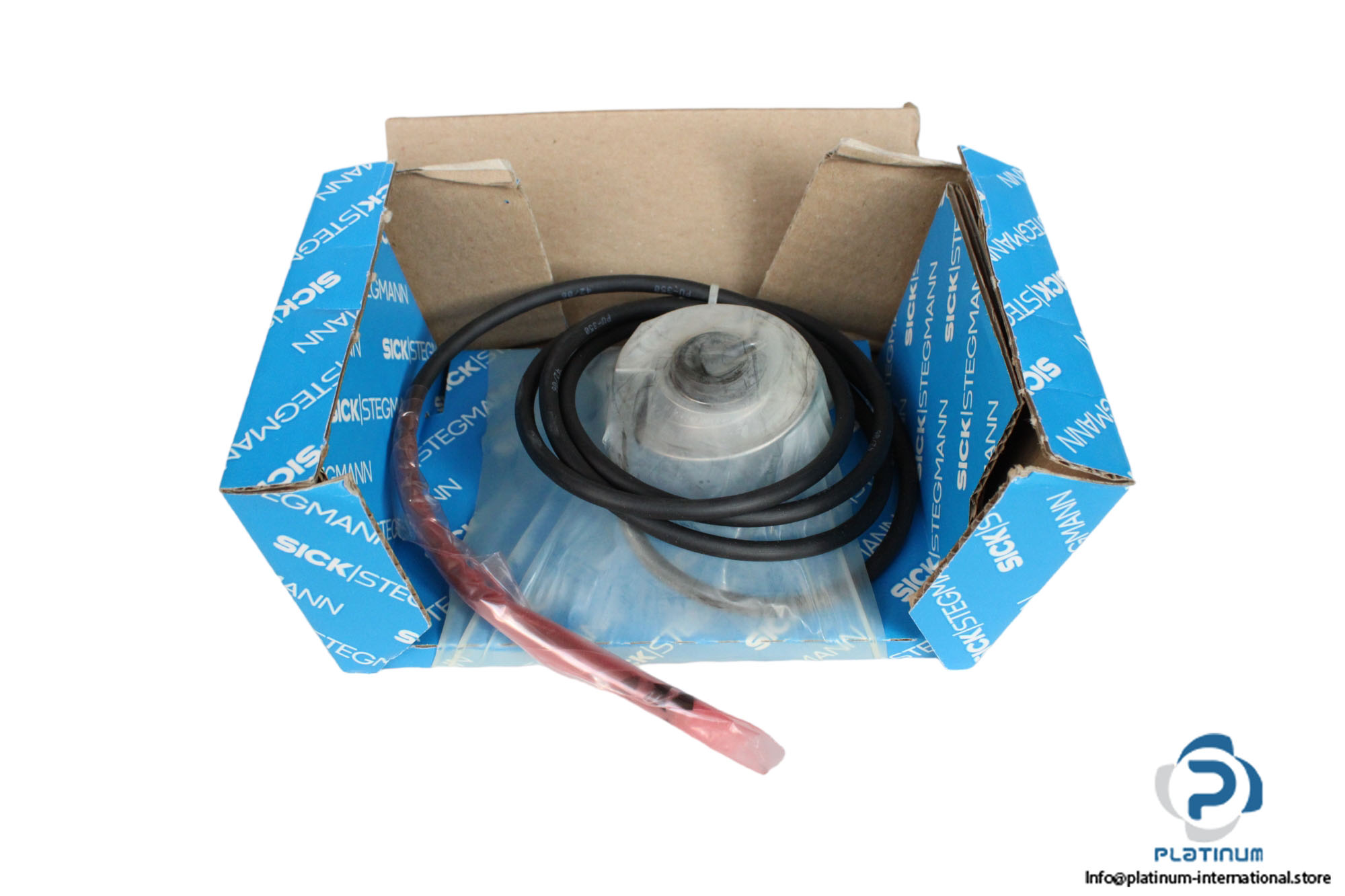

SICK STEGMANN DFS60BT8AK04096 INCREMENTAL ENCODER
The DFS60BT8AK04096 from Sick STEGMANN is a high-resolution incremental encoder designed for demanding industrial automation systems. With advanced TTL/RS422 electrical interface and robust mechanical design, it ensures precise feedback and consistent operation even in harsh conditions.
Manufacturer: Sick STEGMANN
Type: Incremental Encoder
Model: DFS60BT8AK04096
Part No.: 1035802 0717-0054
| Supply Voltage | 4.5 / 5.5 V |
| Load Current | 30 |
| Connection Type | Cable, universal, 1.5 m |
| Electrical Interface | TTL/RS422 |
| Shaft Diameter | 15 mm |
| Maximum Operating Speed | 12,000 U/min-1 |
| Maximum Output Frequency | 600 kHz |
| Mechanical Interface | Through hollow shaft, plastic |
| Working Temperature | -20 / 100 °C |
| Protection Class | IP 65 |
| Dimensions | 65 x 31 x 70 mm |
