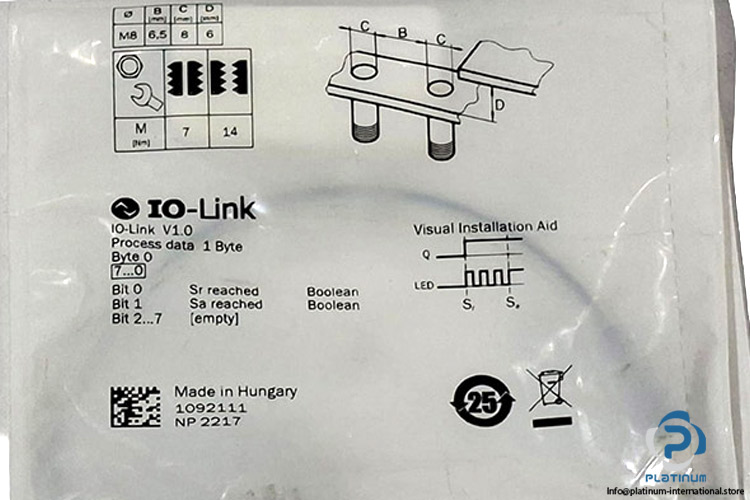

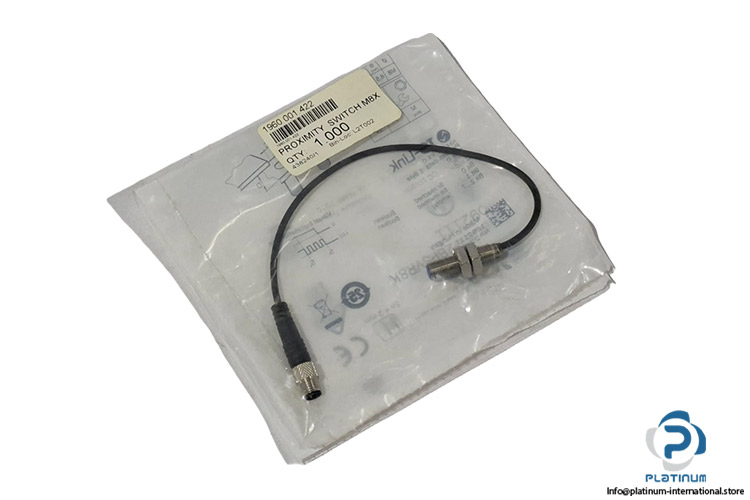

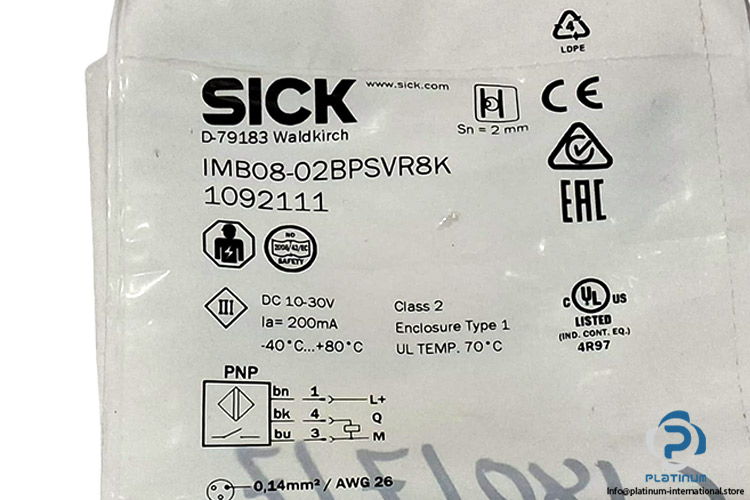

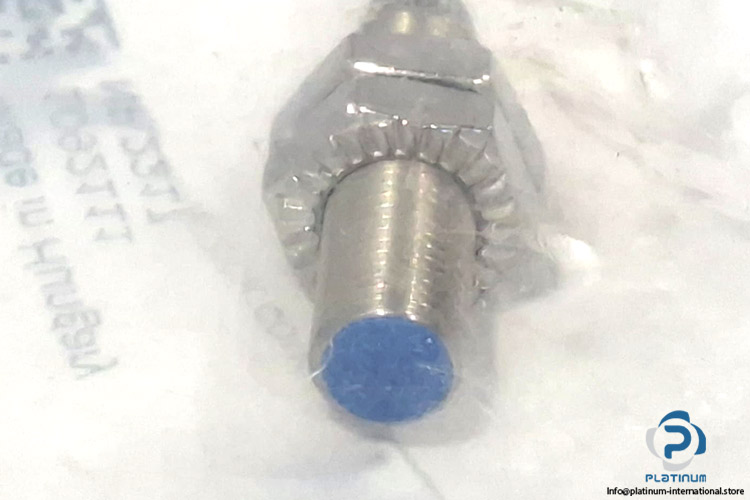

Sick IMB08-02BPSVR8K Inductive Proximity Sensor
신제품
재고 있음5 단위즉시 배송 가능
Inductive Proximity Sensor SICK inductive proximity sensor with M8 housing, PNP output, IO-Link communication, and IP68/IP69K protection for industrial automation and sensing applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Ref no | 1960.001.422 |
| Part No. | 1092111 |
| Class | 2 ,Enclosure Type 1 |
| Code | 438240/1 /L2T002 |
| Housing | Metric |
| Housing Standard | Short |
| Thread size | M8 x 1 |
| Diameter | 8 mm |
| Sensing range | Sn 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | flush |
| Switching frequency | 4,000 Hz |

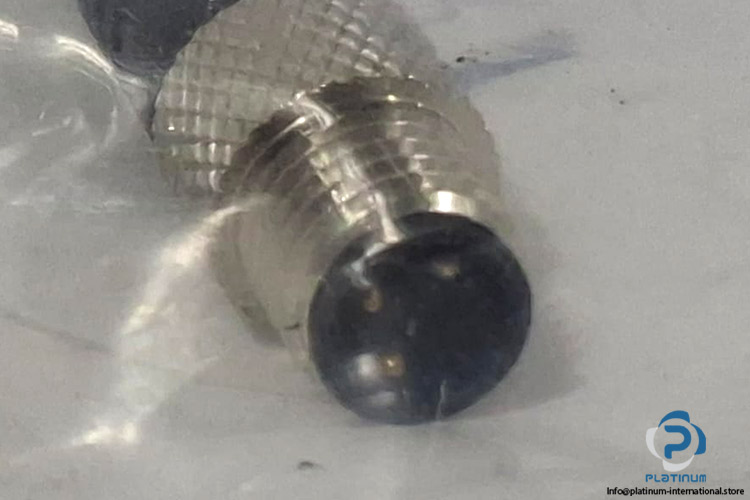

| Connection type | Cable with plug M8, 3-pin, with knurled nut, 0.2 m |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68/ IP69K |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | 10 % |
| Voltage drop | 2 V |
| Hysteresis | 3 % ... 20 % |
| Reproducibility | = 2 % |
| Temperature drift (of Sr) | ± 10 % |
| EMC According to | EN 60947-5-2 |
| Continuous current Ia | 200 mA |
| No load current | 10 mA |
| Ambient operating temperature | –40 °C ... 100 °C |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Sensing face material | Plastic, LCP |
| Housing length | 32 mm |
| Thread length | 28 mm |
| Communication interface | IO-Link V1.0 |
| Communication Interface detail | COM2 (38,4 kBaud) |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099220 |
| Weight | 0,02 |
