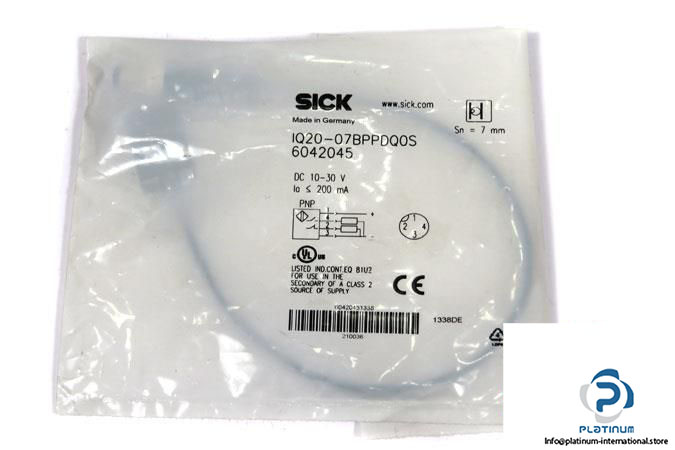

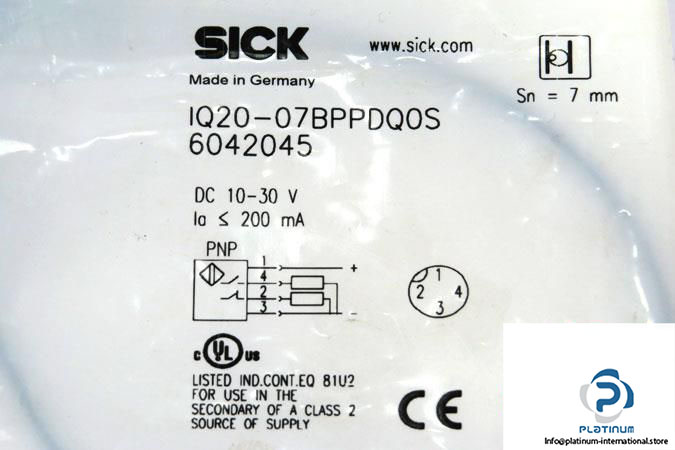

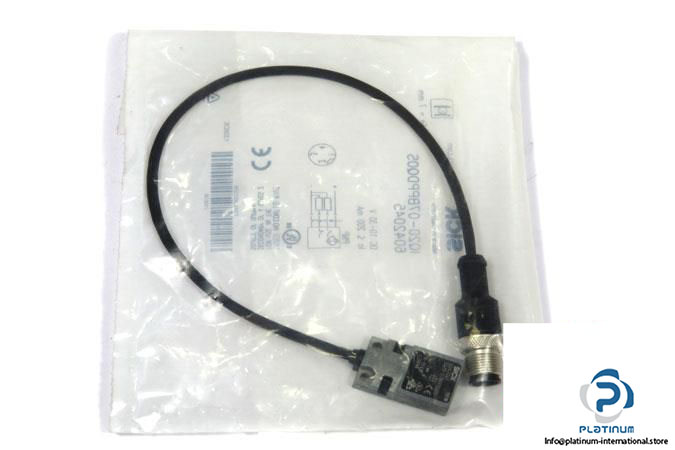

Sick IQ20-07BPPDQ0S Inductive Proximity Sensor
Manufacturer: SICK
Type: INDUCTIVE PROXIMITY SENSOR
Model: IQ20-07BPPDQ0S
Part No.: 6042045
Sensing Range: 7 mm
Time delay before availability: 20 ms
Operating Voltage: 10 … 30 V DC
Ripple: 10%
Switching frequency: 150 Hz
Continuous current: 200 mA DC
Switching output: PNP
Switching mode: Complementary
Connector type: Cable with M12 male connector, 4-pin, 0.3 m
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C
Dimensions (W X H X D): 20 x 32 x 8 mm
Housing: Rectangular
Housing material: Metal, GD ZN
Sensing face material: Plastic PA12
Mounting: Flush
Condition: New
