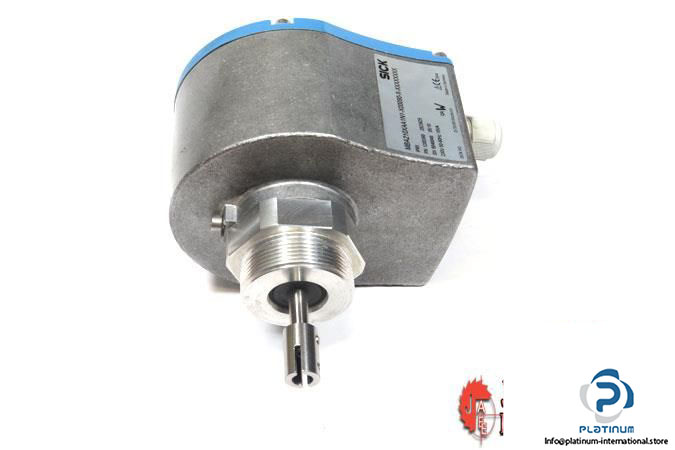

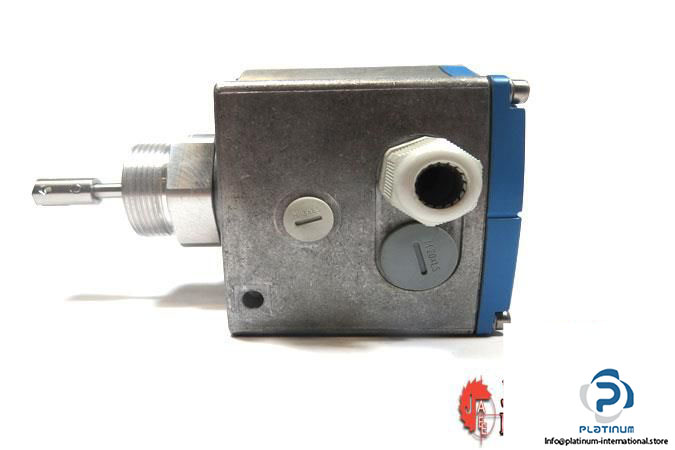

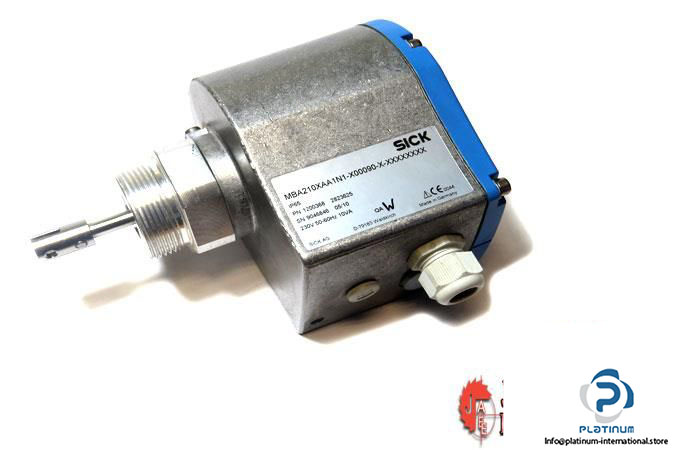

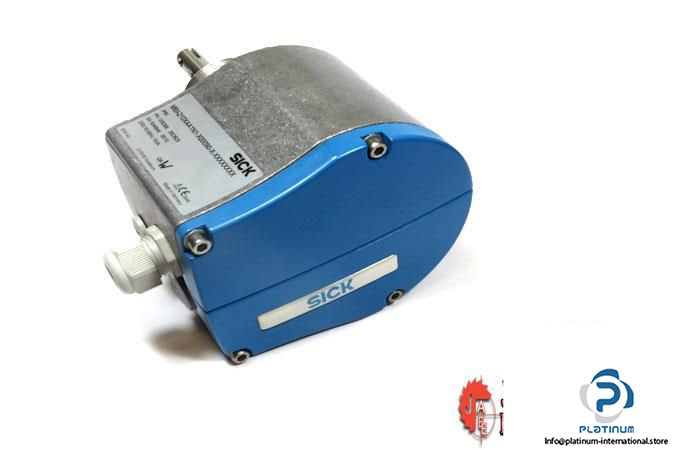

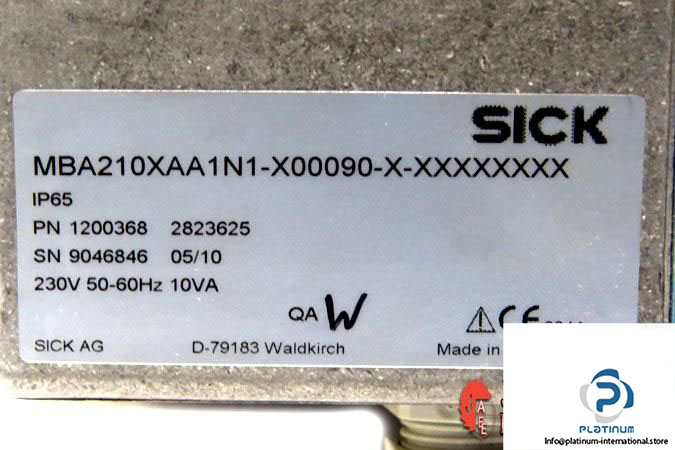

Sick MBA210XAA1N1-X00090 Level Indicator With Rotating Paddle

Manufacturer: SICK

Type: LEVEL INDICATOR WITH ROTATING PADDLE FOR BULK MATERIALS

Model:  MBA210XAA1N1-X00090

Part No.: 1200368

Power Supply: 230 V, 50/60 Hz 115 V, 50/60 Hz

Power consumption: 3 VA

Switch contacts: one isolated change over contact rating 250 V AC, 2A or 60 V DC, 1A

Drive rotation rate: 1 / min

Connection material, type:  Stainless steel, 1½” thread

Bearing/sealing: Ball bearing DT: stainless steel with shaft-sealing ring

Shaft material, type: Stainless steel, Short shaft nozzle (paddle and shaft attachable)

Immersion depth: 90 mm

Operating pressure: -0.5 … +3 bar

Housing material: Aluminum Cast

Ambient operating temperature: Up to 80 ºC  (176 ºF)

Enclosure rating: IP65

Condition: New
