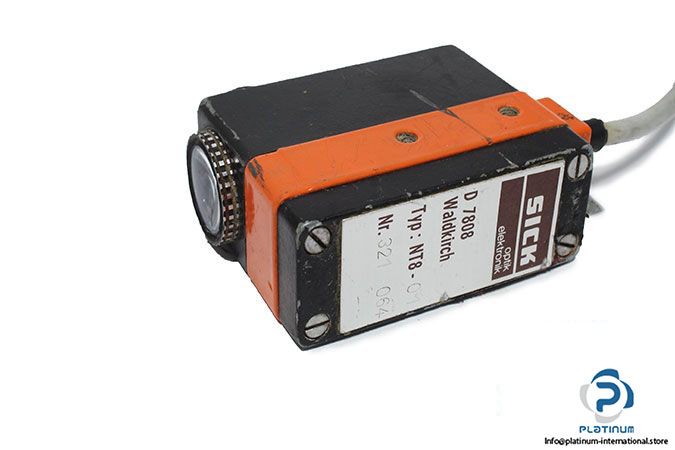

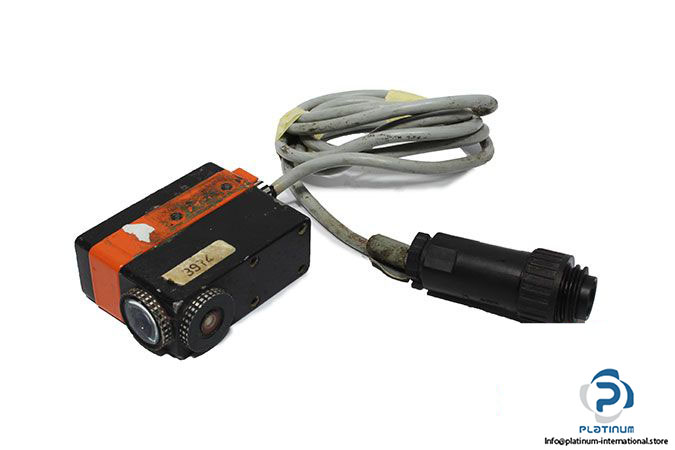

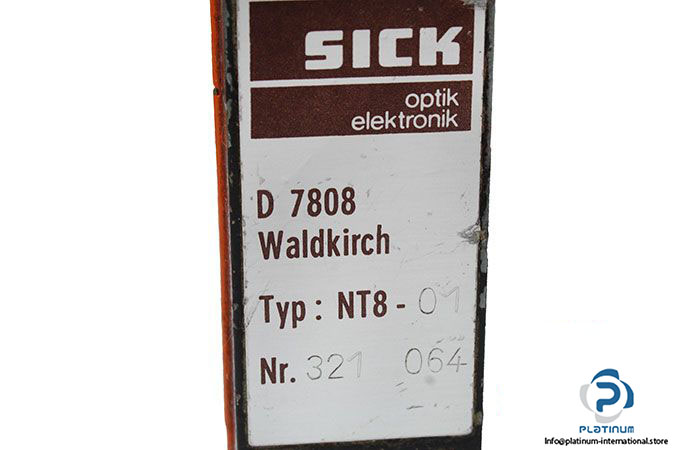

Sick NT8-01412 Contrast Sensor

Manufacturer: SICK

Type: Contrast Sensor

Model: NT8-01412

Part No.: 1005981

Replaced by: KT5W-2N1116

Sensing Distance: 9 mm

Light Source: White

Light Spot Direction: Vertical

Power Consumption Lamp: 840 mA

Function: Light/dark switching

Supply Voltage: 10 … 30 V DC

Power Consumption: < 50 mA
Switching Frequency: 10 kHz

Switching Output: NPN

Connection type: Cable, 5-wire, 2 m

Dimensions: 76 X 30 X 58.8 mm

Enclosure Rating: IP67

Housing Material: Zinc diecast

Ambient Storage Temperature: –25 … +85 °C

Weight: 0.5 Kg
