Sick SKS36-HFA0-S05 Motor Feedback Encoder
신제품
요청 시 제공 가능
30,00$
Motor Feedback Encoder
SICK SKS36-HFA0-S05 encoder with 7/12 VDC input, 128 sine/cosine periods per revolution, 4,096 total steps, and 35 mm outer diameter for accurate servo feedback.
방대한 재고
글로벌 배송
전문 지원
품질 보장

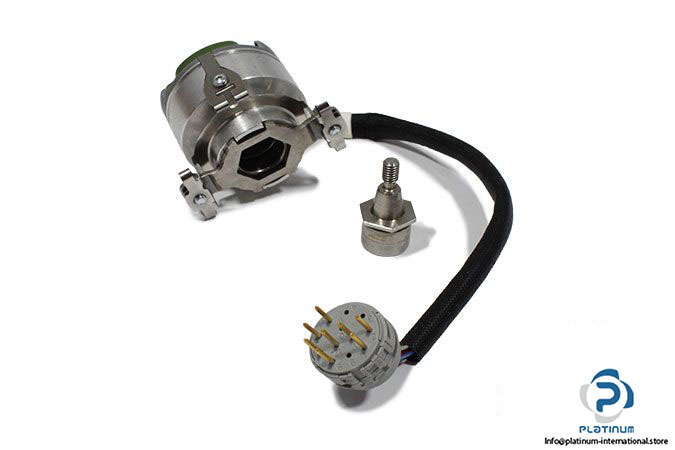

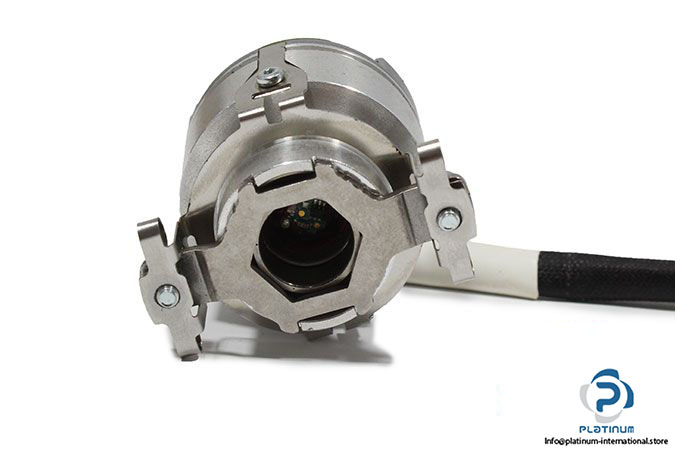

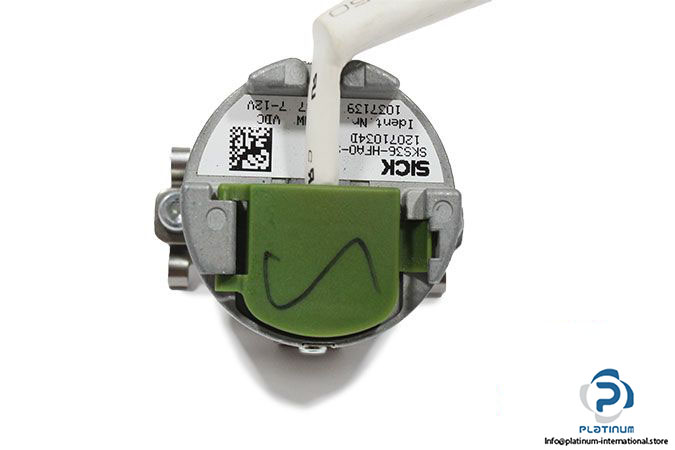

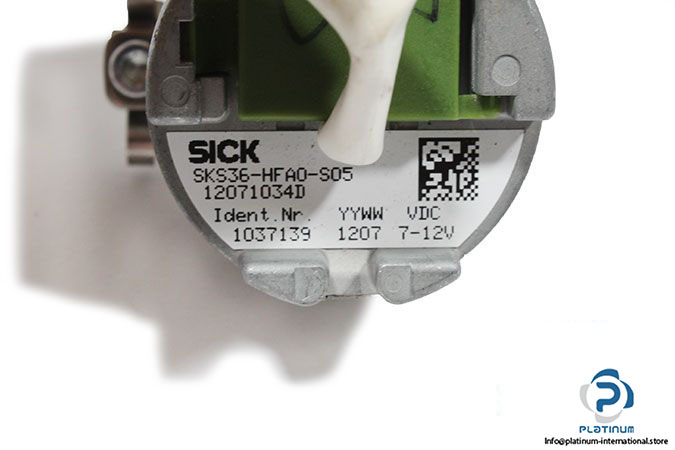

SICK SKS36-HFA0-S05 Motor Feedback Encoder
The SICK SKS36-HFA0-S05 is a precision motor feedback encoder designed to provide accurate position and speed detection for servo and motion control applications. With compact dimensions and reliable signal output, it ensures high performance and long-term stability in industrial environments.
Manufacturer: SICK
Type: Motor Feedback Encoder
Model: SKS36-HFA0-S05
Ident. No.: 1037139
REF No.: 12071034D, 1207
| Voltage | 7 / 12 VDC |
| Sine/Cosine Periods Per Revolution | 128 |
| Number of Absolute Ascertainable Revolutions | 1 |
| Total Number of Steps | 4,096 |
| Diameter (Inner/Outer) | 11.7 mm / 35 mm |
