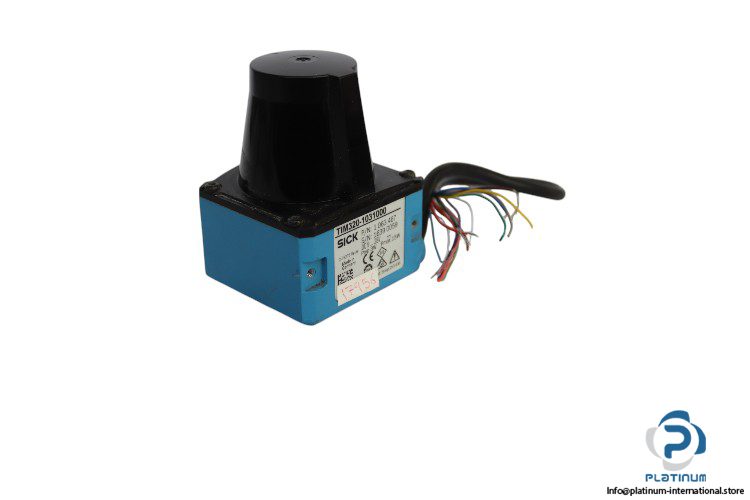

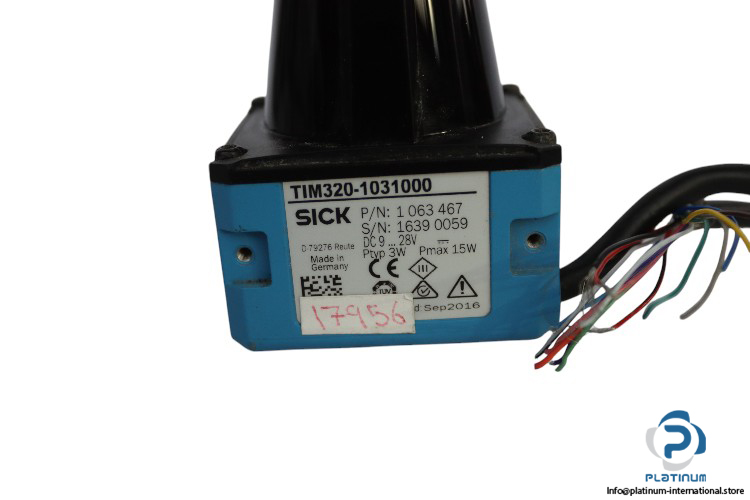

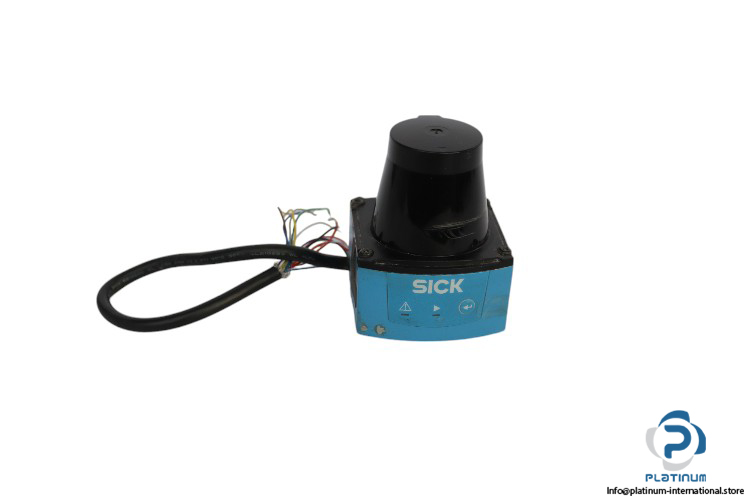

Sick TIM320-1031000 2D Lidar Sensor
Sick 2D Lidar Sensor TIM3201031000
Sick 2D Lidar Sensor TIM3201031000 is a high-performance sensor designed for indoor applications. It offers reliable range measurement and scanning for various industrial and automation purposes. Below are the key technical specifications:
- Manufacturer: Sick
- Type: 2D Lidar Sensor
- Model: TIM3201031000
- Part No.: 1063467
- Range: TiM
- Series: TIM3XX
Technical Data:
- Measurement Principle: HDDM
- Application: Indoor
- Working Range: 0.05 to 4 m
- Scanning Range: 2 m
- Supply Voltage: 9 to 28 V DC
- Power Consumption (Typ.): 3 W
- Power Consumption (Max.): 16 W
- Output Current: max. 100 mA
- Scanning Frequency: 15 Hz
- Light Source: Infrared (850 nm)
Interfaces:
- USB: Micro USB
- Function: AUX, parameterization
Inputs & Outputs:
- Digital Inputs (DI): 4
- Digital Outputs (DO): 3 (PNP, additional 1 x Device Ready)
Additional Features:
- Optical Indicators: 2 LEDs (ON, switching status)
- Laser Class: 1
- Response Time: min. 67 ms
- Connection Type: 1 x 15-pin D-sub HD male connector (0.9 m)
- Aperture
