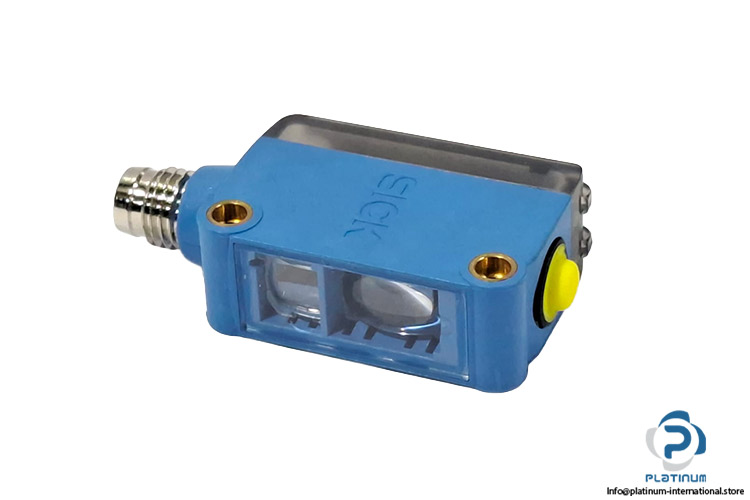

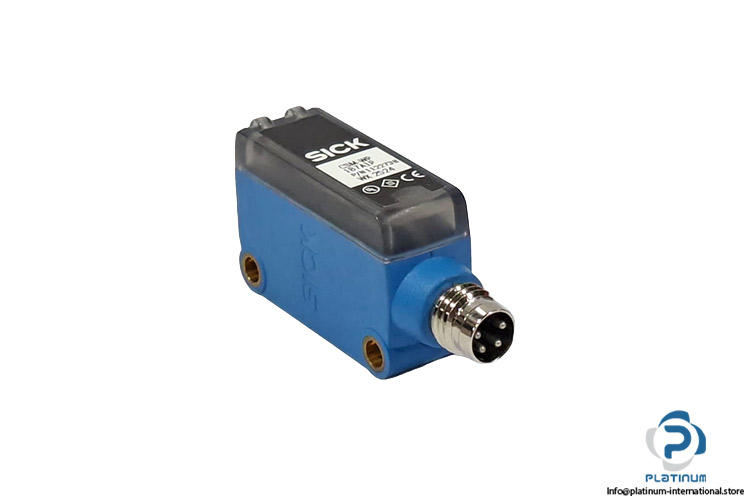

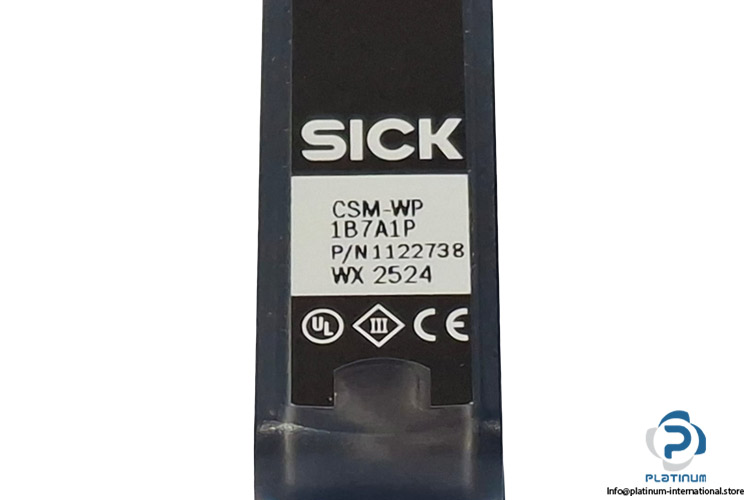

SICK CSM-WP1B7A1P Color Sensor
| Part No. | 1122738 |
| Code | WX 2524 |
| Enclosure Type | 1 |
| Class | 2 |
| Sensing Distance | up to 15 mm |
| Sensing Tolerance | ± 4 mm |
| Light Source | Pinpoint LED, RGB |
| Light Spot Size | 4.9 mm × 10.1 mm |
| Switching Output | PNP (Push-Pull) |
| Supply Voltage | 12 V DC to 24 V DC |
| Connection Type | 4-pin M8 male connector |
| Enclosure Rating | IP67 |
| Housing material | ABS |
| Temperature range | –10 °C ... +55 °C |
| wavelengths of light | 640 nm, 525 nm, 470 nm |
| Dimension | 12 mm x 31,5 mm x 21 mm |
| Stock Key | EU-002 |
| Condition | New |
| SKU | 1099654 |
| Weight | 0,04 |
