Siemens 1FT7105-5SC71-1BE3 Servo Motor
중고
재고 있음2 단위즉시 배송 가능
2 250,00$
SERVO MOTOR
Siemens high-torque servo motor with 56 Nm rated torque, 2000 min-1 speed, 272 V input, and IP64/54 protection, ideal for precision industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장

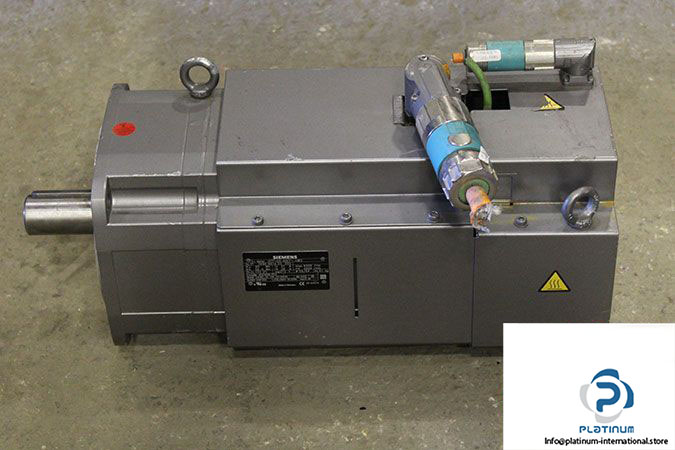

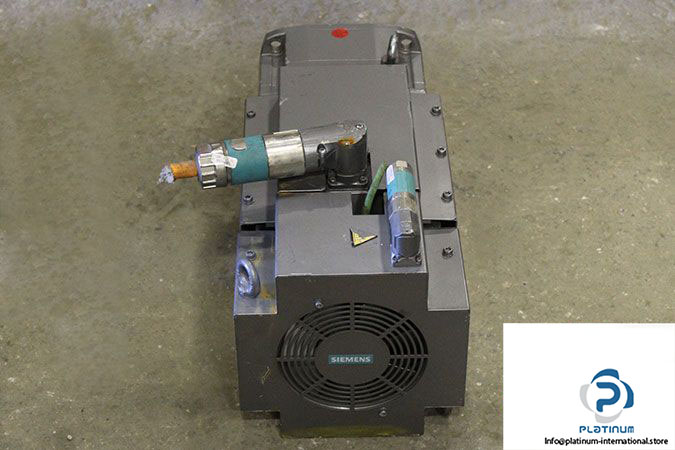

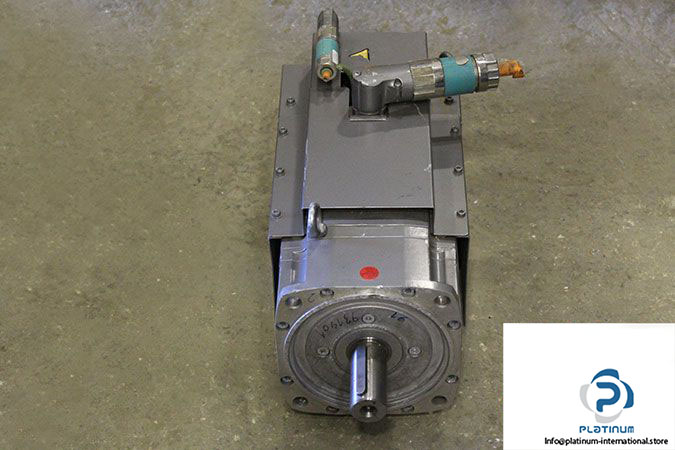

SIEMENS 1FT7105-5SC71-1BE3 SERVO MOTOR
The Siemens 1FT7105-5SC71-1BE3 is a high-performance servo motor designed for precision motion control in demanding industrial applications. With robust torque delivery, reliable braking, and advanced encoder feedback, it ensures accurate and efficient operation in automation systems.

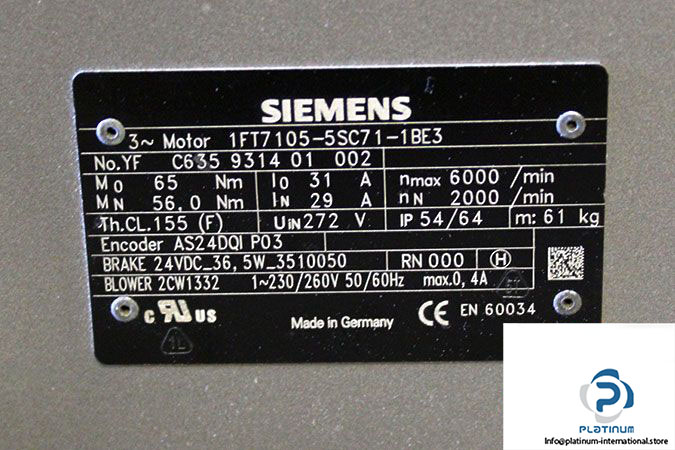

Manufacturer: Siemens
Type: Servo Motor
Model: 1FT7105-5SC71-1BE3
Part No.: C635 9314 01 002
| Rated Voltage | 272 V |
| Rated Current | 29 A |
| Stall Current | 31 A |
| Rated Speed | 2000 min-1 |
| Max. Speed | 6000 min-1 |
| Rated Torque | 56 Nm |
| Stall Torque | 65 Nm |
| Thermal Class | F |
| Protection Class | IP64/54 |
| Encoder Model | AS24DQI P03 |
| Brake Voltage | 24 VDC |
| Brake Power | 36.5 W |
| Brake Model | 3510050 |
| Blower Model | 2CW1332 |
| Electrical Rating | 230/260 VAC / 0.4 A |
| Frequency | 50/60 Hz |
