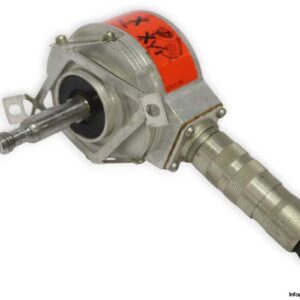

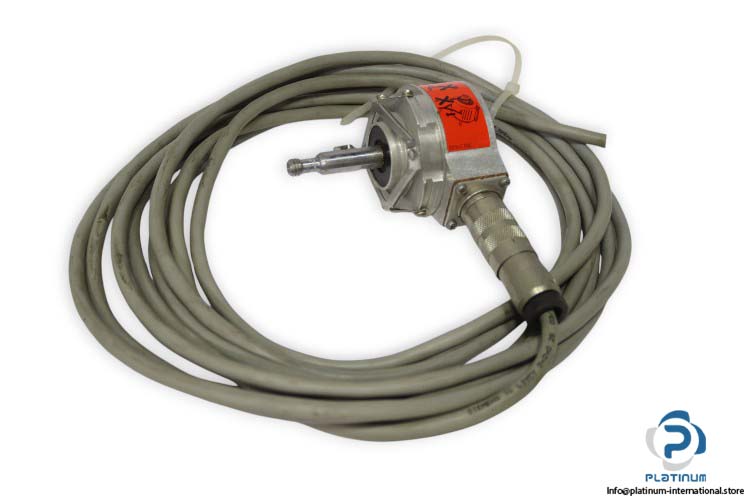

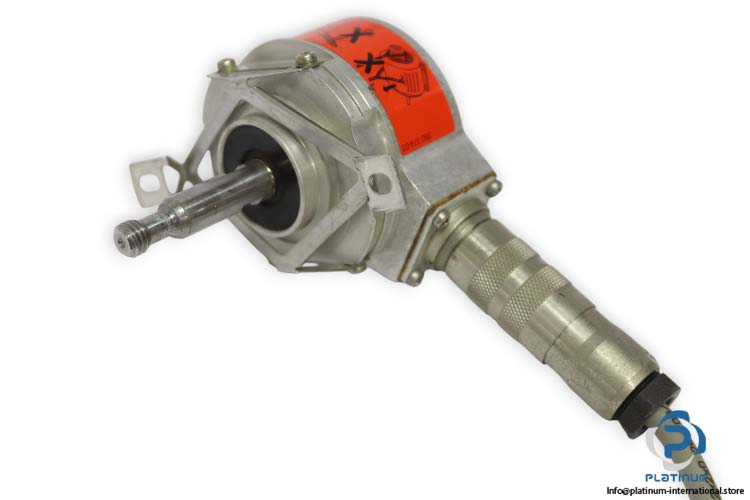

Siemens 1XP8001-1/1024 538 725-11 Rotary Pulse Encoder With Cable
High-resolution Siemens rotary pulse encoder with solid shaft and 1024 PPR. Designed for precision motion feedback with IP66 protection and 12-pin connection. Includes industrial signal cable.
Manufacturer: SIEMENS
Type: Rotary Pulse Encoder with Cable

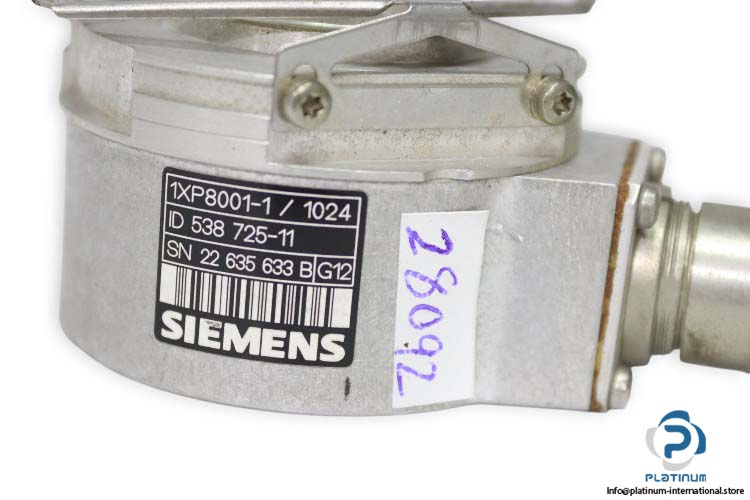

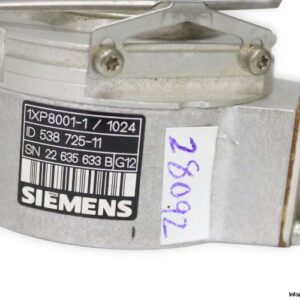

Model: 1XP8001-1/1024
Part No.: 538 725-11

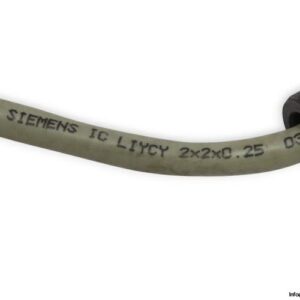

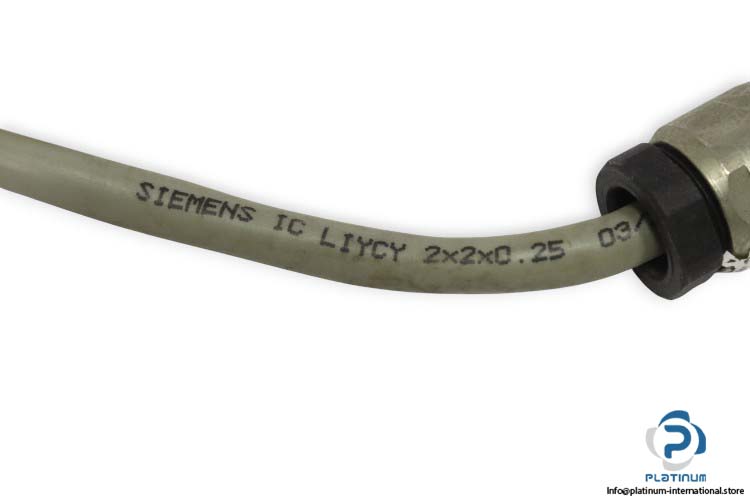

Cable Part No.: IC LIYCY 2X2X0.25 03
The Siemens rotary pulse encoder is designed for high-precision feedback in motion control applications. With a robust IP66 protection rating and a solid shaft construction, this encoder provides reliable performance even in harsh industrial environments. The unit supports 1024 pulses per revolution, delivering accurate positioning and speed control. Suitable for integration in automated systems, the encoder comes with a matching industrial-grade signal cable for efficient connectivity.
| Shaft Diameter | 12 mm |
| Shaft Type | Solid Shaft |
| Resolution | 1024 Pulses per Revolution (PPR) |
| Supply Voltage | 10 / 30 V DC |
| Max Load Current per Output | 100 mA |
| Output Circuits | HTL (Push Pull) |
| Max Rotation Speed | 9000 rpm |
| Frequency | 160 kHz max. |
| Protection Class | IP66 |
| Electrical Connection | Connector 12-pin |
| Ambient Temperature | -20 / 100 °C |
