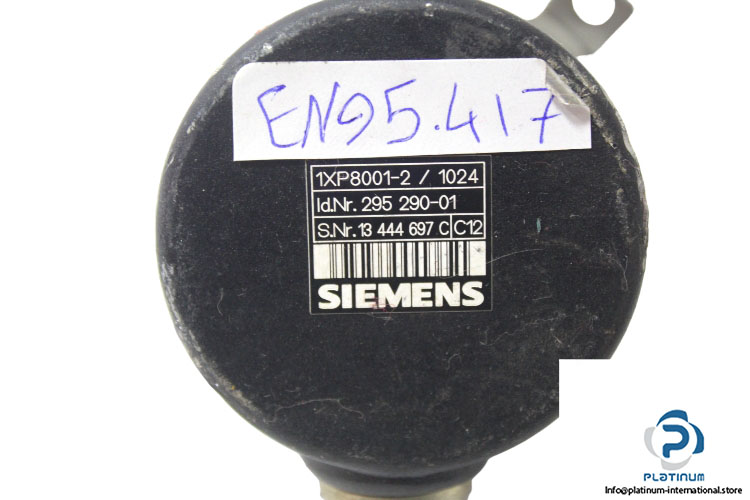

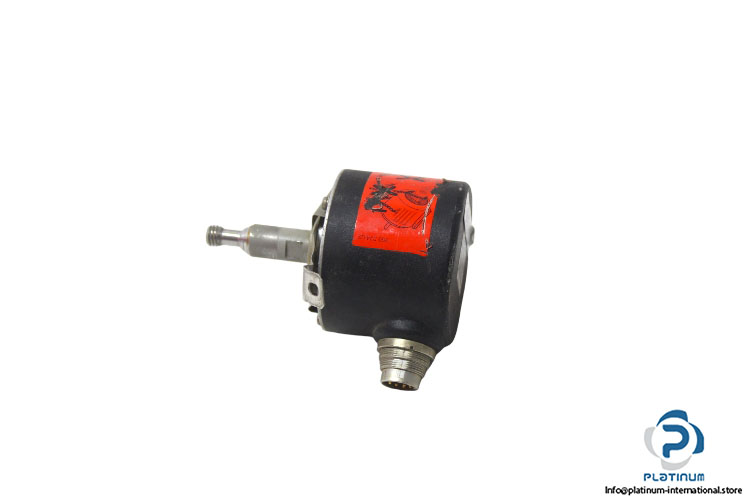

Siemens 1XP8001-2/1024 Rotary Pulse Encoder
SIEMENS 1XP8001-2/1024 ROTARY PULSE ENCODER
The Siemens 1XP8001-2/1024 rotary pulse encoder is engineered for high-precision motion control and feedback systems. With robust construction and TTL signal compatibility, it ensures accurate positioning even in demanding industrial environments.
Manufacturer: Siemens
Type: Rotary Pulse Encoder
Model: 1XP8001-2/1024
ID No.: 295 290-01
S No.: 13 444 697 C
| Voltage | 5 V |
| Current | Max. 150 mA |
| Signal | TTL |
| External Diameter | 58 mm |
| Thread Shaft | M8 |
| Maximum Pulses per Turn | 1024 pulses |
| Operating Temperature | -40 / +80°C |
| Degree of Protection | IP64 |
