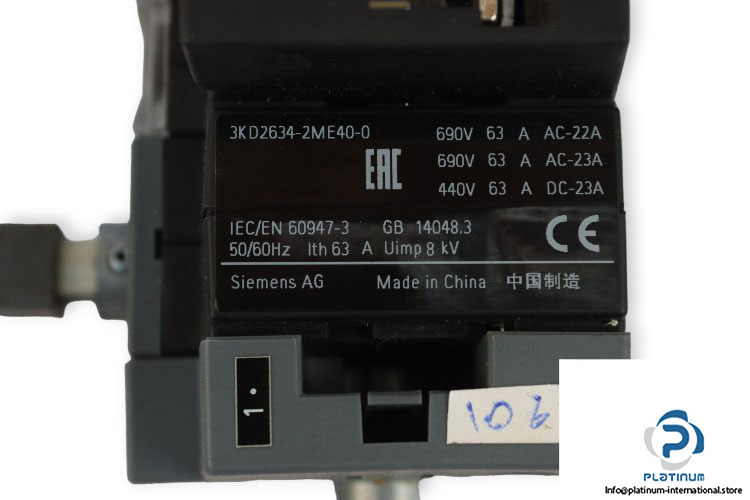

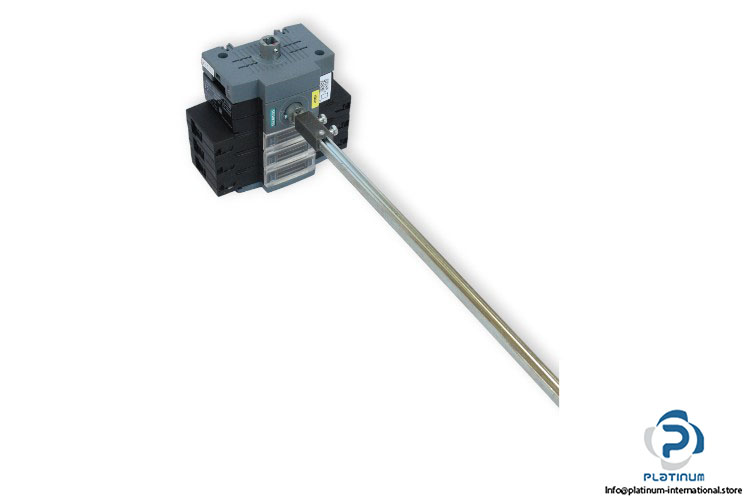

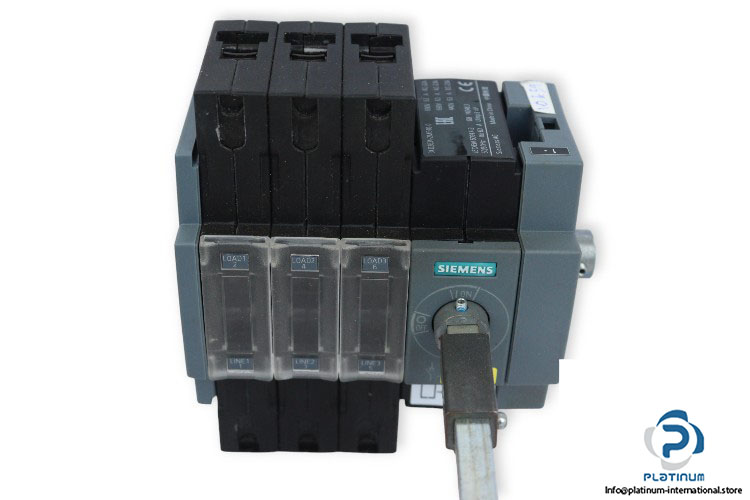

Siemens 3KD2634-2ME40-0 Switch Disconnector
제조사: Siemens 유형: 스위치 분리기 MNR: 3KD2634-2ME40-0 제품 브랜드명: SENTRON 제품명칭: 3KD 스위치 분리기 작동 요소 설계: 핸들 있음
Manufacture: Siemens
Type: Switch disconnector
MNR: 3KD2634-2ME40-0
Product brand name: SENTRON
Product designation: 3KD switch disconnector
Design of the actuating element: With handle
Type of the Driving Mechanism: Side operating mechanism
Size: 1
Type of Device: fixed mounting
Surge voltage resistance rated value: 8 kV
Thermal current Ith: 63 A
Frequency: 50/60 Hz
Switching rating:
AC-22: 690 V,63 A
AC-23: 690 V,63 A
AC-23: 440 V,63 A
Operational current rated value: 63 A
No. of CO contacts for auxiliary contacts: 3
Power loss: with conventional rated thermal current per pole 1 W
Operating power: at AC-23 A at 500 V rated value 37 kW
Operating temperature: -25 … 70°C
Protection class: IP20
No. of poles: 3
Standard: IEC/IEN 60947-3
Type of Electrical Connection for Main Current Circuit: Box terminal
Dimensions: 119 x 103.3 x 70 mm
