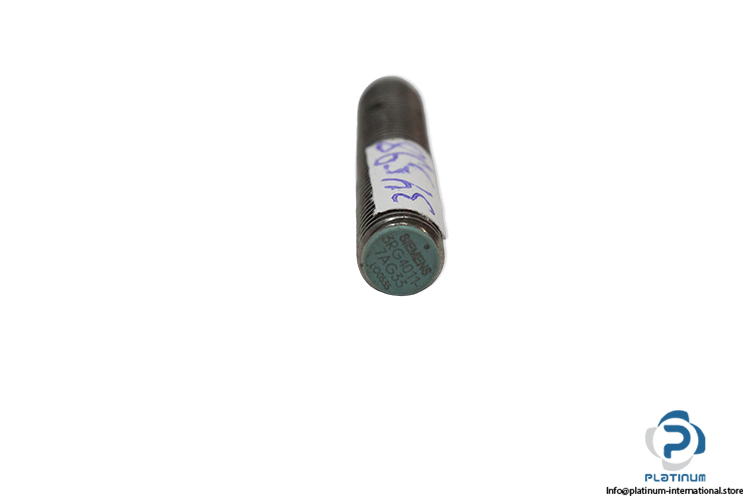

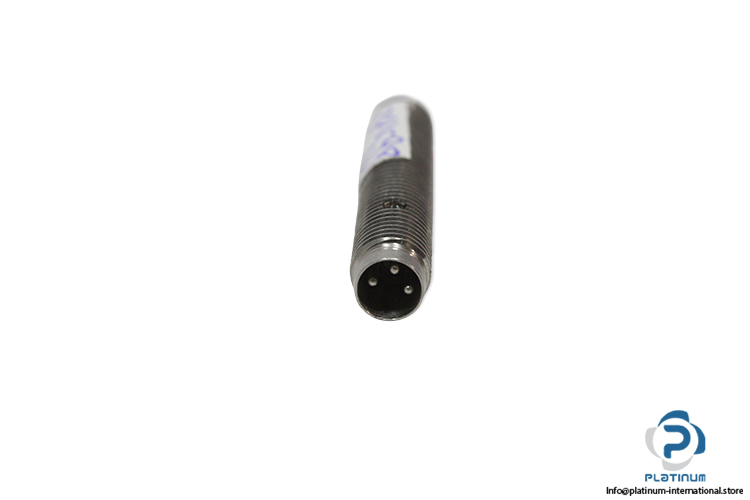

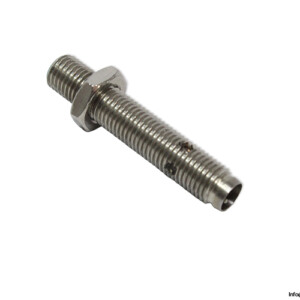

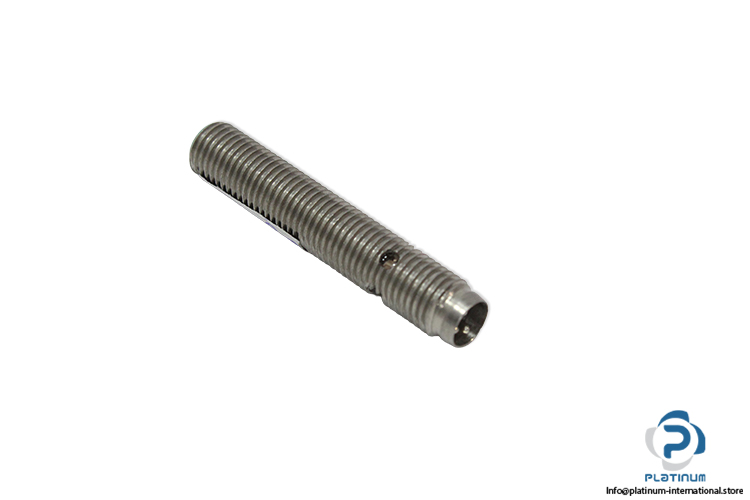

Siemens 3RG4011-7AG33 Inductive Sensor
Siemens 3RG4011-7AG33 Inductive Sensor
The Siemens 3RG4011-7AG33 inductive sensor is designed for reliable non-contact detection of metal objects in industrial automation systems. It features compact construction, PNP switching output, and durable metal housing suitable for demanding environments.
Manufacturer: Siemens
Type: Inductive Sensor
Model: 3RG4011-7AG33
| Sensing Range | 1.5 mm |
| Rated Operating Voltage | 10 / 30 V DC |
| Switching Output | PNP 1 Normally Open (NO) |
| Switching Output Current | 200 mA |
| Electrical Connection | Connector M12 4-Pin |
| Material | Metal |
| Sensor Length, Diameter | 45, 8 mm |
| Protection Class | IP67 |
| Ambient Temperature | -25 / 70 °C |
