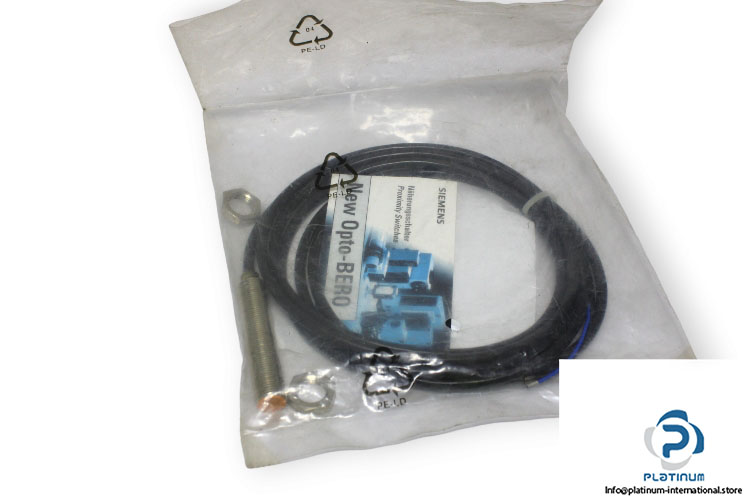

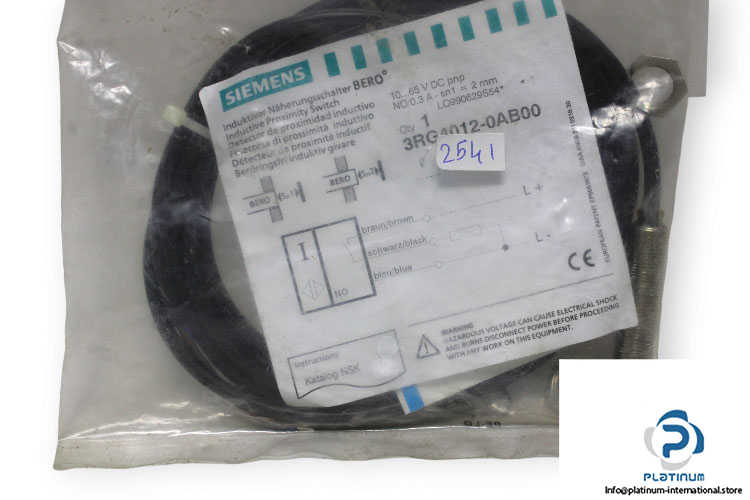

Siemens 3RG4012-0AB00 Inductive Proximity Switch Sensor
SIEMENS 3RG40120AB00 INDUCTIVE PROXIMITY SWITCH SENSOR
The Siemens 3RG40120AB00 is a high-quality inductive proximity switch sensor designed for precise object detection in demanding industrial environments. Featuring a robust brass housing, high switching frequency, and IP67 protection, it ensures reliable operation in harsh conditions.
Manufacturer: Siemens
Type: Inductive Proximity Switch Sensor
MNR: 3RG40120AB00
| Operating Voltage Range | 10 / 65 V DC |
| Rated Operational Current | 300 mA |
| Sensing Distance | 2 mm |
| Electrical Design | PNP |
| Output Configuration | NO |
| Connection | Connector M12 |
| Frequency of Operating Cycles | 4 kHz |
| Cable Type | 3 x 0.25 qmm, PUR LiYY11Y |
| Material | Brass |
| Housing | Cylindrical |
| Diameter | 12 mm |
| Output Wires | 3 Wires |
| Overall Length | 56 mm |
| Cable Length | 2 m |
| Ambient Temperature Range | -25 / 85 °C |
| Degree of Protection | IP67 |
