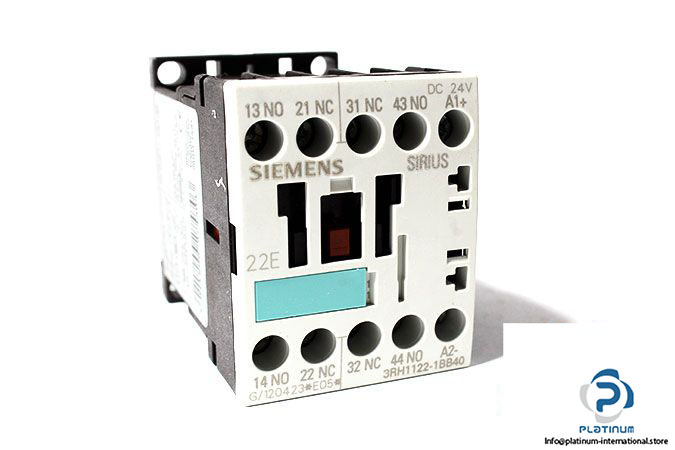

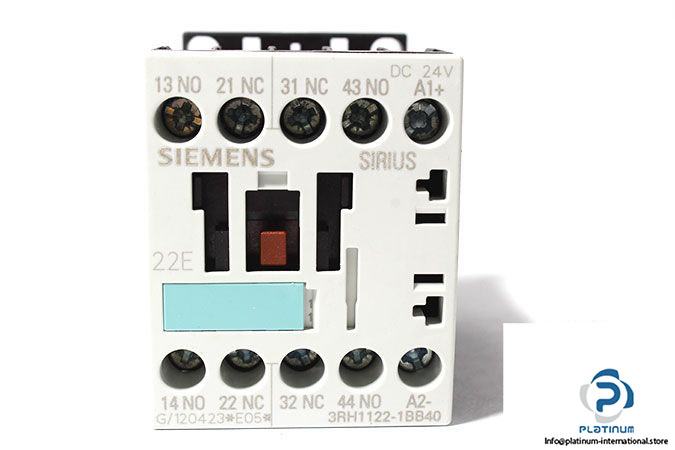

Siemens 3RH1122-1BB40 Contactor Relay
중고
Manufacturer: Siemens
Type: Contactor Relay
Brand Name: Sirius
Model: 3RH1122-1BB40
Successor Type: 3RH2122-1BB40
Designation: Auxiliary Contactor
Size: S00
Identification Number: 22E
Control Supply Voltage: 24 V DC
Rated Operating Current:
6 A (230 V AC)
3 A (400 V AC)
Auxiliary Contacts:
2 Normally Open
2 Normally Closed
(2NO and 2NC)
Rated Insulation Voltage: 690 V AC
Rated Surge Voltage: 6 kV

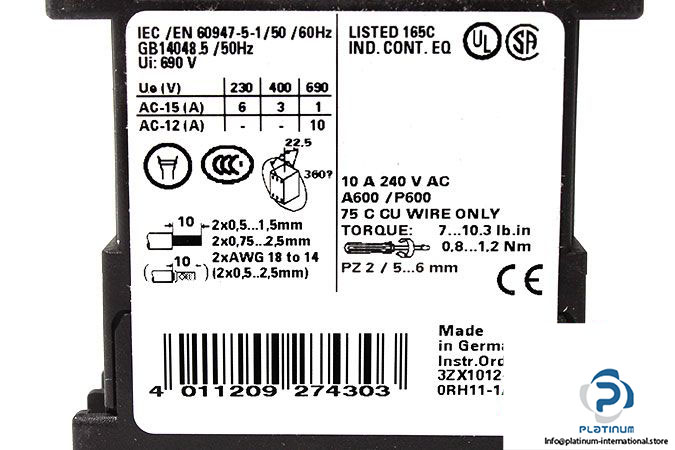

Standard: IEC /EN 60947-5-1
Protection Class IP: IP20
Operation Ambient Temperature: -25 … 60 °C
Dimensions (W x D x H): 45 x 72 x 57.5 mm
Weight: 0.27 kg
