Siemens 3RH1344-1AF00 Contactor Relay
신제품
재고 있음1 단위즉시 배송 가능
Siemens Sirius 3RH1344-1AF00 접촉기 릴레이, 4NO+4NC 보조 접점, 110 V AC 코일, S00 크기, IEC/EN 60947-5-1 준수. 산업 제어 시스템용 컴팩트하고 신뢰성 있는 제품.
방대한 재고
글로벌 배송
전문 지원
품질 보장

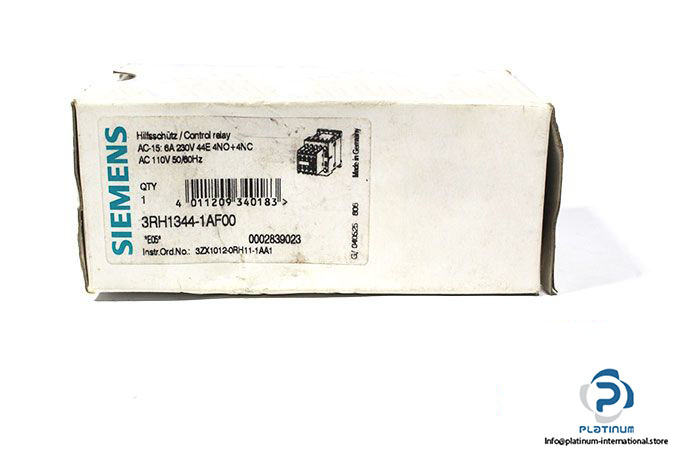

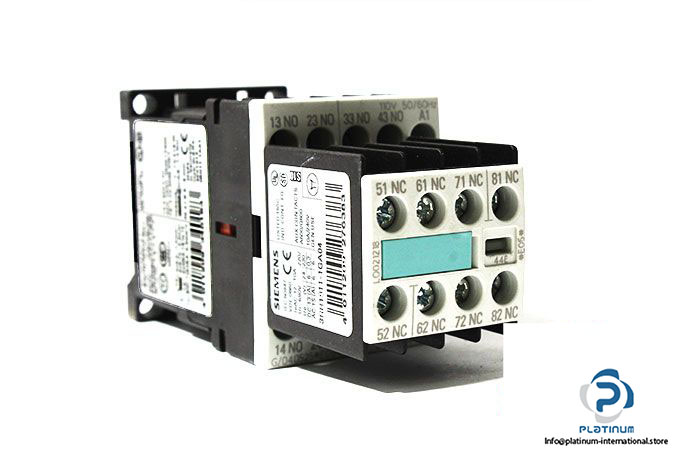

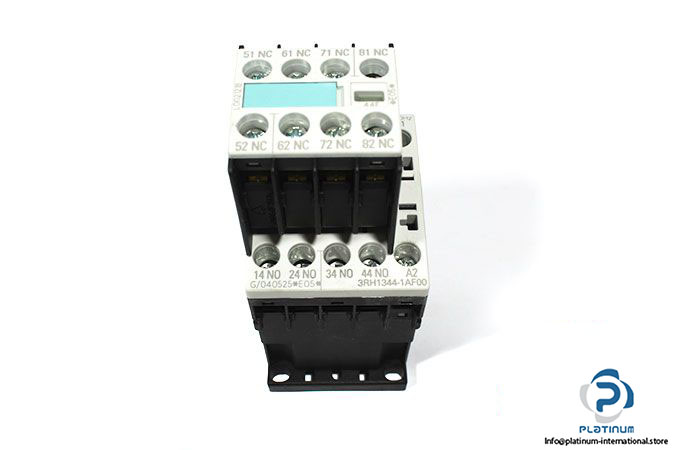

SIEMENS SIRIUS 3RH1344-1AF00 CONTACTOR RELAY
The Siemens Sirius 3RH1344-1AF00 is a high-quality contactor relay designed for reliable switching and control in industrial automation systems. Engineered to meet IEC/EN 60947-5-1 standards, it delivers dependable performance with a compact S00 size form factor, making it ideal for a wide range of control panel applications.
Manufacturer: Siemens
Type: Contactor Relay
Brand Name: Sirius
Model: 3RH1344-1AF00
Successor Type: 3RH2344-1AF00

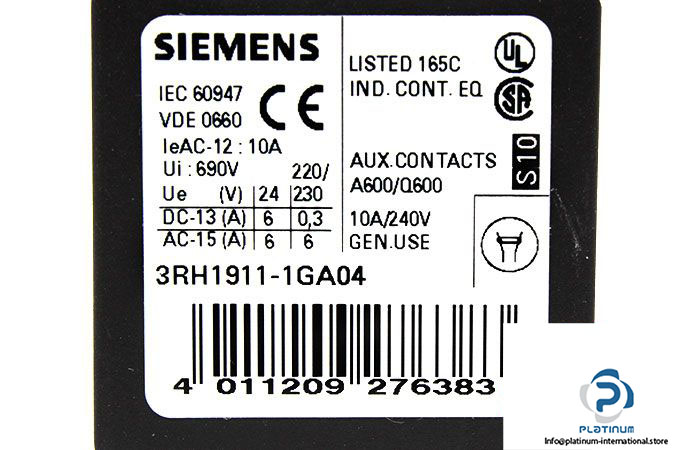

Auxiliary Type: 3RH1911-1GA04
REF NO: 0002839023
INST ORD NO: 3ZX1012-0RH11-1AA1
Designation: Auxiliary Contactor
Size: S00
Identification Number: 44E
| Control Supply Voltage | 110 V AC |
| Control Supply Voltage Frequency | 50 / 60 Hz |
| Rated Operating Current | 6 A (230 V AC), 3 A (400 V AC) |
| Auxiliary Contacts | 4 Normally Open (NO) and 4 Normally Closed (NC) |
| Rated Insulation Voltage | 690 V AC |
| Rated Surge Voltage | 6 kV |

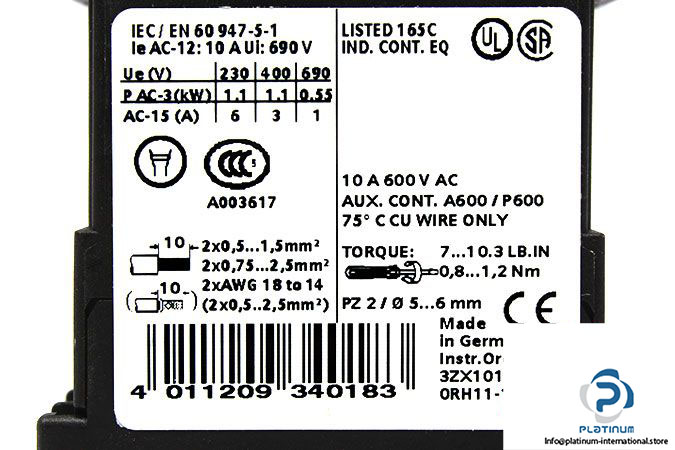

| Standard | IEC/EN 60947-5-1 |
| Protection Class IP | IP20 |
| Operation Ambient Temperature | -25 / 60 °C |
| Dimensions (W x D x H) | 45 x 111 x 57.5 mm |
