Siemens 3RT1016-1AP02 Contactor
신제품
재고 있음1 단위즉시 배송 가능
CONTACTOR
Reliable Siemens 3-pole contactor with 4¯kW rated power at 400¯V AC. Features 1NC auxiliary, IP20 protection, and compact S00 size “ ideal for motor and power switching.06603-Pole3RT1016-1AP02400V4kW9AACAC-3CompliantContactorControlDeviceIECIndustrialIP20motorPowersS00SiemensSiriusSwitchgearVDE
방대한 재고
글로벌 배송
전문 지원
품질 보장

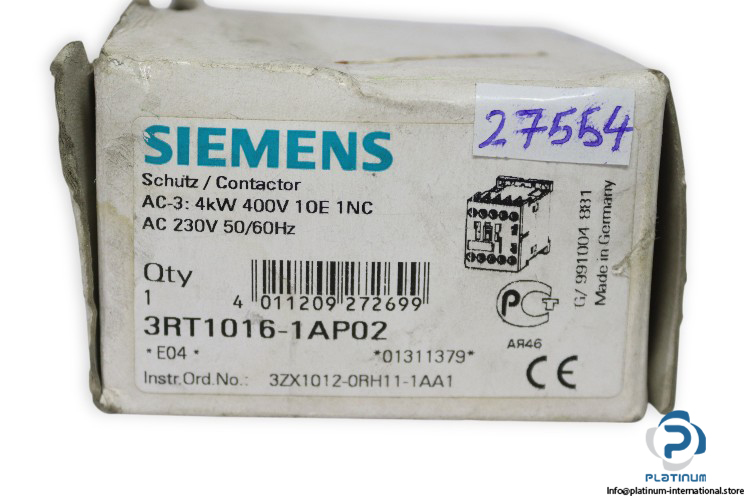

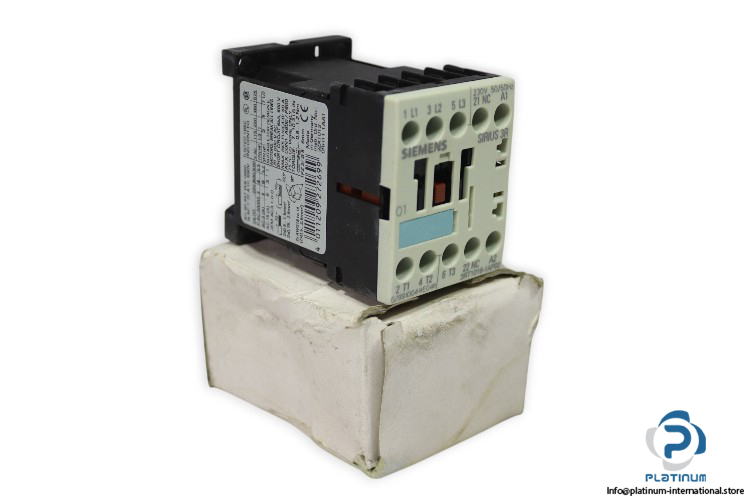

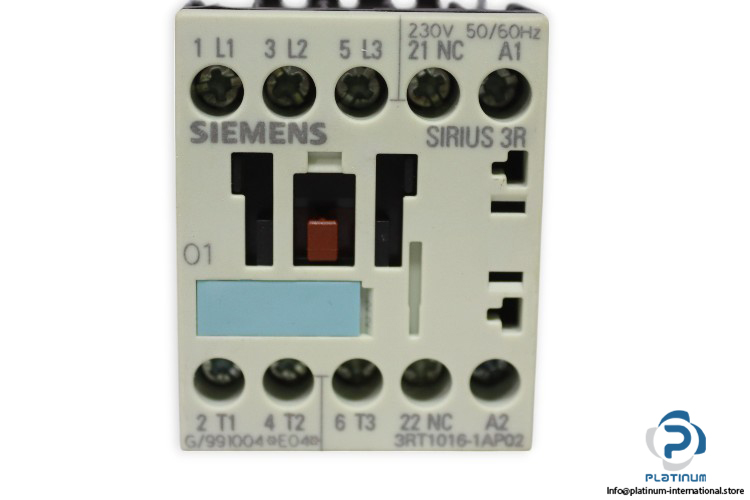

SIEMENS SIRIUS 3RT1016-1AP02 CONTACTOR
Compact and high-performance contactor from the Siemens SIRIUS series, designed for reliable motor and power control. Suitable for a wide range of industrial applications, it offers long-lasting performance with excellent switching capacity and integrated auxiliary contact.
Manufacturer: Siemens
Type: Contactor
Model (MNR): 3RT1016-1AP02
Order No.: 3ZX1012-0RH11-1AA1
EAN No.: 4011209272699
Ref. No.: 01311379
Brand Name: SIRIUS
| Size | S00 |
| Control Supply Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Rated Operating Power | 4 kW (400 V AC) |
| Rated Current AC-1 (Ie) | 22 A |
| Rated Operating Current AC-3 | 9 A (400 V AC) |
| Rated Operating Current AC-15 | 3 A (400 V AC) |
| Insulation Voltage (Ui) | 690 V |
| Auxiliary Contacts | 1 Normally Closed (1NC) |
| Protection Class | IP20 |
| No. of Poles | 3 |
| Operation Ambient Temperature | -25 to 60 °C |

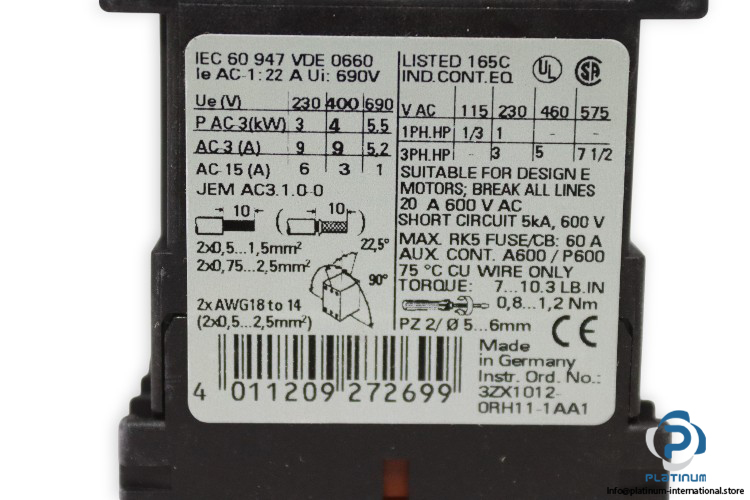

| Standard | IEC 60947 / VDE 0660 |
| Dimensions (W × D × H) | 57.5 × 45 × 72 mm |
