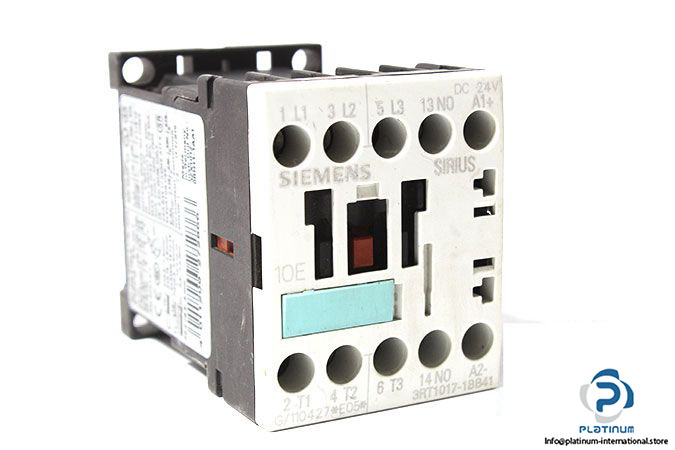

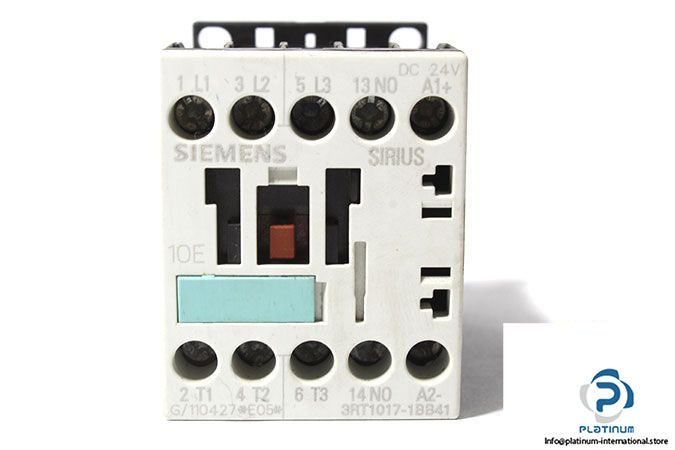

Siemens 3RT1017-1BB41 Power Contactor
SIEMENS SIRIUS 3RT1017-1BB41 POWER CONTACTOR
The Siemens Sirius 3RT1017-1BB41 is a compact and reliable power contactor designed for controlling electric motors and switching power circuits. Built to meet IEC/EN 60947-4-1 standards, it offers high operational safety, durability, and efficiency for industrial control applications.
Manufacturer: Siemens
Type: Power Contactor
Brand Name: Sirius
Model: 3RT1017-1BB41
Successor Type: 3RT2017-1BB41
Size: S00
| Control Supply Voltage | 24 V DC |
| Rated Operating Power | 5.5 kW (400 V AC) |
| Rated Operating Current | 6 A (230 V AC), 3 A (400 V AC) |
| Auxiliary Contacts | 1 Normally Open (1NO) |
| Standard | IEC/EN 60947-4-1 |
| Protection Class IP | IP20 |
| Operation Ambient Temperature | -25 / +60 °C |
| Dimensions (W x D x H) | 45 x 72 x 57.5 mm |
