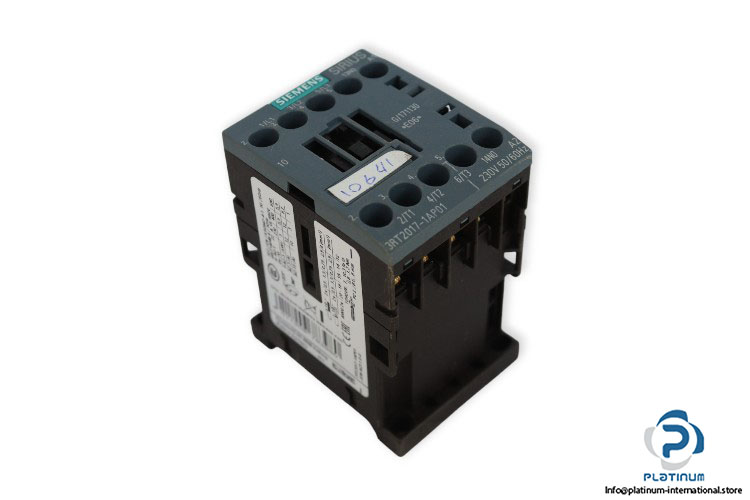

Siemens 3RT2017-1AP01 Contactor
신제품
재고 있음1 단위즉시 배송 가능
3RT2 접촉기
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacture: Siemens
Type: Contactor
MNR: 3RT2017-1AP01
Product brand name: SIRIUS
Product designation: 3RT2 contactor
Size of contactor: S00
Control supply voltage: 230 V AC
Frequency: 50/60 Hz
Rated insulation voltage Ui: 690 V
Operating voltage (AC-3) rated value maximum: 690 V
Operating current (AC-3): 12 A @ 400 V
Operating current (AC-15): 3 A @ 400 V
Rated current Ie (AC-1): 22 A @ 400 V
Contact: 1 Normally open contact
Operating power@400 V (P AC-3): 5.5 kW
Operating temperature: -25 … 60°C
Protection class: IP20
Degree of pollution: 3
No. of poles: 4
Type of electrical connection: screw-type terminals
Dimensions: 58 x 45 x 73 mm
