Siemens 3RT2017-2AF01 Power Contactor
재고 있음1 단위즉시 배송 가능
Power Contactor
The Siemens 3RT2017-2AF01 SIRIUS contactor features 3 NO contacts, 110V AC coil, and supports 5.5 kW at 400V, with compact S00 size and IP20 protection.
방대한 재고
글로벌 배송
전문 지원
품질 보장

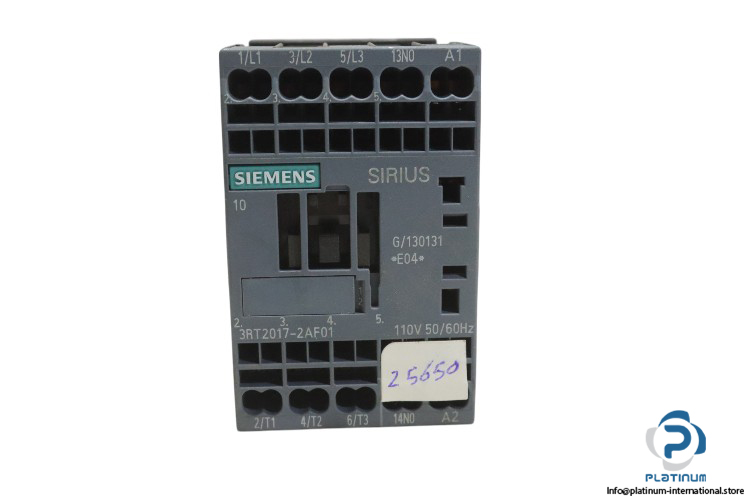

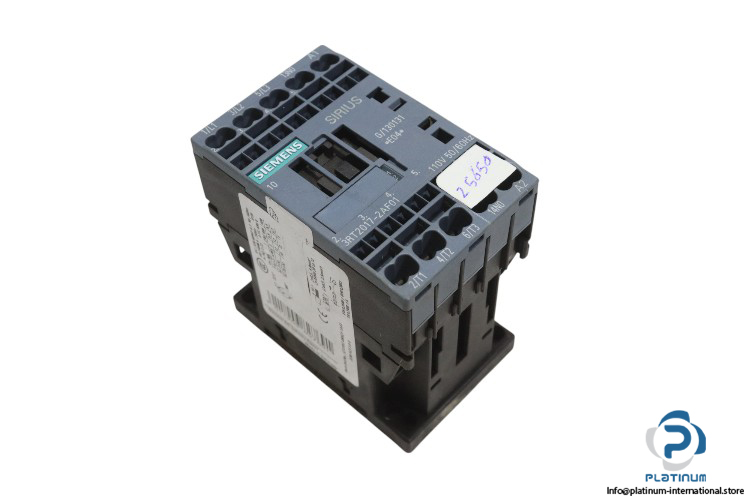

Siemens 3RT2017-2AF01 SIRIUS Power Contactor
The Siemens 3RT2017-2AF01 is a SIRIUS series S00 size power contactor designed for efficient and compact motor control. With a 110V AC coil and IP20 protection, it delivers reliable switching for up to 5.5 kW operating power at 400 V.
Manufacturer: Siemens
Type: Power Contactor
Model: 3RT2017-2AF01
Power Loss:
| Product Brand Name | SIRIUS |
| Contactor Size | S00 |
| Rated Voltage | 110V AC |
| Operational Current at AC-3 (400 V) | 12 A |
| Insulation Voltage | 690 V |
| Number of Poles | 3-Pole |
| Contact Configuration | 3 Normally Open (NO) |
| At AC in hot operating state | 1.5 W |
| Per pole | 0.5 W |
| Operating Power at 400 V | 5.5 kW |
| Degree of Protection | IP20 |
| Ambient Temperature | -25 ... 60 °C |
