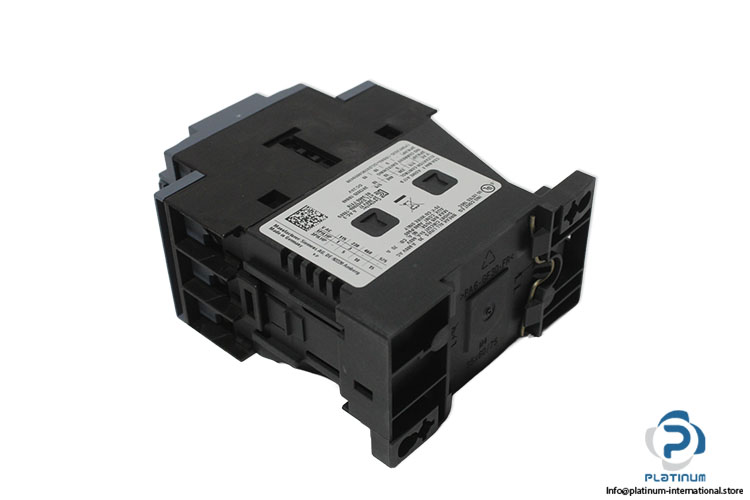

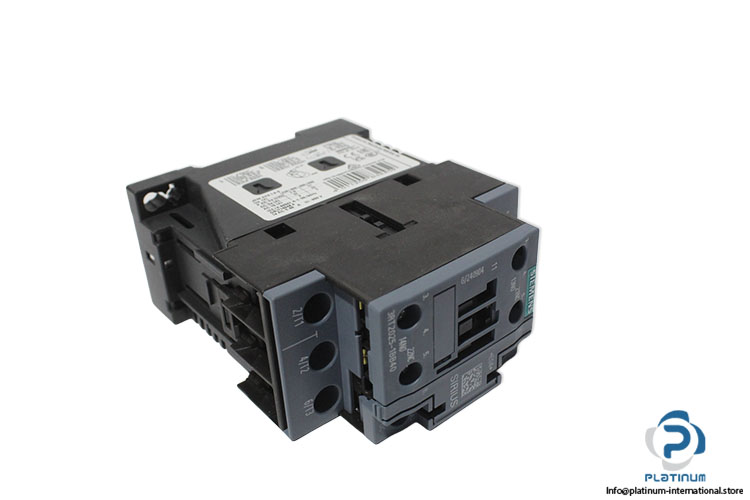

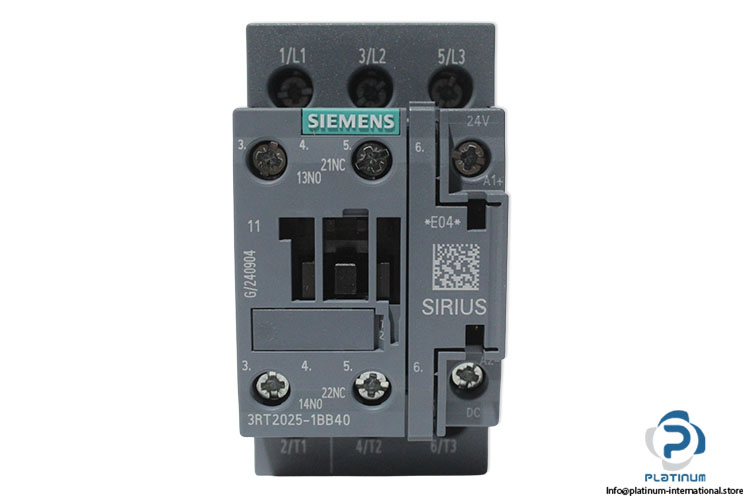

Siemens 3RT2025-1BB40 Power Contactor
신제품
재고 있음2 단위즉시 배송 가능
The Siemens 3RT2025-1BB40 Power Contactor is a 3-pole S0 contactor from the 3RT2 series, featuring a 17 A rated operational current, 24 V DC control supply, and 7.5 kW operating power at 400 V. Designed for reliable motor switching and industrial automation applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Code | 1P3RT2025-1BB40+SG/240904 |
| size | S0 |
| product type designation | 3RT2 |
| Rated insulation voltage (Ui) | 690V |
| surge voltage resistance | 6 kV |
| Rated operational current | 17 A |
| Control Supply Voltage | 24V DC |
| Frequency | 50 … 60 Hz |
| Contact | 1N/C + 1N/O |
| Rated Operating Power | ( AC-3: at 400V:7,5kw), (AC-3e: at 400V: 7,5kw) |
| No. of poles | 3 |
| Ambient temperature | -25 … 60 °C |
| Dimensions (W x D x H) | 85 x 45 x 107 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093500 |
| Weight | 0,6 |
